Chapter 5 25

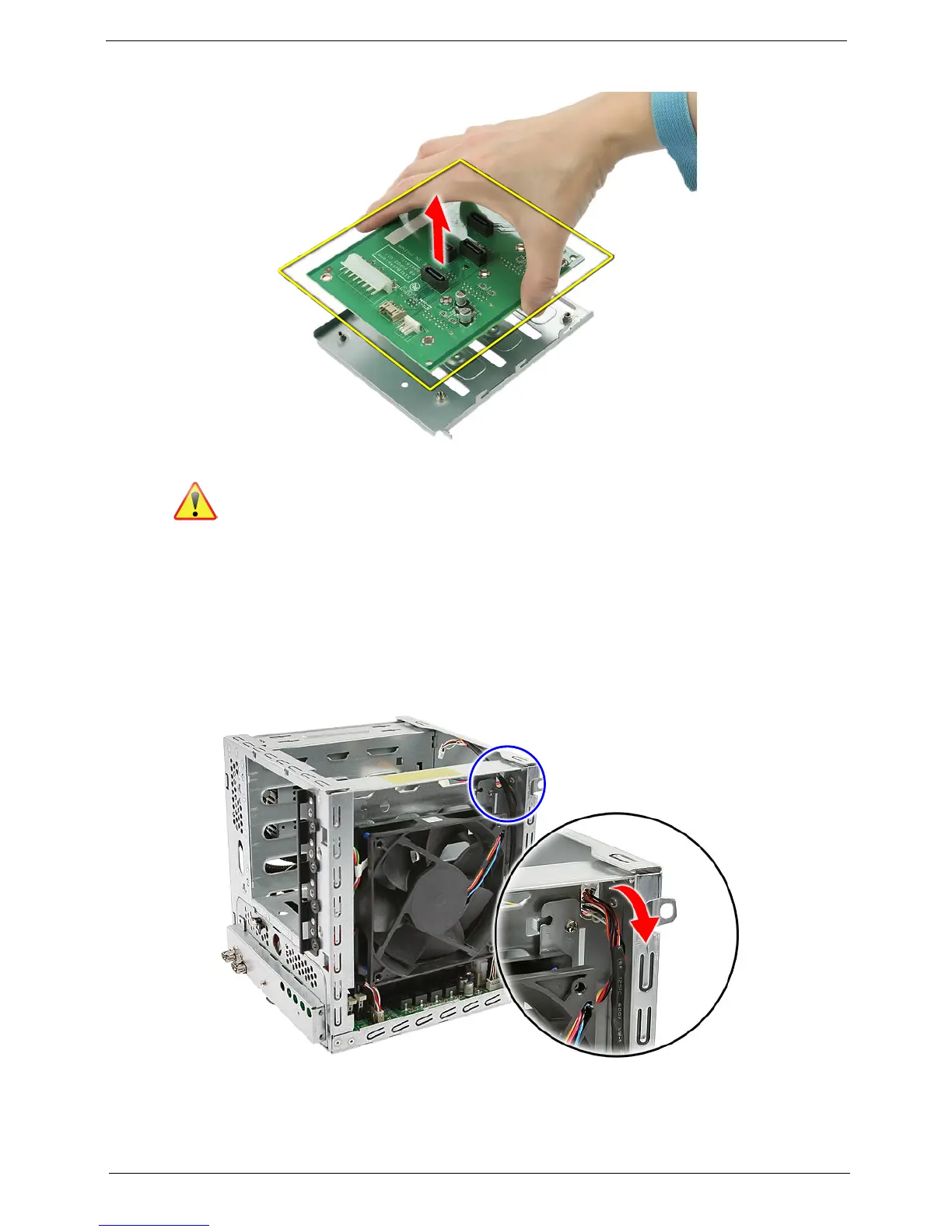

8. Lift the backplane board off the bracket.
Note:Circuit boards >10 cm2 has been highlighted with the yellow rectangle as above image
shows. Please detach the Circuit boards and follow local regulations for disposal.
Removing the Fan
1. See “Removing the Hard Disk” on page 18.
2. See “Removing the System Cover” on page 20.
3. See “Removing the Backplane Board” on page 22.
4. Pull the backplane board LED cable connector out through the chassis opening.
