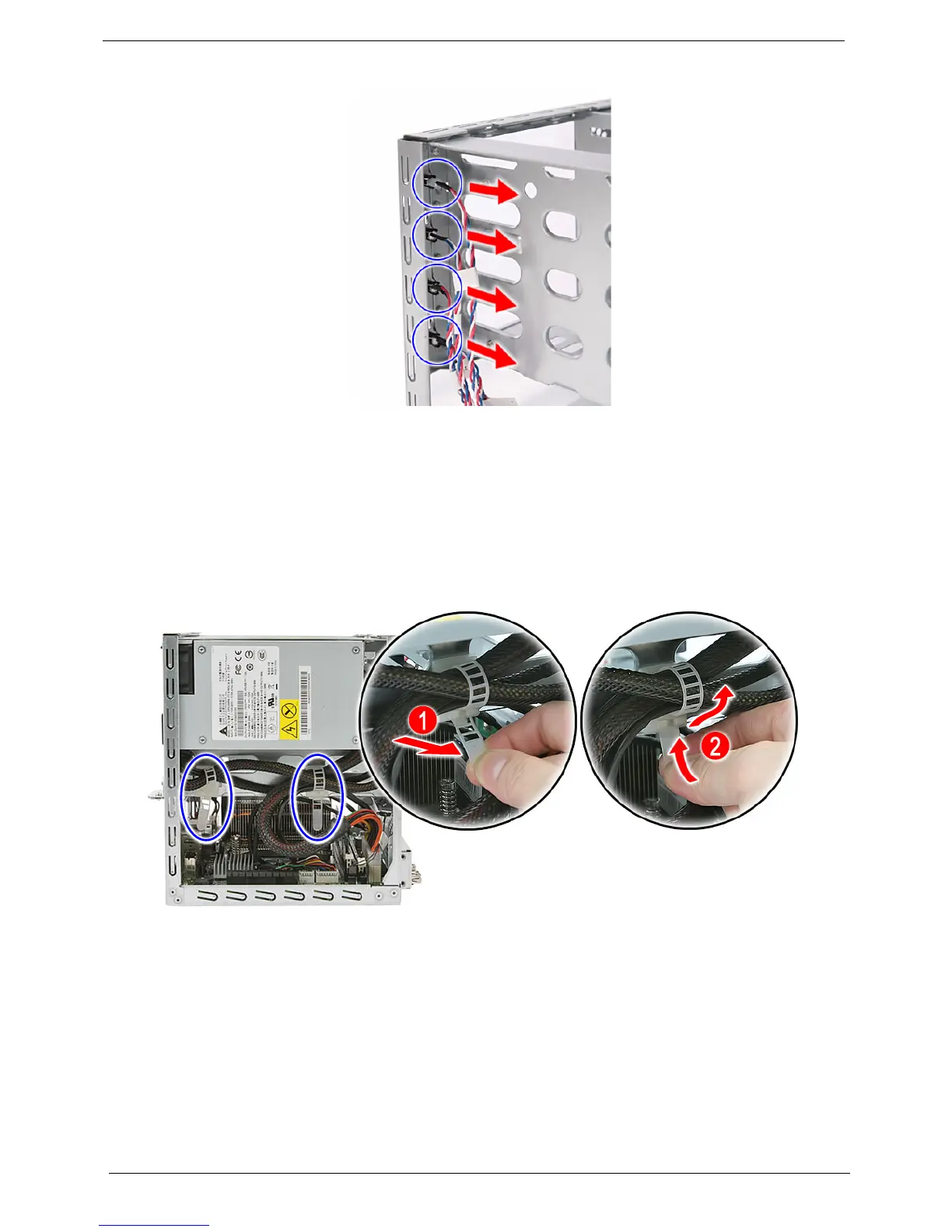

7. Carefully pull out the HDD access LED cables, then detach the cable module.
Removing the Power Supply
1. See “Removing the Hard Disk” on page 18.
2. See “Removing the System Cover” on page 20.
3. See “Removing the Backplane Board” on page 22.
4. Pull the cable tie to dislodge from the locking tab (1). Push the cable tie completely through the guide (2)
to release the power cables.
