Acer AC100 - Removing the HDD Access LED Cables

Chapter 5 27

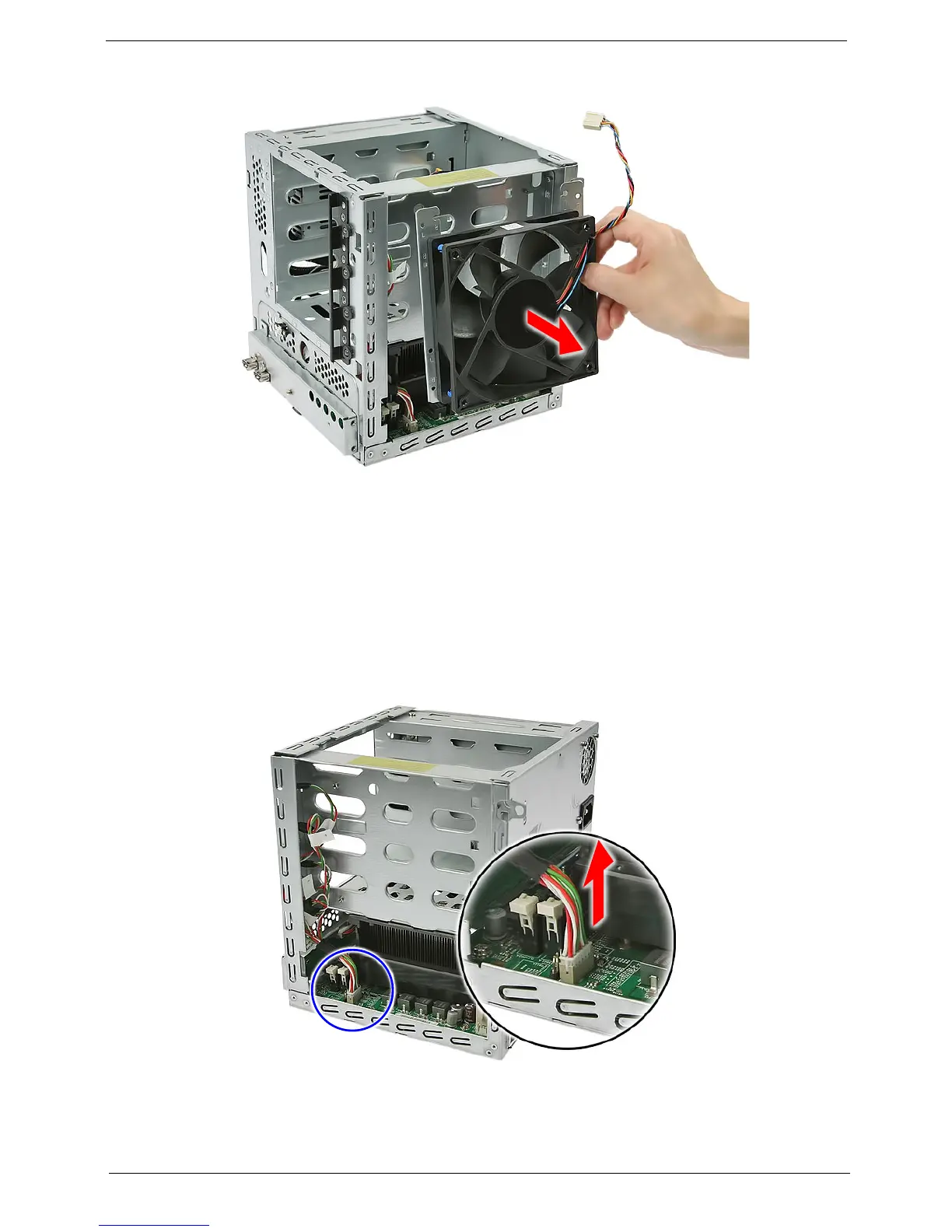

7. Remove the fan.
Removing the HDD Access LED cables
1. See “Removing the Hard Disk” on page 18.
2. See “Removing the System Cover” on page 20.
3. See “Removing the Front Bezel” on page 21.
4. See “Removing the Backplane Board” on page 22.
5. See “Removing the Fan” on page 25.
6. Disconnect the HDD access LED cable connector from its mainboard connector (CN2).
