Chapter 5 41

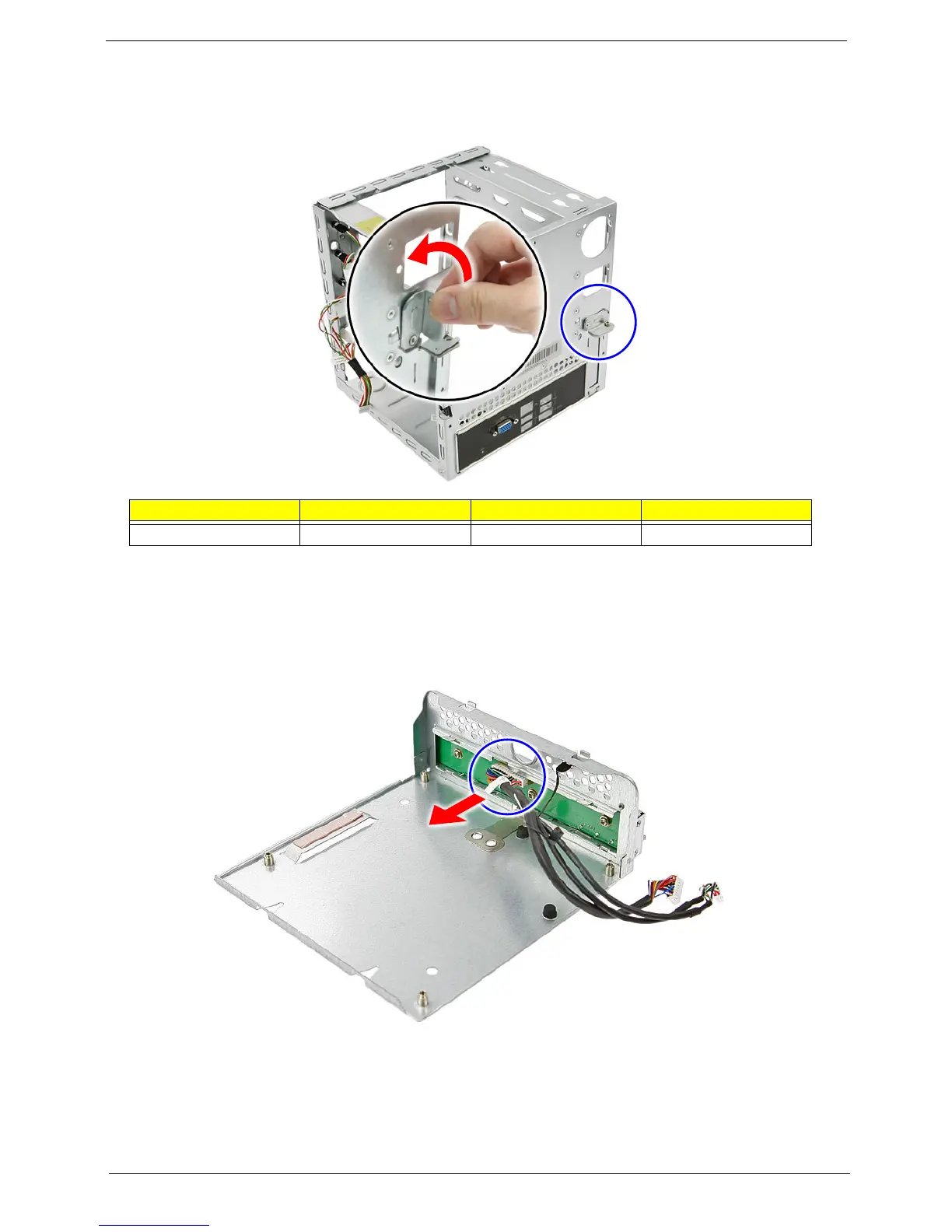

Removing the Expansion Slot Cover
1. Use a screwdriver to loosen the screw that secures the slot cover lock to the expansion card or slot cover.
Rotate the slot cover lock counterclockwise.
2. Remove the expansion card or slot cover.
Removing the Front I/O Board
1. See “Removing the Mainboard Tray” on page 32.
2. Disconnect the 26-pin cable connector from its front I/O board connector (CN1).
Screw (Quantity) Color Torque Part No.
M3-0.5*4 NI (1) Chrome 5.1 to 6.9 kgf-cm 86.1A524.4R0
To Next Page
