Chapter 1 3

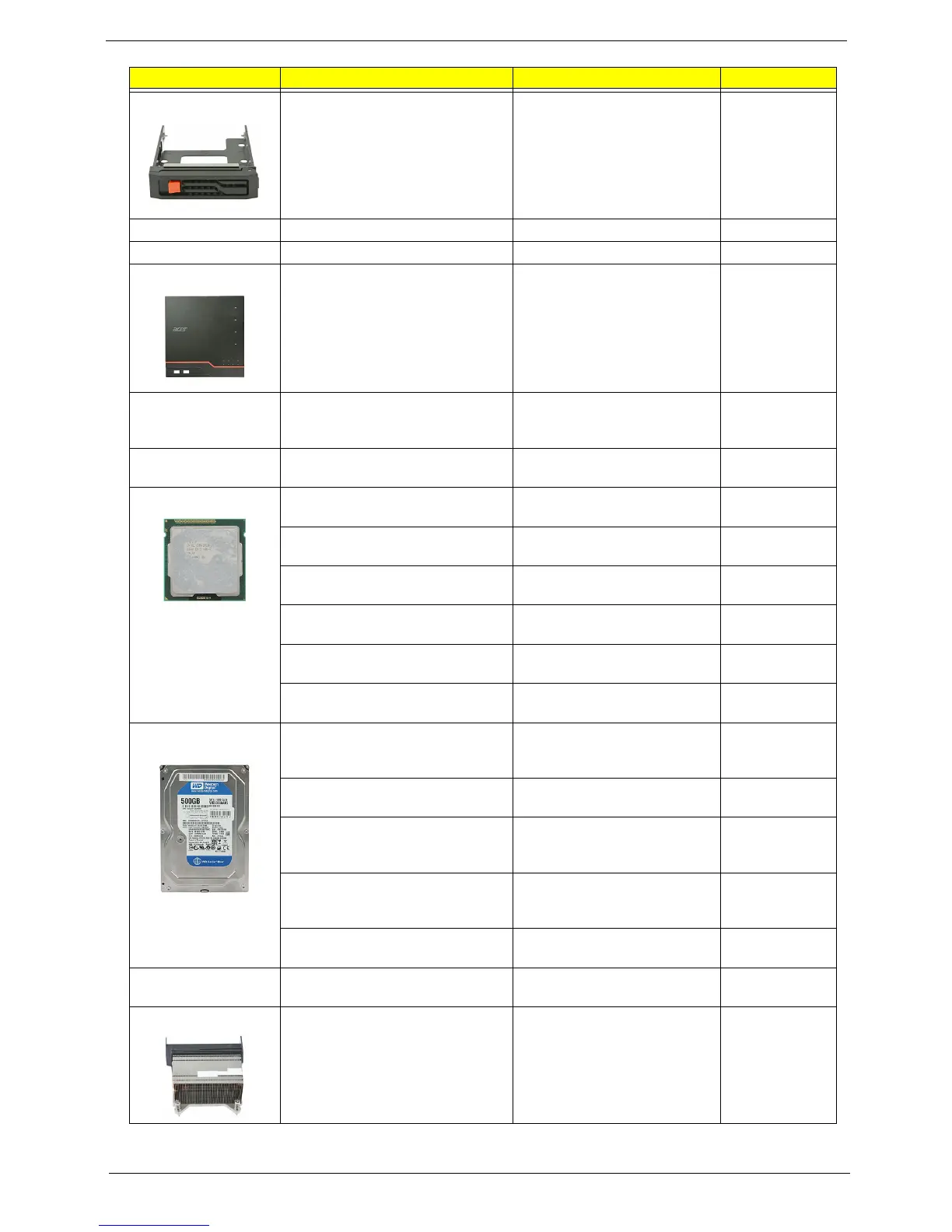

HDD CARRIER ASSY HDD CARRIER HT-361D 60.R7M01.002
HEATSINK BRACKET ASSY BACK-PLATE 1156 AVC 60.R7M01.001
FAN DUCT COVER CVR FAN DUCT A HT-361D 42.R7M01.001
FRONT BEZEL W/KEY ASSY AT BEZEL HT-361D 60.R7M01.004
HOUSING W/HDD LED CABLE &
FAN & POWER CABLE &
INSTRUSION CABLE & VGA CABLE
ASSY HOUSING HT-361D 60.R7M01.005
POWER SUPPLY SUPPORT
BRACKET
BRKT PSU SUPPORT HT-361 33.R3601.002
CPU/PROCESSOR CPU INTEL XEON E3-1260L 2.8M
45W 2.4G
IC CPU SANDY BRIDGE
BRANDED XEON E31260L
KC.12601.E3L
CPU INTEL CORE I3 2120 LGA 3M
1333 1155 65W 3.3G, DUAL CORE
IC CPU SANDY BRIDGE I3-2120
3MB 2C 3.3GH
KC.21201.CI3
CPU INTEL CORE I3 2100 LGA 3M
1333 1155 65W 3.1G, DUAL CORE
IC CPU SANDY BRIDGE I3-2100
3MB 2C 3.1GH
KC.21001.CI3
CPU INTEL PENTIUM DUAL-CORE
G850 LGA 3M 1333 1155 65W 2.9G
IC CPU G850 SANDY BRIDGE
3MB 2c FCLGA 2.
KC.85001.DEG
CPU INTEL PENTIUM DUAL-CORE
G840 LGA 2.8G 3M 1333 1155 65W
IC CPU INTEL PENTIUM DUAL-
CORE G840 LGA
KC.84001.DEG
CPU INTEL PENTIUM DUAL-CORE
G620 LGA 2.6G 3M 1066 1155 65W
IC CPU INTEL PENTIUM DUAL-
CORE G620 LGA
KC.62001.DEG
HDD/HARD DISK
DRIVE
HDD 1TB 7200RPM 3.5" SEAGATE
ST31000528AS(PHARAOH BP) SATA
II 32MB LF F/W:CC44
HDD 1TB 3.5" SEAGATE
ST31000528AS 7.2K
KH.01K01.013
HDD 1TB 7200RPM 3.5" SATA WD
1001FAES-22W7A0
HDD-WD 1TB 3.5" SATA 7.2K
ACER
KH.01K08.009
HDD 320G 7200RPM 3.5" SEAGATE
ST3320418AS( PHARAOH BP) SATA
II 16MB LF F/W:CC44
HDD 320GB 3.5" SEAGATE
ST3320418AS 7.2K
KH.32001.020
HDD 1.5TB 3.5" 7200RPM SATA
SEAGATE BRINKS ST31500341AS
32MB CC4H 7
HDD 1.5TB SGT ST31500341AS
7.2
KH.15K01.002
HDD 3.5" 500GB 7200RPM SATA WD
XL320M WD5000AAKS-22M9A0
HDD 500GB WD5000AAKS-
22V1A0
KH.50008.014
HEATSINK PCH HEATSINK ASSY PCH HSINK 18X26X35MM
AURORA
60.R7M01.006
CPU HEATSINK ASSY CPU HSINK 45X70X80MM
AURORA
60.R7M01.007
Category Part Name Description Acer Part No.
