Acer Aspire 4349 - USB Module Removal; USB Module Installation

3-16 Machine Maintenance Procedures
USB Module Removal 0
Prerequisite:
Base Assembly Removal
1. Find USB module on the base assembly as shown in Figure 3-11.
2. Remove one (1) screw (B) from the base assembly (Figure 3-11).

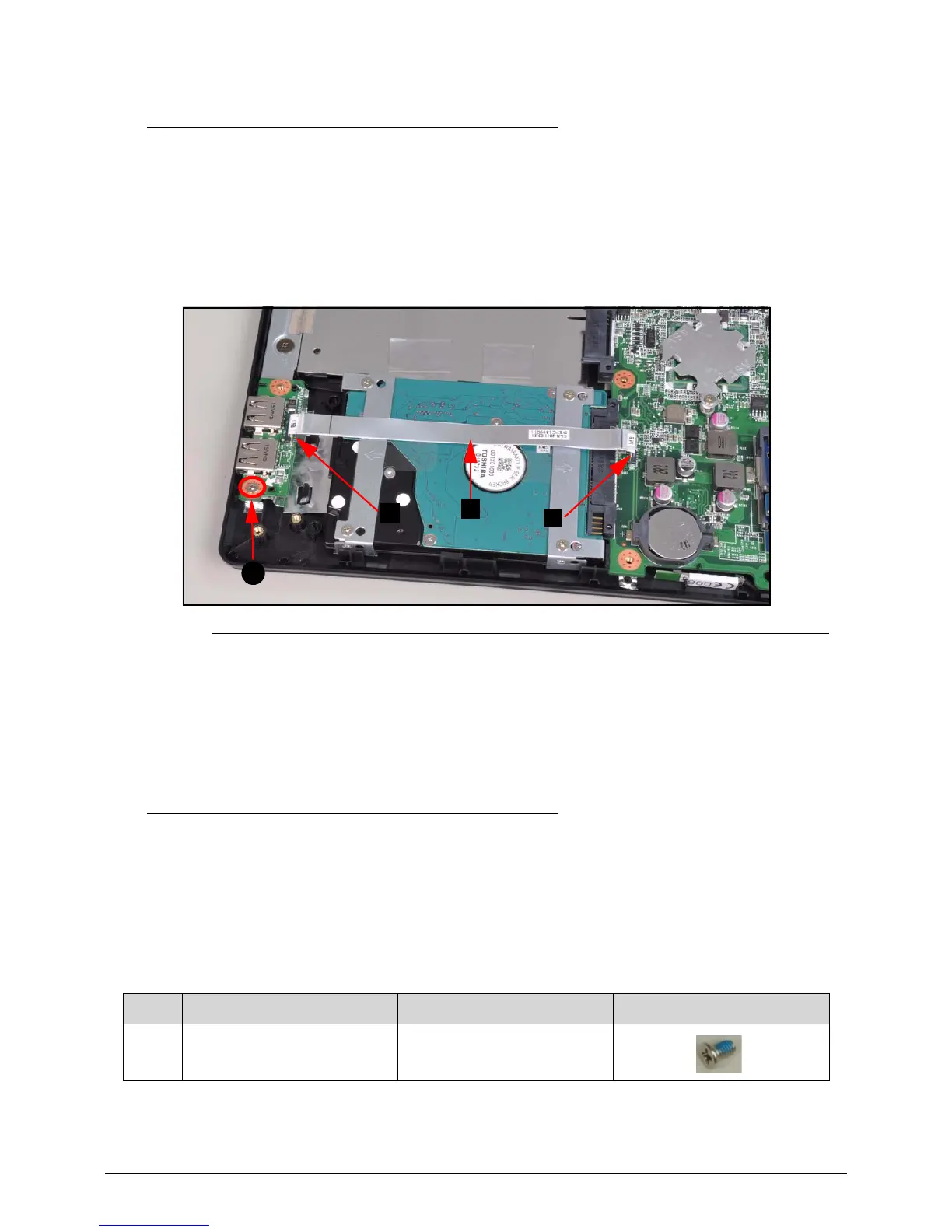

Figure 3-11. USB Module
3. Disconnect USB module FFC (D) from mainboard connector (E) (Figure 3-11).
4. Disconnect and remove USB module FFC (D) from USB module connector (C).
5. Remove USB module from the base assembly.
USB Module Installation 0
1. Install USB module (A) on the base assembly. Refer to Figure 3-11.
2. Connect USB module FFC (D) to USB module connector (C) (Figure 3-11).
3. Connect USB module FFC (D) to mainboard connector (E) (Figure 3-11).
4. Secure one (1) screw (B) to the USB module. Refer to Figure 3-11.
5. Install Base Assembly.
ID Size Quantity Screw Type
B M2.5*4.0 Ni 1
B
C
D
E
