3-10 Machine Maintenance Procedures
Keyboard Removal 0
Prerequisite:
Battery Pack Removal

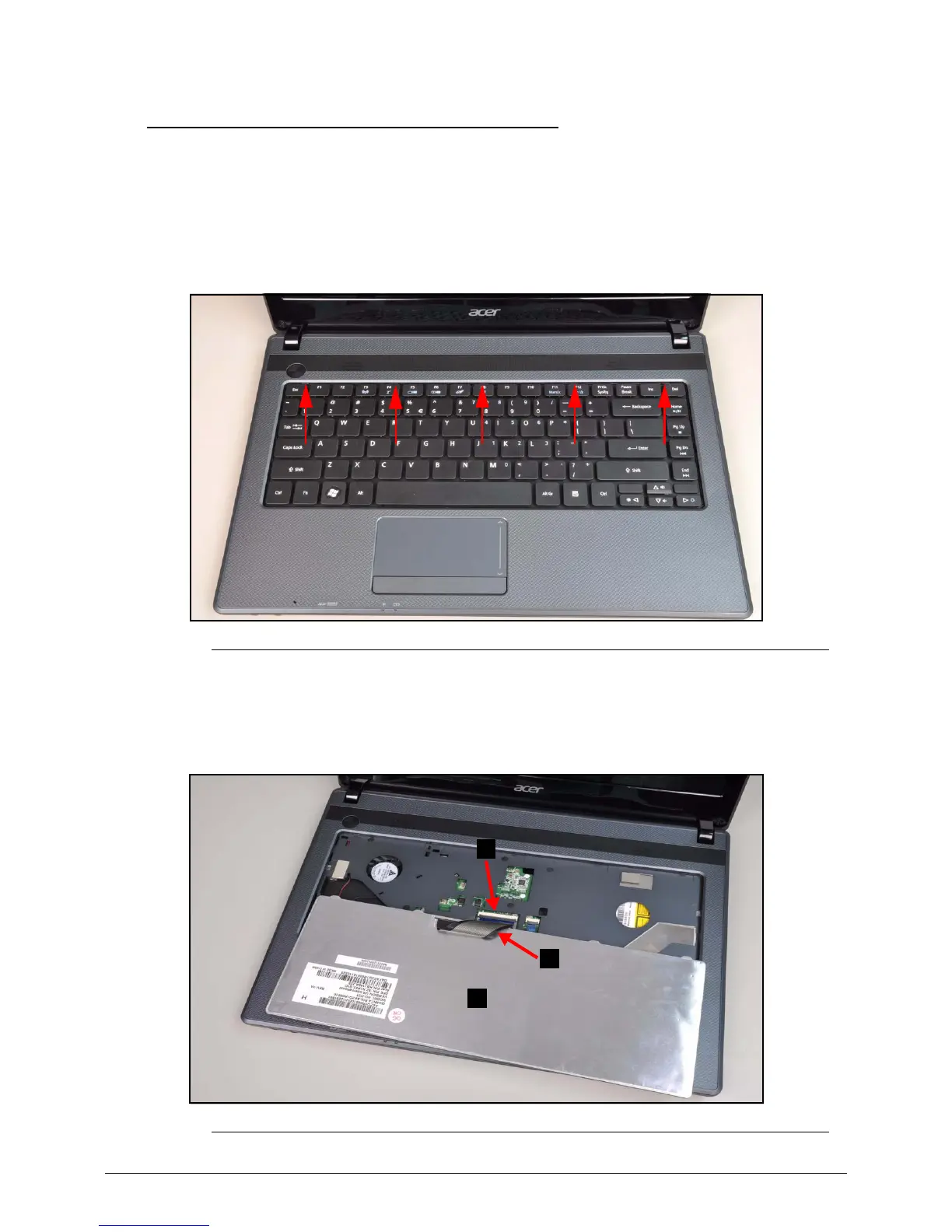

1. Press downward on the five (5) locking latches until the keyboard disengages and
separates from the system (Figure 3-5).
Figure 3-5. Keyboard Latches
2. Turn the keyboard over so that the keypoard (C) is face down on the palm rest
(Figure 3-6).
3. Disconnect keyboard FPC (A) from mainboard connector (B) (Figure 3-6).
Figure 3-6. Keyboard FPC
To Next Page
