Acer Aspire 8943G Series - Replacing the Mainboard

Chapter 3 125
Replacing the DC-In Cable Assembly

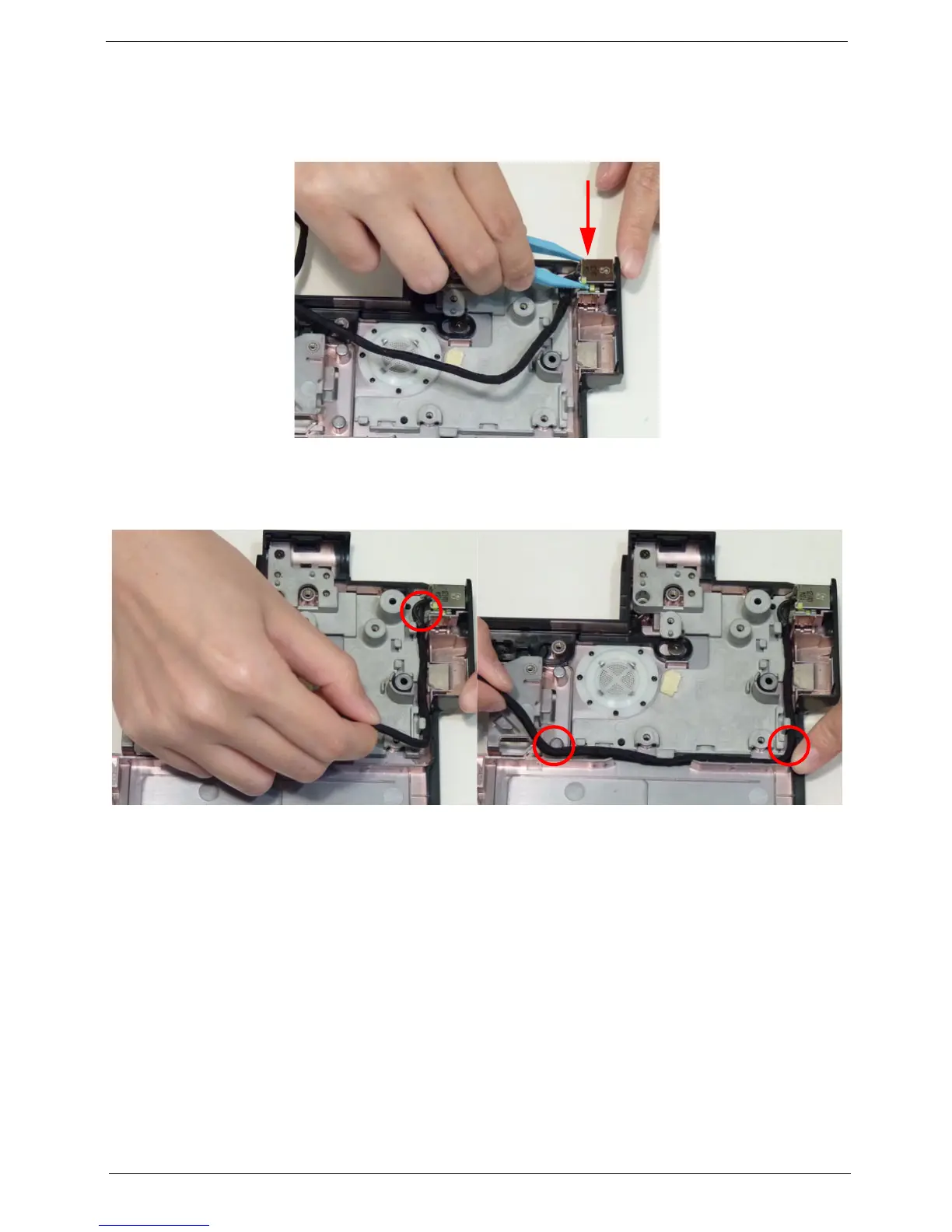

1. Place the DC-In port in the chassis.
IMPORTANT:Make sure the port is lined up with the lower cover to ensure proper functioning.
2. Run the DC-In cable along the cable channel as shown.
IMPORTANT:Make sure the cable is secured in all cable clips and around all retention guides for proper
installation.
