Acer Aspire 8943G Series - LCD Assembly

194 Chapter 6

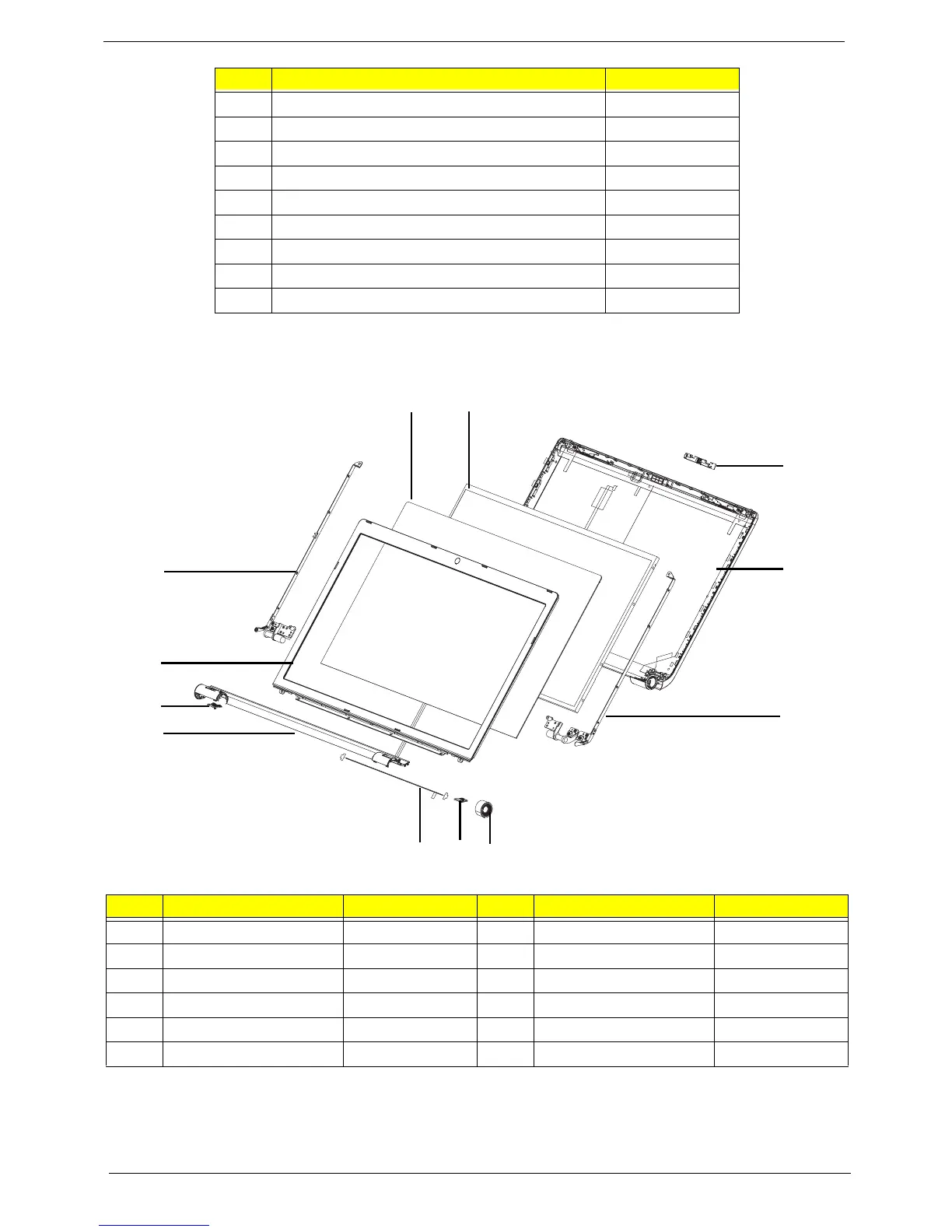

LCD Assembly
4 2nd HDD Cover
42.PWC07.001
5 Logic Lower Cover
42.PWC07.002
6 Keyboard Frame
60.PWC07.001
7 Keyboard
KB.I170A.179
8 Upper Cover
60.PWC07.002
9 Battery
BT.00805.015
10 LAN Board
55.PWC07.005
11 ODD
6M.PWC07.006
12 HDD
KH.32001.017
Item Description Part Number Item Description Part Number
1 Glass Hinge (L)
33.PWC07.004
7 Glass Hinge (R)
33.PWC07.005
2 LCD Bezel
60.PWC07.005
8Glass
3 LED Board Assy
55.PWC07.007
9 LCD Panel
6M.PU207.001
4 LCD Bezel Cap Sub Assy
60.PWC07.006
10 Microphone Cable
5 Web Camera Board
AM.21400.068
11 Power Board Assy
55.PWC07.006
6 LCD Cover
60.PWC07.004
12 Hinge Cap (R)
Item Description Part Number
1
2
3
4
5
6
7
89
10 11 12
