Chapter 3 75

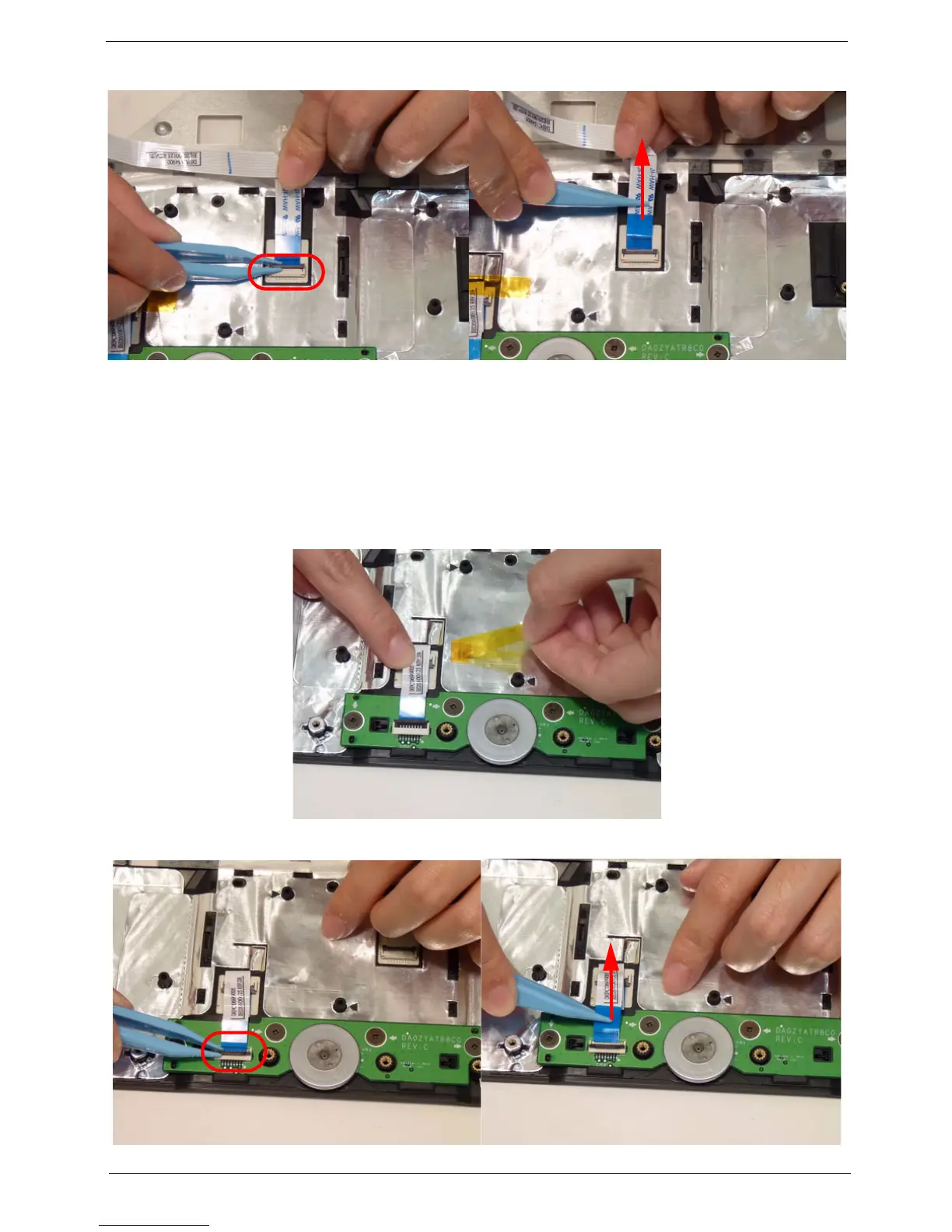

5. Unlock the connector and disconnect the cable.
Removing the Touchpad Module
IMPORTANT:It is not possible to remove the touchpad individually. If the touchpad malfunctions, follow the
disassembly steps to remove any additional components on the upper cover and replace the entire
upper cover.
1. See “Removing the Upper Cover and LCD Module” on page 66.
2. Peel back the adhesive tape securing the touchpad board cable.
3. Unlock the connector and disconnect the cable.
To Next Page
