Acer Aspire 8943G Series - Jumper and Connector Locations; Mainboard Top View

Chapter 5 189
Jumper and Connector Locations

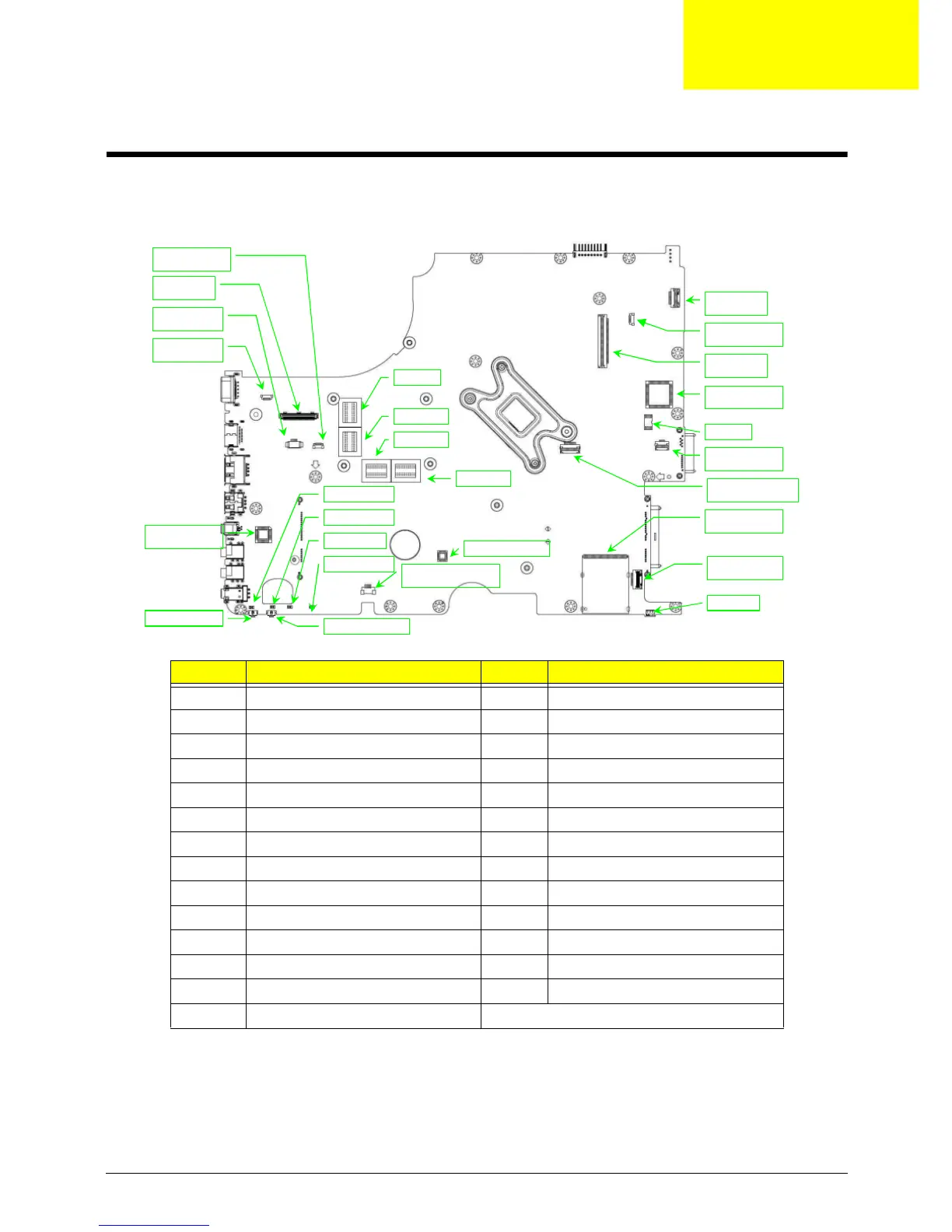

Mainboard Top View
Item Description Item Description
CN4 LED board connector CN7 Touchpad connector
CN8 Microphone connector CN11 Card reader connector
CN5 LCD connector CN10 USB board connector
CN6 Bluetooth connector CN30 CIR
U8 VRAM U20 Clock Generator
U13 VRAM CN12 Surround speaker connector
U16 VRAM SW3 Backup swtich
U17 VRAM SW2 WLAN switch
CN1 LAN board connector U19 Audio Codec ALC669X
CN2 Power board connector LED1 WLAN LED
CN3 Keyboard connector LED2 Back up LED
U5 EC UNVOTON NPCE781 LED3 HDD LED
U10 BIOS LED4 Power LED
CN9 Fingerprinter connector
CN2
:
Power board
connector
U
19
:
Audio Codec
ALC669X
SW2: WLAN Switch
SW3: Backup Switch
CN
1
2
:
Surround Speaker
connector
CN7
:
Touch Pad board
connector
U20: Clock Generator
CN9
:
Finger printer
connector
CN3
:
Keyboard
connector
CN1
:
Lan board
connector
U5
:
EC
UNVOTON
NPCE781
U10: BIOS
CN11
:
Card Reader
connector
CN
10
:
USB board
connector
CN30: CIR
LED1: WLAN led
LED2: Backup led
LED3: HDD led
LED4: Power led
U8: VRAM
U13: VRAM
U16: VRAM
U17: VRAM
CN4
:
LE
D board
connector
CN8
:
MIC
connector
CN5
:
LCD
connector
CN6
:
Bule Tooth
connector
