66 Chapter 3

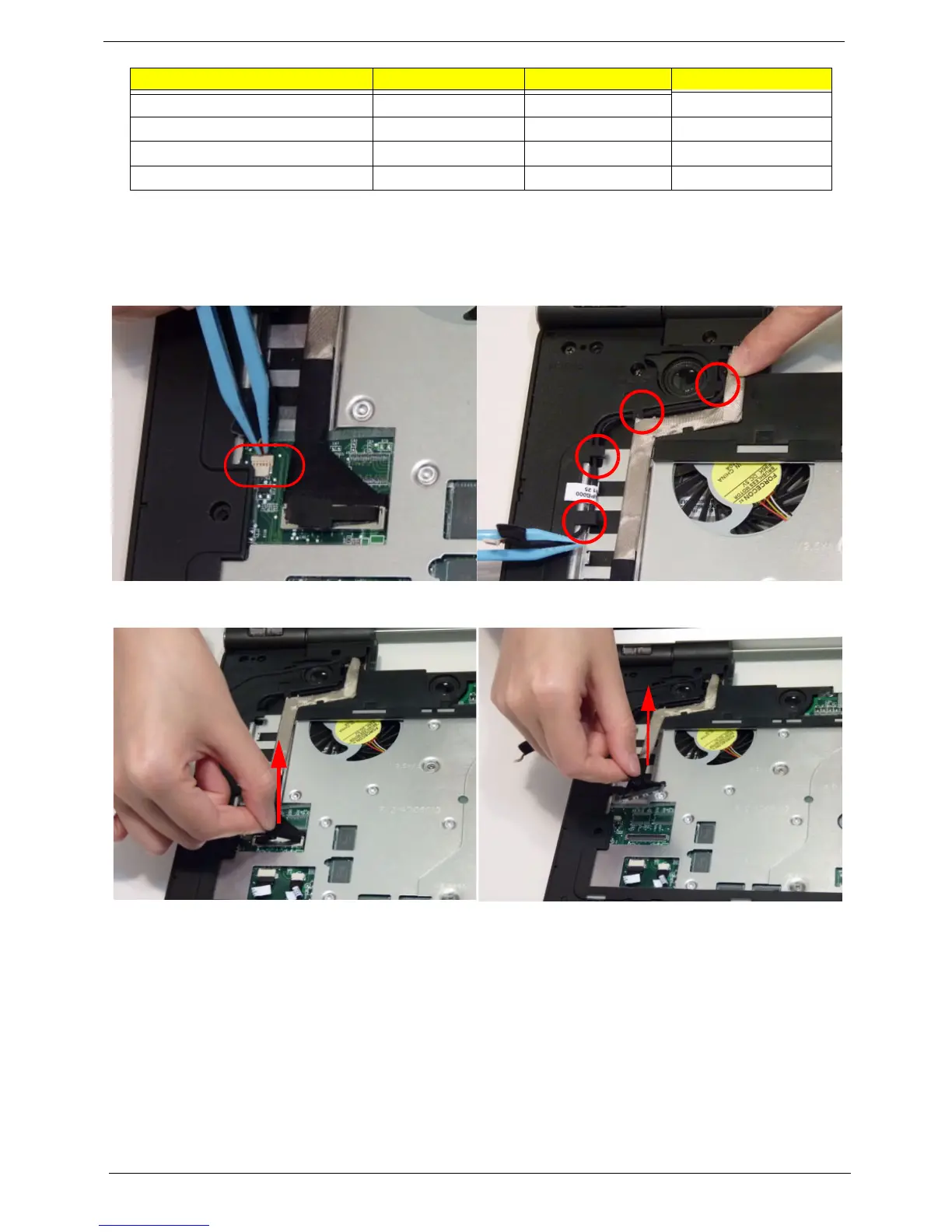

Removing the Upper Cover and LCD Module
1. See “Removing the Keyboard” on page 63.
2. Disconnect the power board cable and free it from the securing clips.
3. Pull up on the LVDS cable to release it from the connector.
Thermal Module M2.5*4 5 86.PWL02.010
Back Speaker Disassembly M2.5*4 1 86.PWL02.010
Subwoofer Disassembly M2.5*4 2 86.PWL02.010
Front Speaker Disassembly M2.5*4 4 86.PWL02.010
Step Screw Quantity Part No.
To Next Page
