Chapter 3 65
Main Unit Disassembly Process
IMPORTANT: Cable paths and positioning may not represent the actual model. During the removal and
replacement of components, ensure all available cable channels and clips are used and that the cables are
replaced in the same position.
NOTE: The product previews seen in the disassembly procedures may not represent the final product color or
configuration.

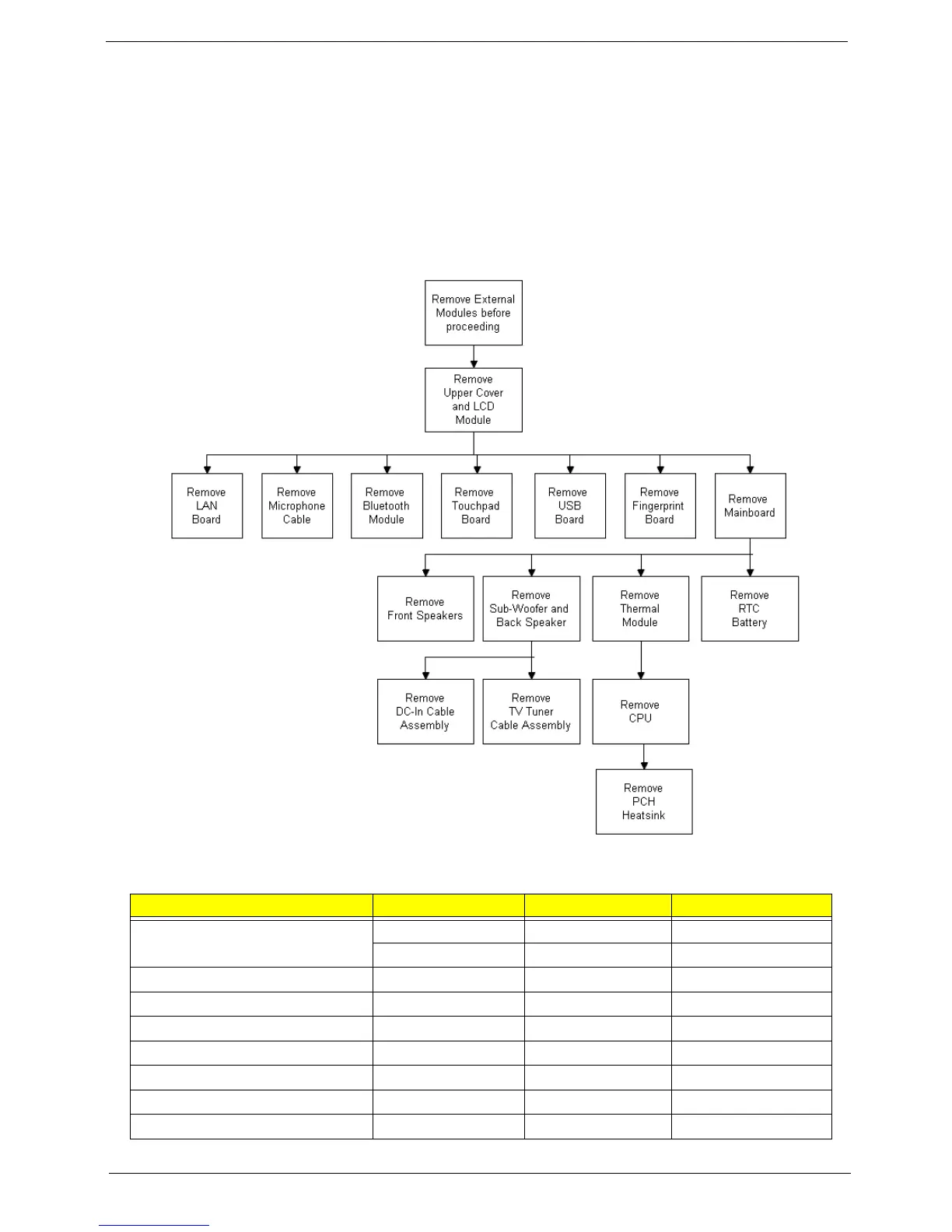

Main Unit Disassembly Flowchart
Main Unit Screw List
Step Screw Quantity Part No.
Upper Cover Disassembly M2.5*4 7 86.PWL02.010
M2.5*6 6 86.PWL02.003
Microphone Set Disassembly M2*3 1 86.PWL02.002
Bluetooth Module Disassembly M2*3 1 86.PWL02.002
Touchpad Board Disassembly M2-0.4*2 4 TBD
Finger Print Module Disassembly M2*3 1 86.PWL02.002
LAN Module Disassembly M2.5*6 1 86.PWL02.003
USB Module Disassembly M2.5*6 1 86.PWL02.003
Mainboard Disassembly M2.5*6 2 86.PWL02.003
