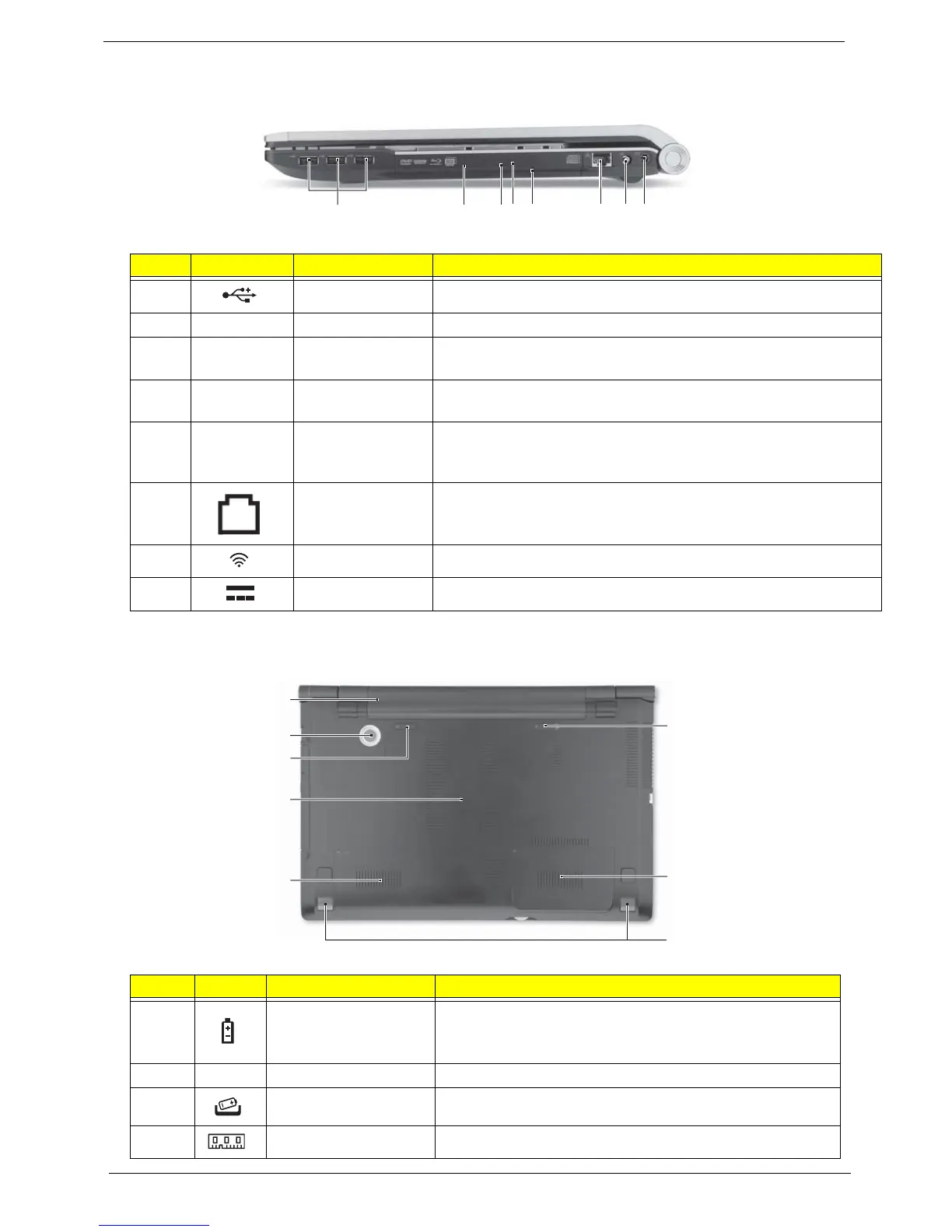

Acer Aspire 8943G Series - Right View; Base View

10 Chapter 1
Right View
Base View
# Icon Item Description
1
USB 2.0 port Connects to USB 2.0 devices (e.g., USB mouse, USB camera).
2 Optical drive Internal optical drive; accepts CDs or DVDs.
3
Optical disk
access indicator
Lights up when the optical drive is active.
4
Optical drive
eject button
Ejects the optical disk from the drive.
5
Emergency eject
hole
Ejects the optical drive tray when the computer is turned off.Note:
Insert a paper clip to the emergency eject hole to eject the optical
drive tray when the computer is off.
6
Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-based network.
7
RF-in port Accepts input signals from digital TV-tuner devices.
8
DC-in jack Connects to an AC adapter.
# Icon Item Description
1
Battery bay Houses the computer’s battery pack.
Note: The battery shown is for reference only. Your PC may
have a different battery depending on the model purchased.
2 Subwoofer Emits low frequency sound output.
3
Battery release latch Releases the battery for removal.
4
Memory compartment Houses the computer’s main memory.
2135678
4
1
2
3
4
5
7
8
6
