Acer Aspire Z1620 - VGA Module Removal; VGA Module Installation

91
VGA Module Removal
Prerequisite:
WLAN Module Removal
Camera Module Removal
1. Disconnect VGA cable (B) from mainboard connector (D). (Figure 3-40)
2. Disconnect VGA cable (B) from VGA module connector (F).
3. Remove cable (B) from guide (C) on EMI SIDE.
4. Remove screws (E) from main frame.
5. Remove VGA module (A) from mainboard.

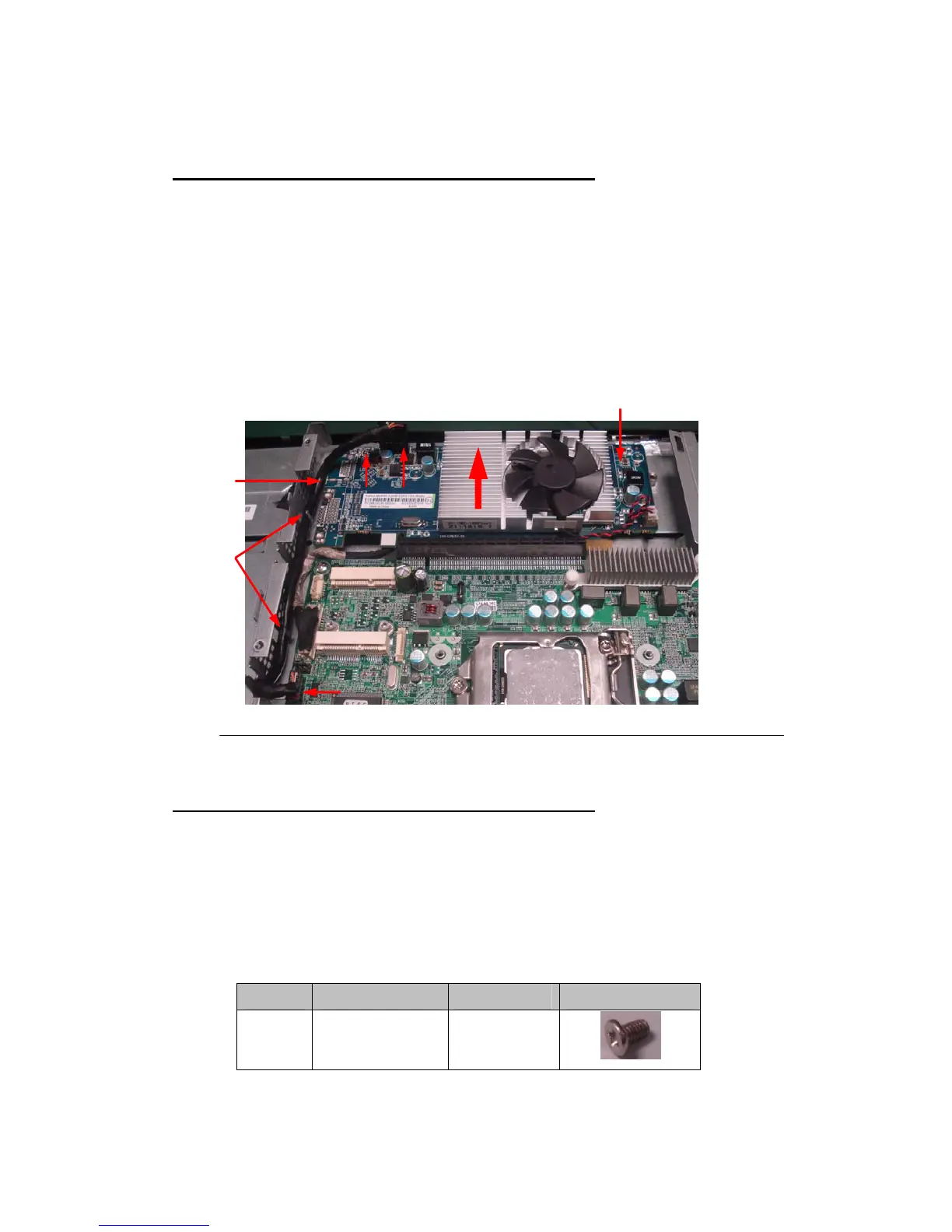

Figure 3-40. Remove VGA module from mainboard
VGA Module Installation
1. Install VGA module (A) to mainboard. (Figure 3-40)
2. Install and secure screw (E) to main frame.
3. Connect VGA cable (B) to VGA module connector (F).
4. Connect VGA cable (B) to mainboard connector (D).
5. Secure VGA cable (B) to guide (C) on EMI side.
6. Install camera module.
ID Size Quantity Screw Type
E M2.5x4 1
A
B
C
D
E
F
