ODD Module Installation
1. Install ODD slim bracket (H) to ODD module. (Figure 3-10)
2. Install and secure screws (I) from ODD slim bracket to ODD module.
3. Install ODD bezel (G) to ODD tray (E). (Figure 3-9)
4. Install and secure latch (F) to tray.
5. Install ODD tray (E) into ODD module.
6. Install ODD module in ODD slot (D) on rear cover. (Figure 3-7)
7. Install and secure screw (C) to rear cover.
8. Install rear ODD hole cover.

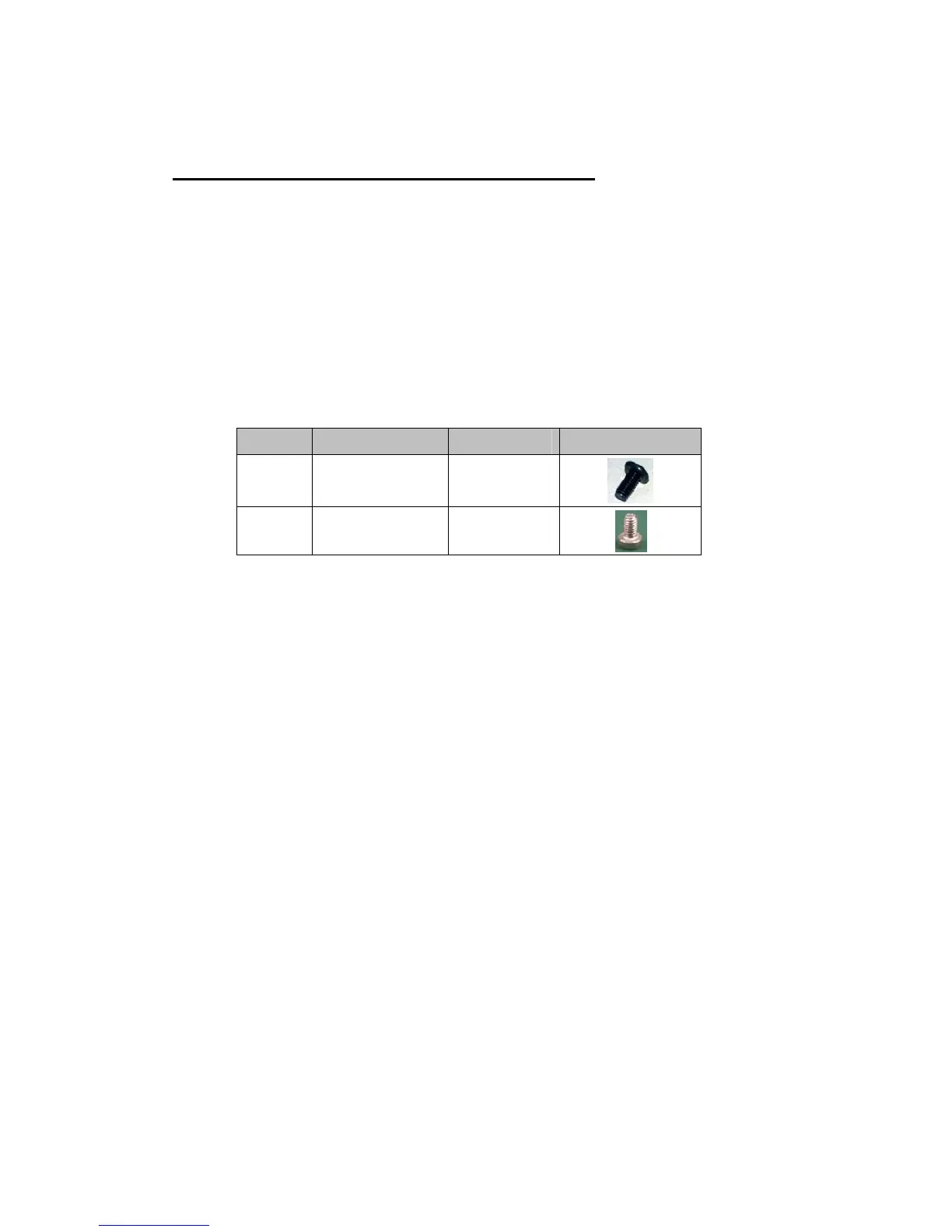

ID Size Quantity Screw Type
C M3.0x6.0 1
I M2.0x4.0 2
