The connection of ACOM 04AT or 06AT tuner will make accessible specific features on the amplifier display that
provide a transparent operation by following frequency and antenna selection changes in less than 50 ms.

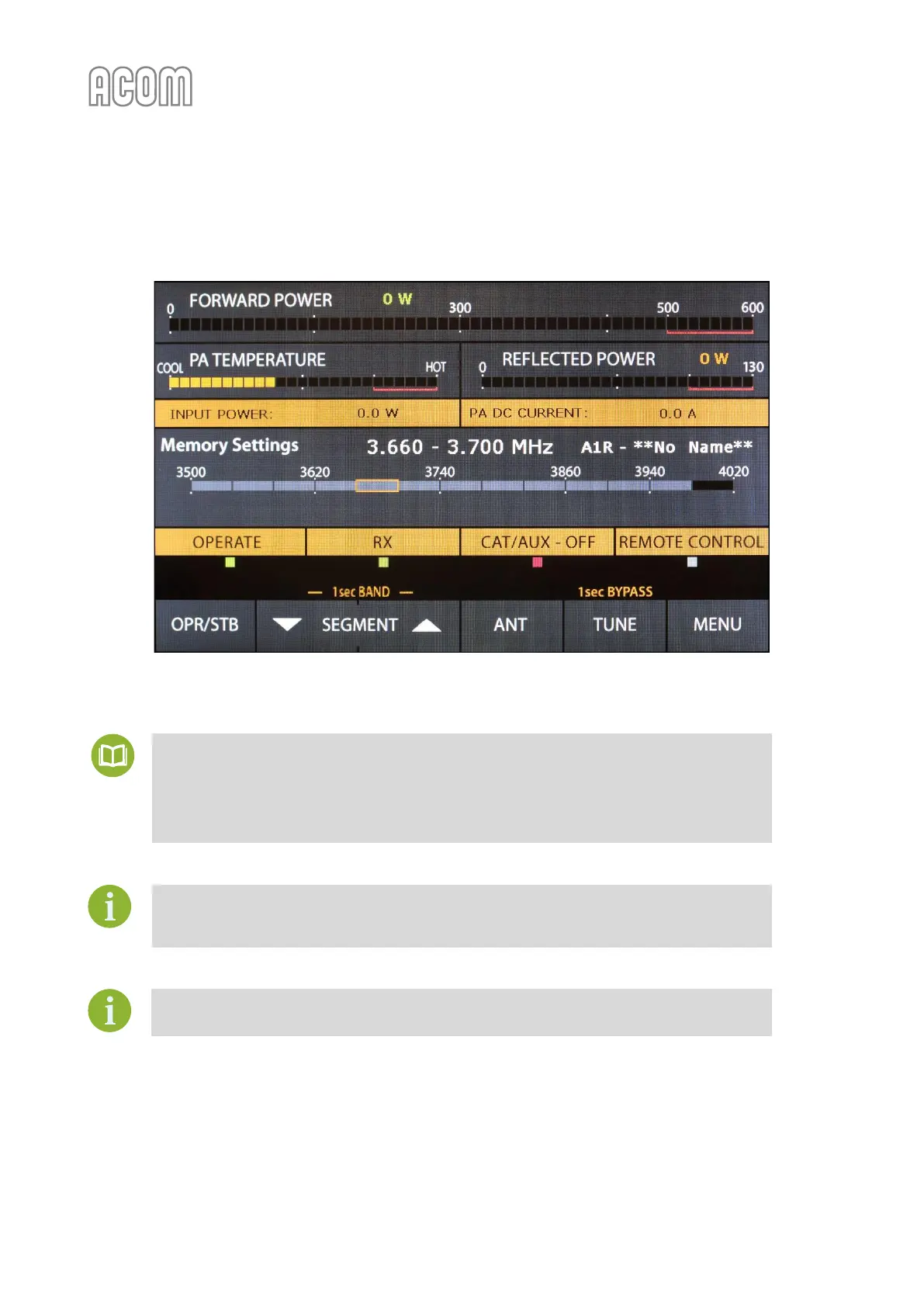

Figure 4-3 | ACOM 500S amplifier screen with ACOM 04AT or 06AT antenna tuner installed
Figure 4-3 | ACOM 500S amplifier screen with ACOM 04AT or 06AT antenna tuner installed
The operation of ACOM S-series amplifiers (solid-state devices) with ACOM 04AT and
06AT are described in detail in the respective User's Manual:
• ACOM 04AT User's Manual;
• ACOM 06AT User's Manual.
The documentation is available for download at www.acom-bg.com.
Pay particular attention to Sections 3.2 Indications, controls and menus, and 4.2 Tuner
Assignment and Unassignment in the downloaded manual for details on ACOM 04AT or
06AT control from amplifier front panel.
Use of other non-ACOM antenna tuners is possible at RF OUTPUT 2 only.
