Use the SELECT and SELECT buttons (left or right arrows) to select the character position. The ITEM
and ITEM buttons (up and down arrows) change the characters.
Finish by moving the pointer out of the editable fields by means of the SELECT (left arrow) button.
e) OPERATE ACCESS
When locked, the amplifier remains in STANDBY and cannot be switched to OPERATE unless unlocked in the
same menu. Passwords are not used - this is only a simple protection against possible child actions, or
involuntary switching to OPERATE mode. While locked, an attempt for entering OPERATE mode will result in
a message:
"OPERATE MODE IS LOCKED"
The other preference items do not need explanation.
5.5. Menu FAULTS LOG
This function reads on the screen the information stored in the amplifier nonvolatile memory about the last
28 HARD FAULT protection trips (see Figure 5-6 | Menu FAULTS LOG). By pushing the FILE button, the
information may be also downloaded in a plain-text format file through the RS-232 port and a computer using
a standard terminal emulating program (TTY). The RS-232 protocol settings are: 9600, 8 N 1.
Please, see Section 7.4 Using the Fault Codes (signatures) for Diagnostics.

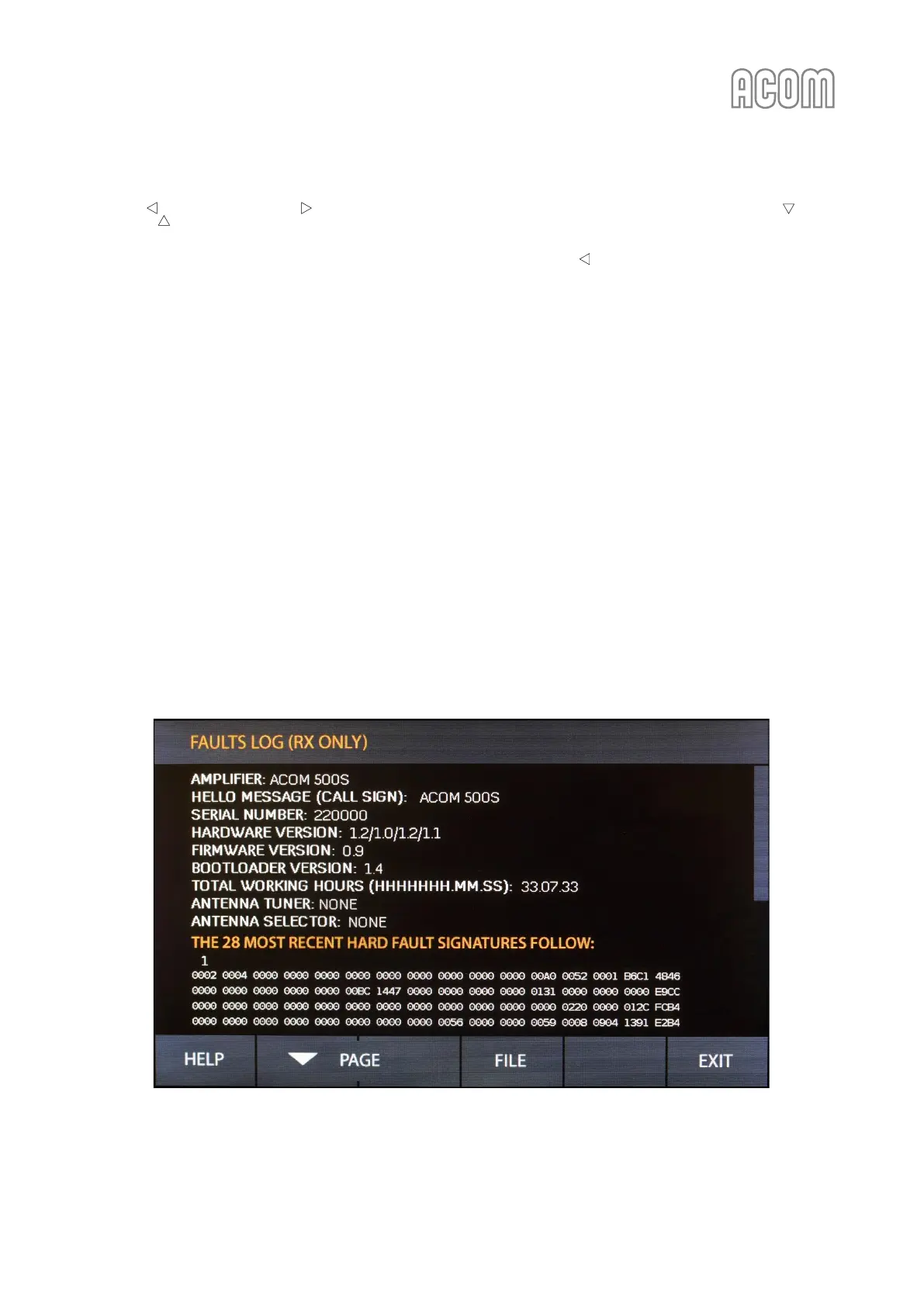

Figure 5-6 | Menu FAULTS LOG
Figure 5-6 | Menu FAULTS LOG
