5.1. Menu AMP MEASURE (Amplifier Measurements)
The menu AMP MEASURE (see Figure 5-2 | Menu AMP MEASURE) is accessible from the MENU SELECTION
screen (see Figure 5-1 | MENU SELECTION) in all modes. Here you can constantly monitor the values of 11
parameters.
Two identical lists appear on the left and the right halves of the screen, each one containing the same 11
values.
Any value can be selected in each screen half. Using buttons ITEM and ITEM (up and down arrows) select
the desired values. The two selected values will appear also on the basic screen continuously (see Figure 3-2
| Basic screen, Pos (b)) - after leaving this menu (EXIT button).

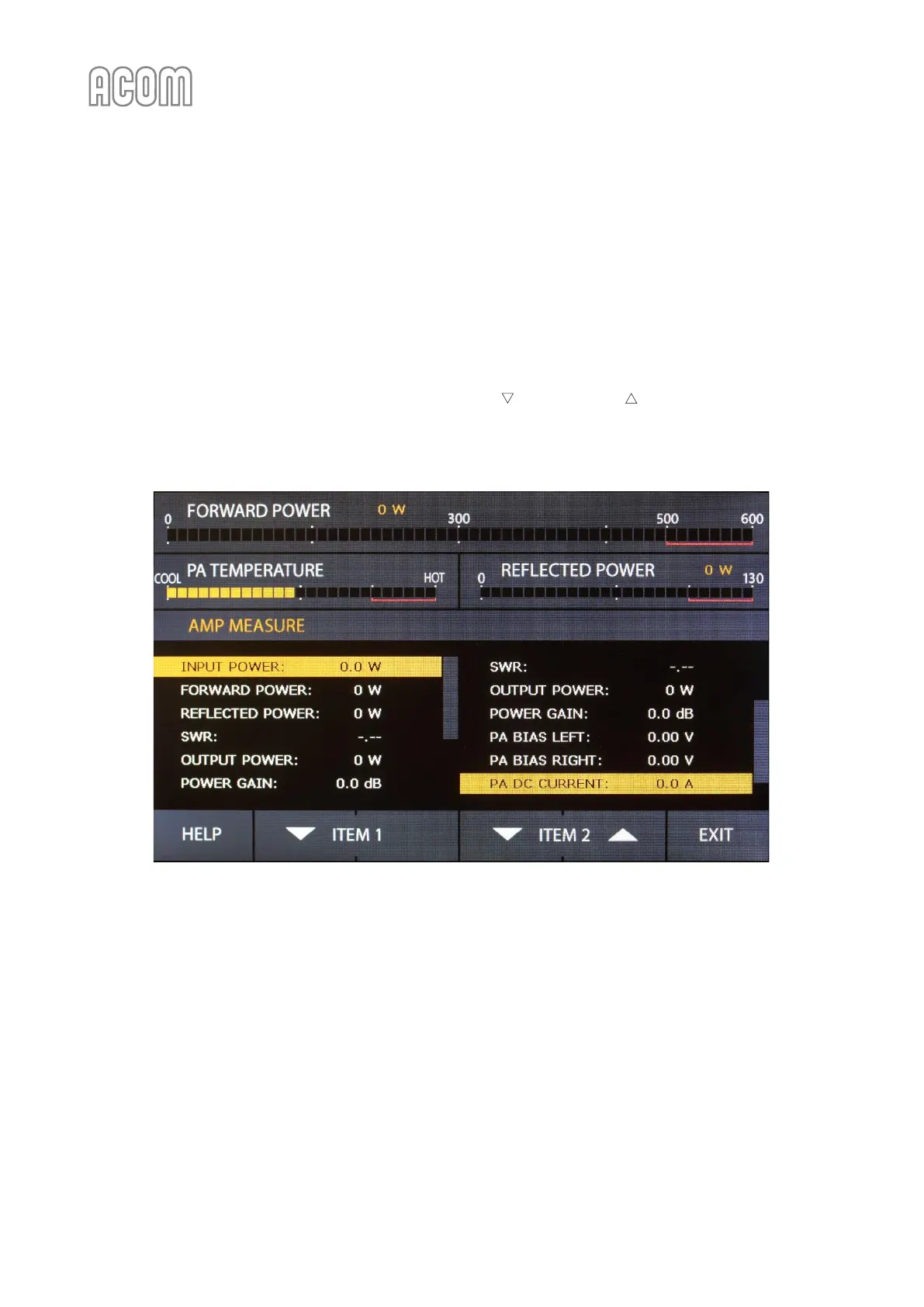

Figure 5-2 | Menu AMP MEASURE
Figure 5-2 | Menu AMP MEASURE
