Acorn A3010

Appendix D: Hardware components and connectors
The back of the computer

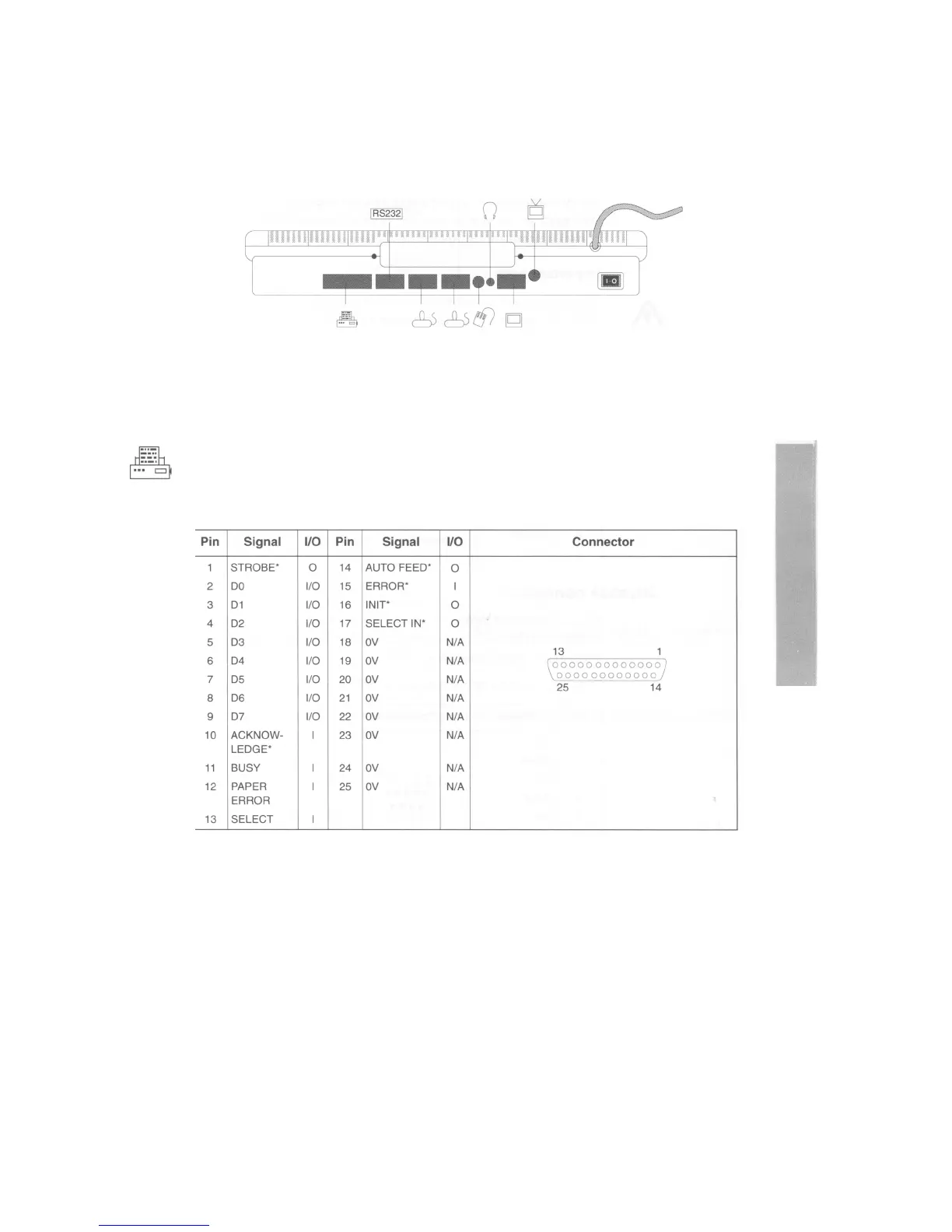

The drawing below shows the back of the computer.
The following subsections describe the connectors on the back of the computer (an
asterisk (*) after a signal name denotes active low).
Parallel port
A parallel printer needs a 25-way D-type plug to go into the 25-way D-type socket on
the back of the computer. Parallel and serial printers are discussed in Appendix C:
Attaching peripheral devices.
The pins on the connector are as follows:
83
