5 Channel Mode Configuration
ADSL router supports multiple channel operation modes. This section will show
procedures to configure the router.
5.1 Bridge Mode
ADSL modem/router is bridge mode enabled by factory default. There is a 1483-bridged
mode PVC 5/35 in system.

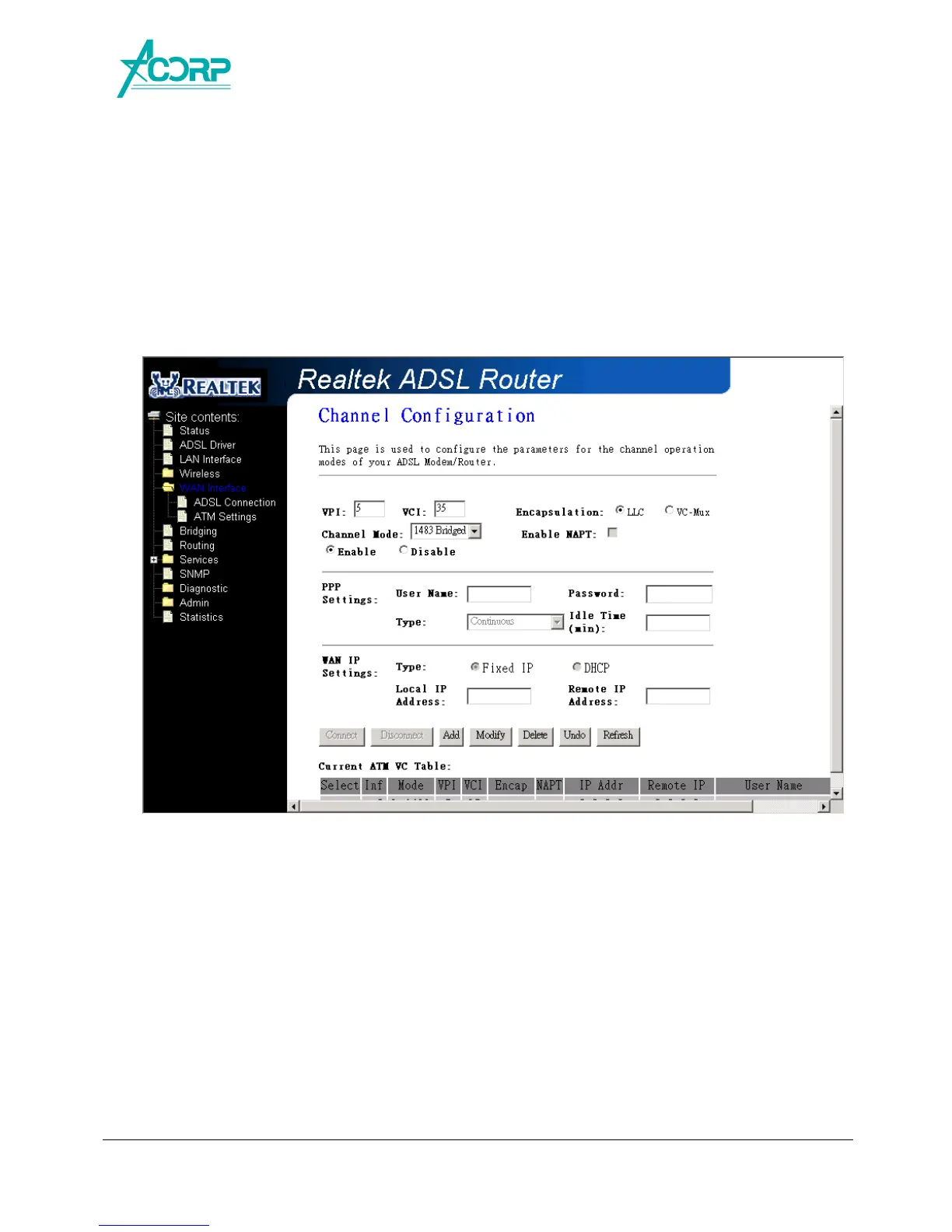

1. Open the WEB page at “WAN interface/Channel Configuration”.
2. Select the Channel Mode to “1483 Bridged”. Set the parameters VPI/VCI and
Encapsulation mode according to the CO DSLAM’s setting.
3. Click “Add” button to add this channel into VC table.
4. Open the WEB page at “Admin/ Commit/Reboot”. Press “Commit” to save the settings
into flash memory.
5. The new settings will take effect after reboot the system.
