5.5 1483 Routed Mode

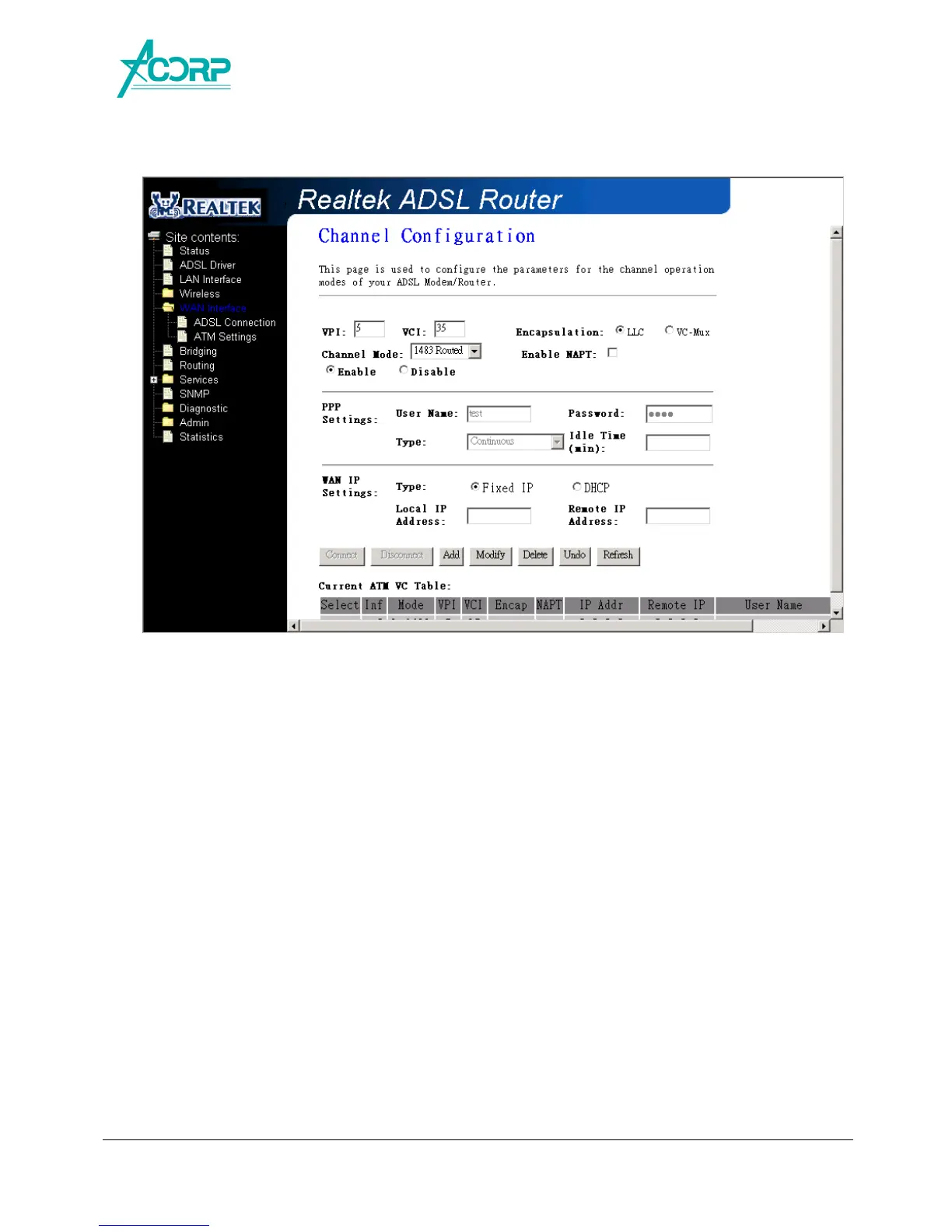

1. Open the WEB page at “WAN interface/Channel Configuration”.
2. Select the Channel Mode to “1483 Routed”. Set the parameters VPI/VCI and
Encapsulation mode according to the CO DSLAM’s setting.
3. In WAN IP settings, give the local and remote IP address from your ISP or use DHCP to
get them automatically if your ISP support it. Local IP is the address of ADSL router.
Remote IP is the ISP’s gateway address.
4. Click “Add” button to add this channel.
5. Open the WEB page at “Admin/ Commit/Reboot”. Press “Commit” to save the settings
into flash memory.
6. The new settings will take effect after reboot the system.
