Stirrer (Antenna) Motor
Stirrer (Antenna) Motor
The Stirrer Motor rotates the Antenna to scatter the microwaves inside the cooking chamber.
Testing
Remove Wires from device.
Resistance:
Across Terminals ≈ 12kΩ
Removal and Replacement
1. Disconnect oven from Power Supply.
2. Remove Top Panel. (see Panel Removal).
3. Remove Wires.

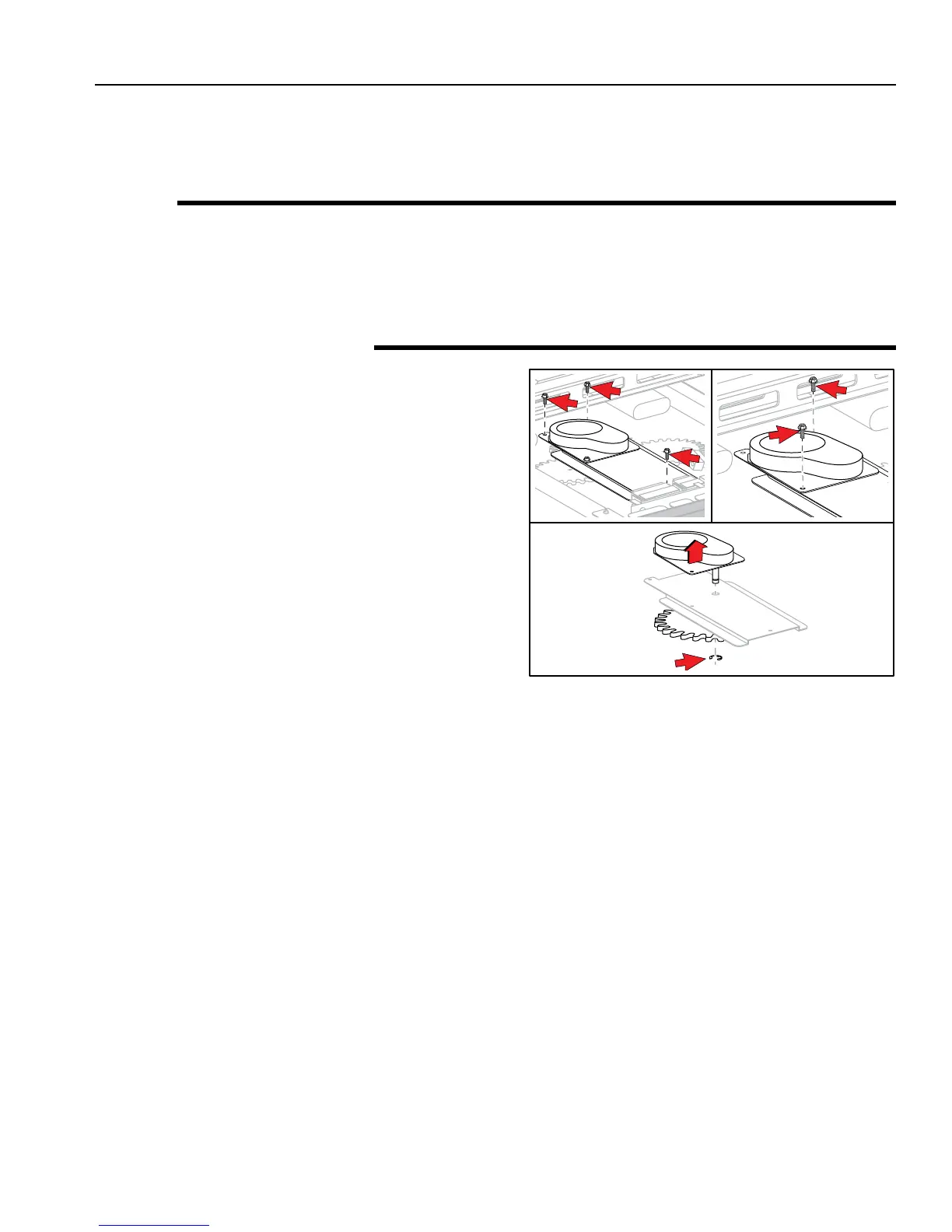

4. Remove three (3) Screws from Mounting Bracket using
1/4” Socket.
5. Remove two (2) Screws from Stirrer Motor using
1/4” Socket.
6. Remove E-Clip from Motor Shaft to remove Drive Gear.
7. To replace, reverse these steps.
