Revision: 1.23
32

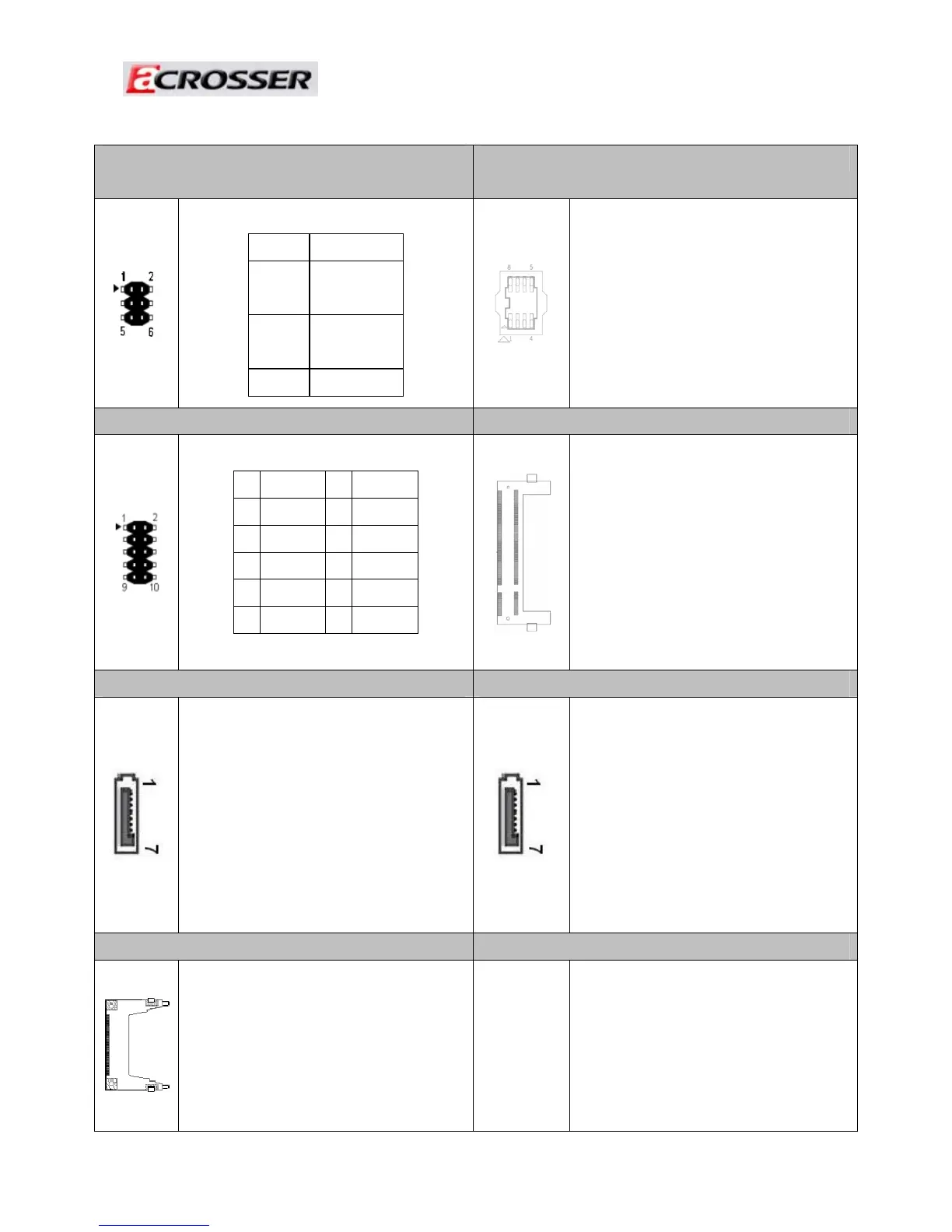

33. JP9,JP12: RS-232 / RS-422 / RS-485
Selection for COM1/2 (2.7)
34. U8: SPI BIOS Socket
STATUS SETTING
RS-232
(Default)
1-3
2-4
RS-422
3-5
4-6
RS-485 N / A
SPI BIOS Socket
35. CN21: BIOS Programmable HEADER. 36. DIMM1: DDR-II SODIMM Socket.
PIN DEFINE PIN DEFINE
1 CS0 2 +3.3V
3 MISO 4 HOLD
5 WP 6 CLK
7 GND 8 MOSI
9 N.C 10 N.C
DDR-3 SODIMM Socket
37. SATA1: SATA device connector #1. 38. SATA2: SATA device connector #2.
SATA device connector #1 SATA device connector #2
39. CF1: Type-II compact flash card socket
+3.3V CF card only and UDMA
mode supported
