Acrosser Technology AR-V6002FL - Page 31

Revision: 1.23
31

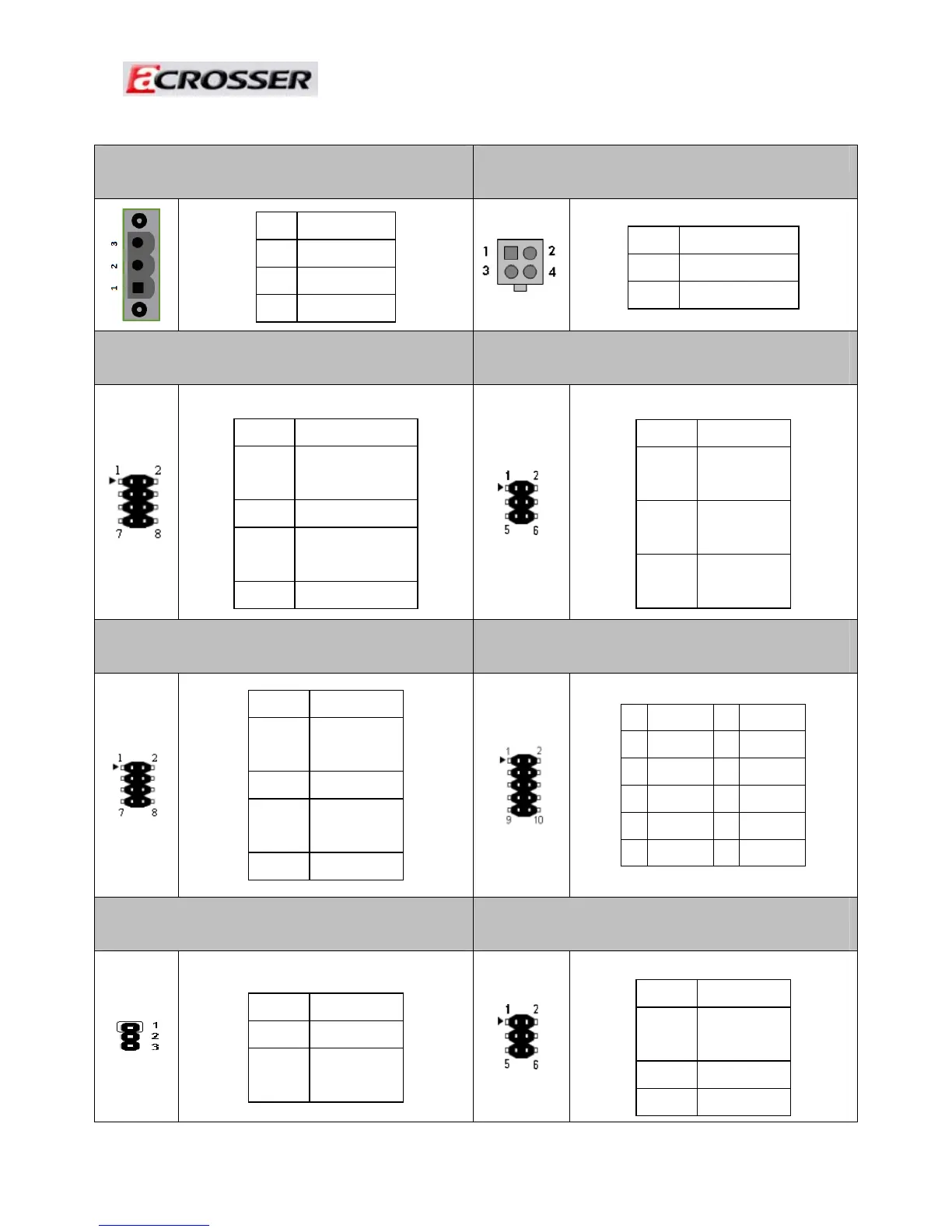

25. PWR1: Power Input Terminal Block
Connector
26. FUSE1: Fuse connector
PIN DEFINE
1 12V / 24V
2 IGN
3 GND
PIN DEFINE
1,2 Fuse Out
3,4 Fuse In
27. CN23: RI SELECT for COM1/2
CN24: RI SELECT for COM3/4
28. JP8,JP11: RS-232 / RS-422 / RS-485
Selection for COM1/2 (2.7)
STATUS SETTING
RI#
(Default)
1-2(COM1/COM3)
+12V 3-4( COM1/COM3)
RI#
(Default)
5-6( COM2/COM4)
+12V 7-8( COM2/COM4)
STATUS SETTING
RS-232
(Default)
1-3
2-4
RS-422
3-5
4-6
RS-485
3-5
4-6
29. CN25: RI SELECT for COM5/6 (Reserve) 30. COM5: RS232 signal connector for port #5
(Reserve)
STATUS SETTING
RI#
(Default)
1-2(COM5)
+12V 3-4(COM5)
RI#
(Default)
5-6(COM6)
+12V 7-8(COM6)
PIN DEFINE PIN DEFINE
1 DCD #5 2 DSR #5
3 RX #5 4 RTS #5
5 TX #5 6 CTS #5
7 DTR #5 8 RI #5
9 GND 10 N.C
31. JP5,JP6: RS-485 Termination 120 ohm
(Reserve)
32. JP7,JP10: RS-232 / RS-422 / RS-485
Selection for COM1/2 (2.7)
STATUS SETTING
Enable short
Disable
open
(Default)
STATUS SETTING
RS-232
(Default)
1-2
RS-422 3-4
RS-485 5-6
