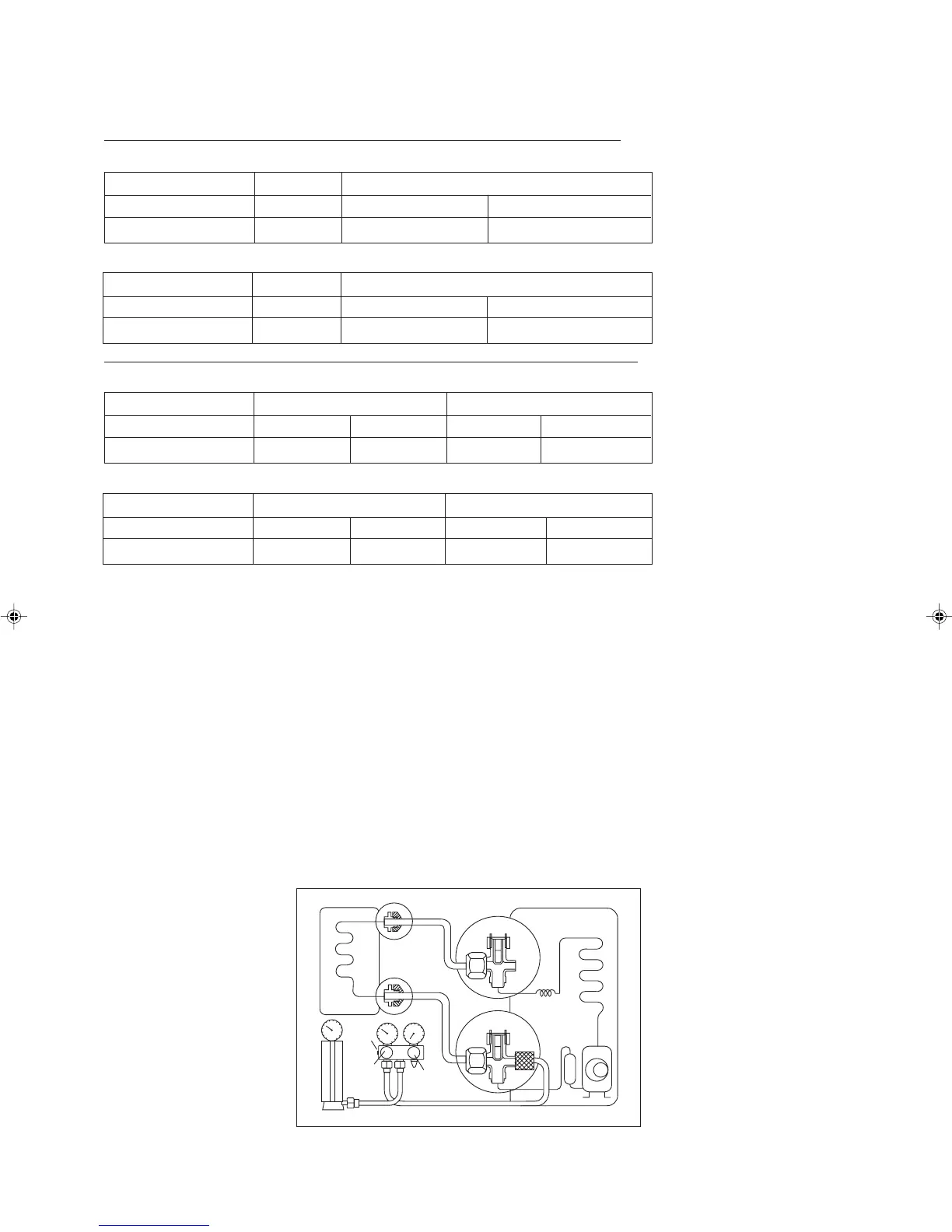

Charge Operation
This operation must be done by using a gas cylinder and a precise weighing machine. The additional charge is topped-up
into the outdoor unit using the suction valve via the service port.
• Remove the service port cap.
• Connect the low pressure side of the charging gauge to the suction service port center of the cylinder tank and close the
high pressure side of the gauge. Purge the air from the service hose.
• Start the air conditioner unit.
• Open the gas cylinder and low pressure charging valve.
• When the required refrigerant quantity is pumped into the unit, close the low pressure side and the gas cylinder valve.
• Disconnect the service hose from service port. Put back the service port cap.
Suction Valve
Discharge Valve
Liquid Side
Indoor Unit
Outdoor Unit
Gas Side
Low
Hi
Open
Close
Open
Open
Check
Valve
Indoor CE35E CE40E
Outdoor SL35C SL40C (1PH) SL40C (3PH)
Additional charge [g/m] 57 55 56
Additional Charge
The refrigerant is pre-charge in the outdoor unit. If the piping length is less than 7.5m, then additional charge after vacuuming
is not necessary. If the piping length is more than 7.5m then use the additional charge value as indicated in the table.
Additional refrigerant charge [g] per additional 1m length as tabulated (for R22 models)
Cooling only
Example:
CE35E & SL35C with 13m piping length, additional piping length is 5.5m. Thus,
Additional charge = 5.5[m] x 38[g/m]
= 209[g]
Additional refrigerant charge [g] per additional 1m length as tabulated (for R410A models)
Cooling only
Indoor 5CE35E 5CE40E
Outdoor 5SL35C
(1 PH)
5SL35C
(3 PH) 5SL40C (1 PH) 5SL40C (3 PH)
Additional charge [g/m] 27 27 24 25
Heat Pump Unit
Indoor CE35ER CE40ER
Outdoor SL35CR
SL40CR (1PH) SL40CR (3PH)
Additional charge [g/m] 54 54 55
Indoor 5CE35ER 5CE40ER
Outdoor 5SL35CR
(1 PH)
5SL35CR
(3 PH) 5SL40CR (1 PH) 5SL40CR (3 PH)
Additional charge [g/m] 28 27 39 39
Heat Pump Unit
