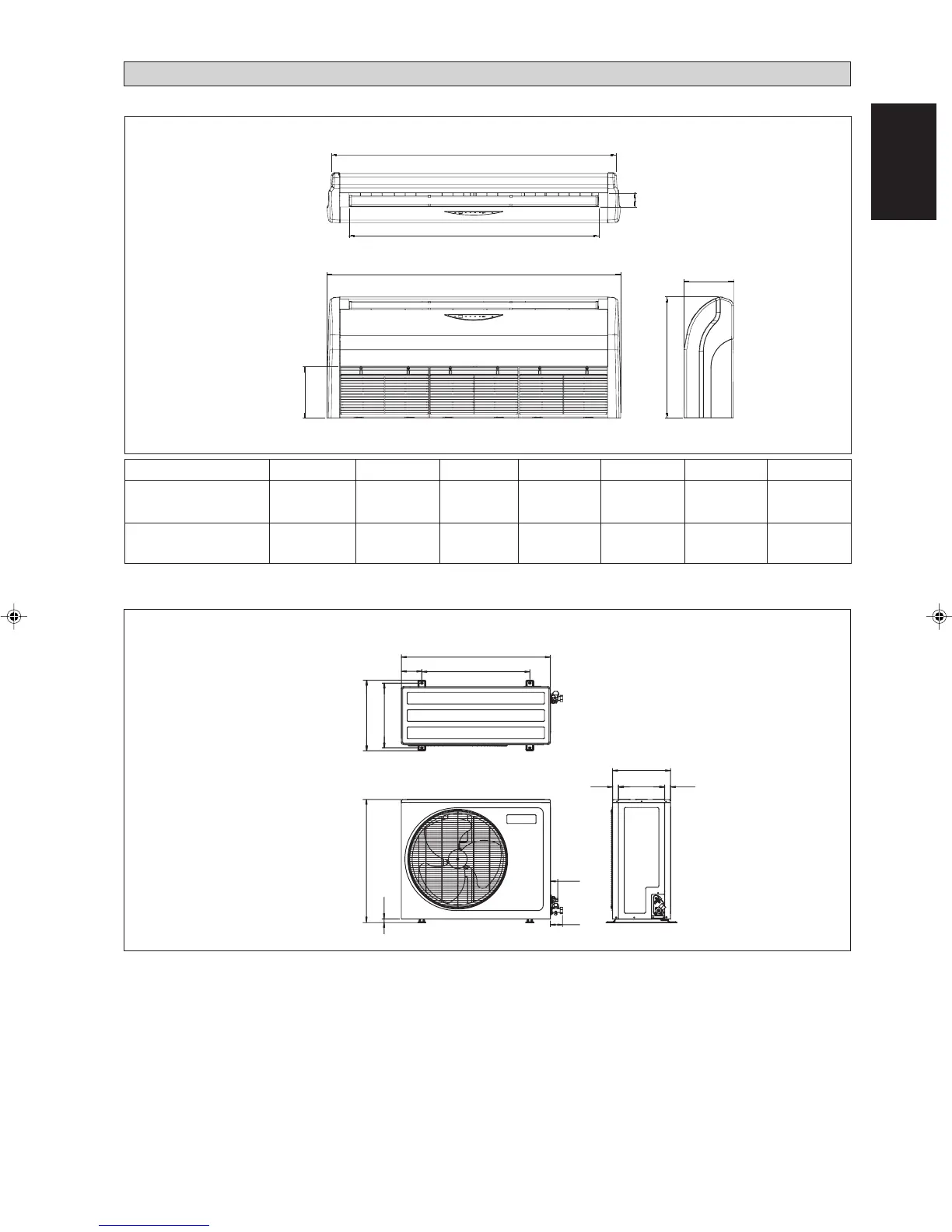

OUTLINE AND DIMENSIONS
Indoor Unit
All dimensions are in mm/(in)
A
B
E
C
D
G
F
Outdoor Unit ((5)SL35/40C/CR)
All dimensions are in mm/(in)
Dimension A B C D E F G
(5)CE 35E/ER
1272 1088 74 1320 268 635 259
(50.1) (42.8) (2.9) (52.0) (10.6) (25.0) (10.2)
(5)CE 40E/ER
1490 1308 74 1538 268 635 259
(5.9) (51.5) (2.9) (60.6) (10.6) (25.0) (10.2)
1000.0 (39.4)
400.0 (15.7)
320.0 (12.6)
40.0
(1.6)
40.0
(1.6)
745.6 (29.4)
141.5 (5.6)
488.0 (19.2)
488.0 (19.2)
25.0 (1.0)
850.0 (33.5)
50.0
(2.0)
35.0
(1.4)
