3.2 Power supplies SPM-32A ... SPM-36A
3-6
• Replace the new batteries as shown in the diagram
below. The flat cable must be below the batteries and
must not be twisted.

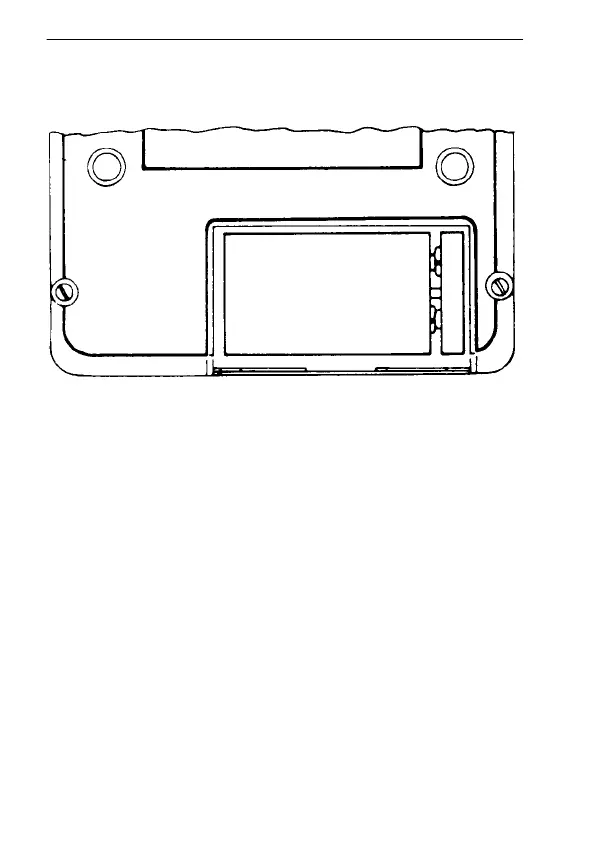

Fig. 3-4 How to replace the batteries in the battery compartment.
• Replace and press down the cover while using a coin or
a screwdriver to turn the screw clockwise.
If the lid does not fit properly, do not use force, the flat
cable under the batteries may be twisted.
