Acterna SPM-32A - Levels in Dbm0, Relative Levels; (Rel)

4-54
4.2 Operation and features SPM-32A ... SPM-36A
• Measure the level difference
4.2.5.3 Levels in dBm0, relative levels
(REL)
Level in dBm0 = Absolute level - Level in dBr.

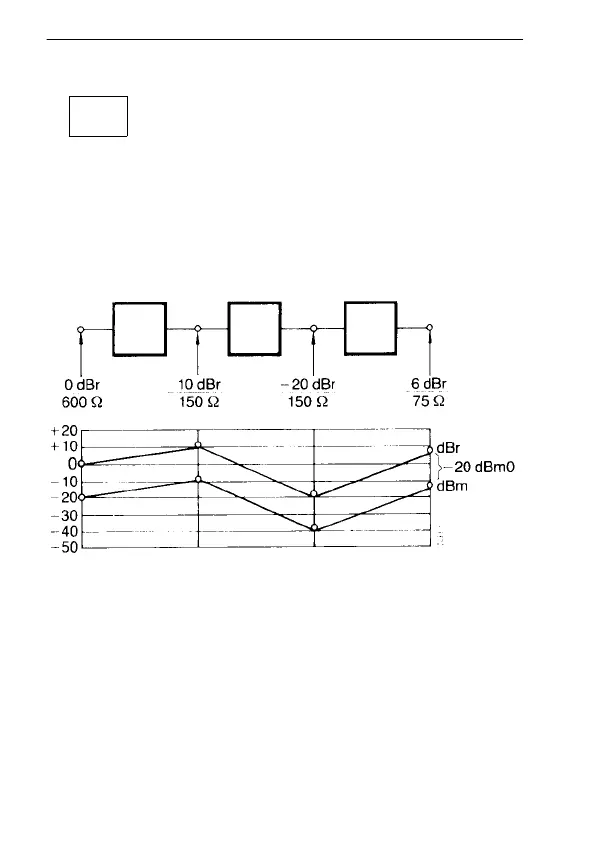

Fig. 4-20 Level plan for a transmission system
At the 0 TLP (0 dBr point) the level in dBm0 is equal to the
absolute power level. For other points in the transmission
system, [dBm0] = [dBm] - [dBr]. It must be ensured that the
correct relative level and the correct input impedance are
used for other test points.
ABS-REF
