ACTi E48 - Page 16

www.acti.com
Hardware Manual
16

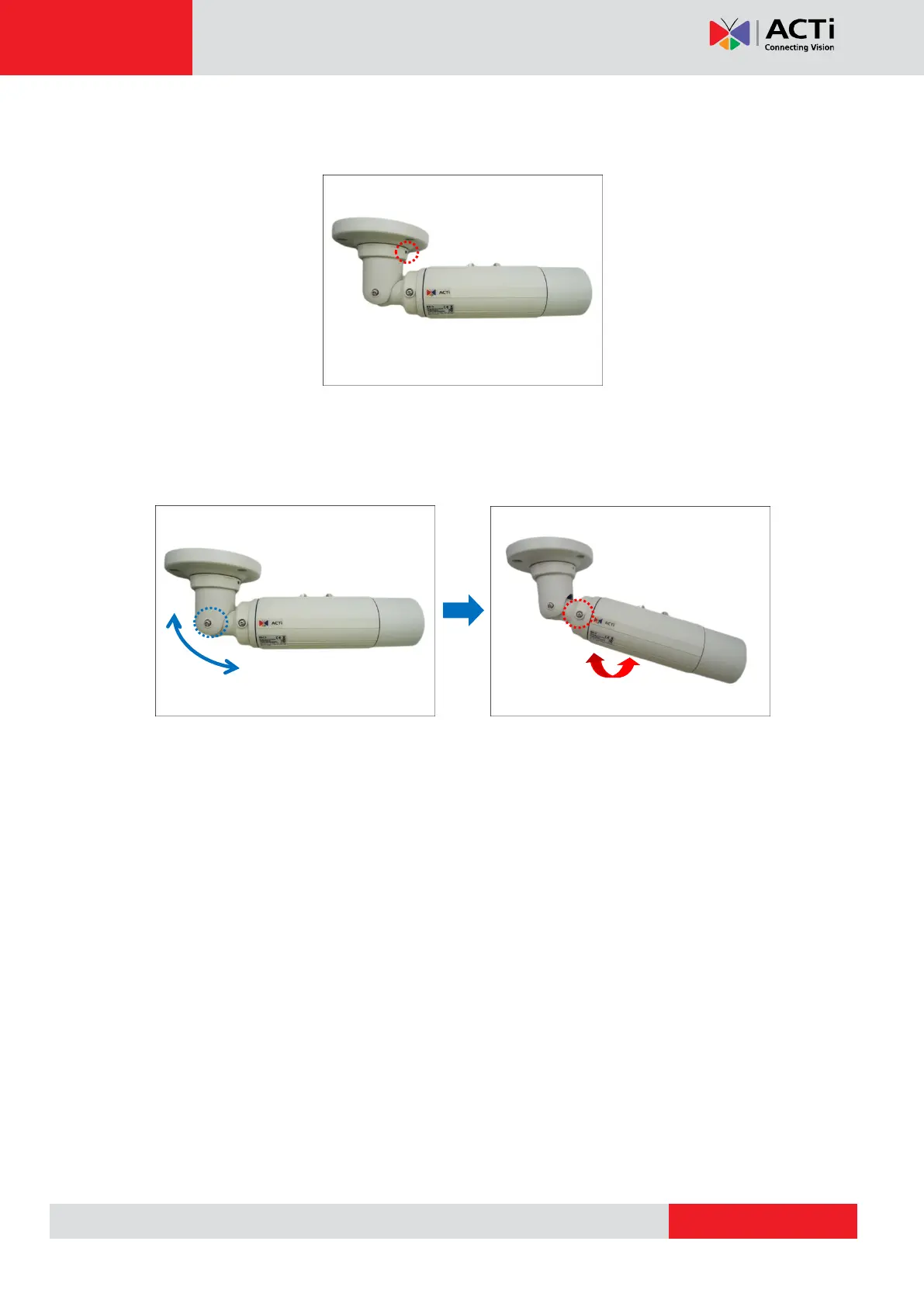

2. Tighten the set screw on the bracket plate to fix its position.
3. Attach the camera to the surface using the three (3) supplied screws.
4. Adjust the camera installation angle and orientation, and then tighten the screws to fix the
position.
Set Installation Angle Set Viewing Orientation
