Step 4: Connect to Network

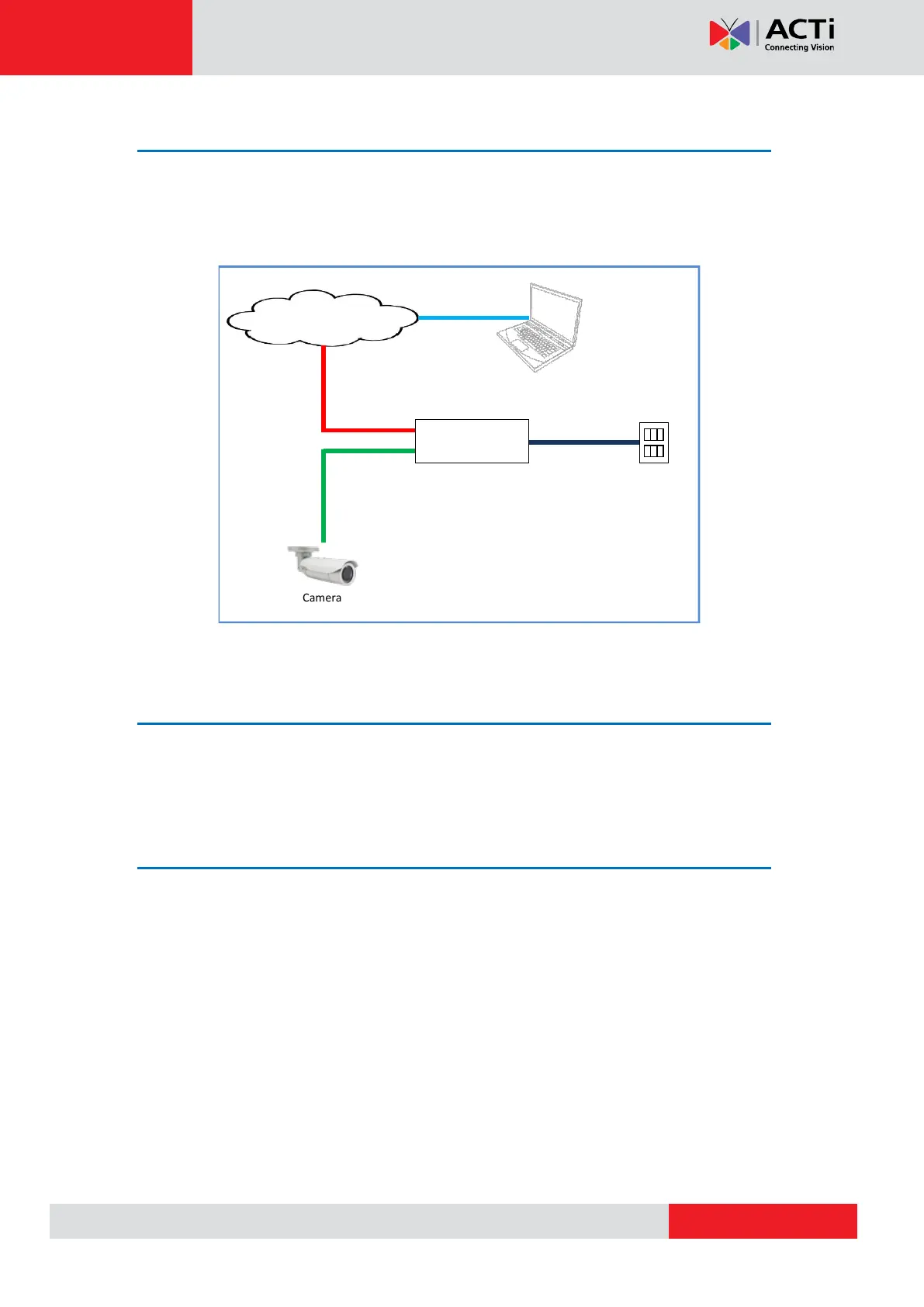

Connect the other end of the network cable to a switch or injector. Then, connect the switch or
injector to a network, PC, and a power source. See Power-over-Ethernet (PoE) connection
example below.
Network
AC Power
Source
PoE Injector
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
Step 5: Access the Camera Live View
See Accessing the Camera on page 42 for more information on how to access the Live View
of the camera.
Step 6: Complete the Installation
To complete the installation, attach the sunshield to the camera, see How to Attach the
Sunshield on page 33. Below is a sample installation.
