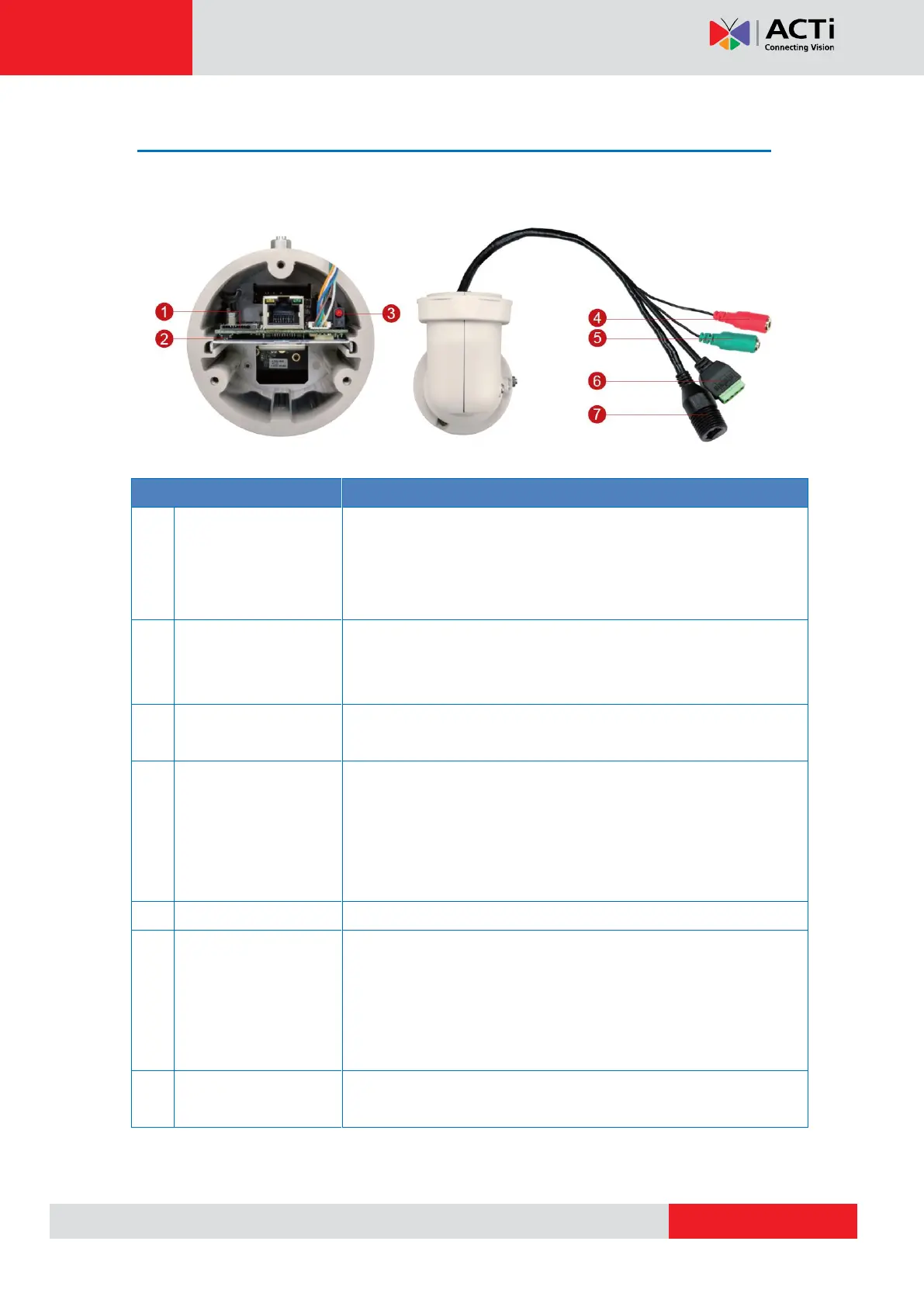

Physical Description
E48
Item
Description
1
Memory Card Slot
Insert a memory card into this slot for local recording purposes.
See How to Insert the Memory Card on page 39 for more
information.
NOTE: Supports microSDHC and microSDXC cards.
2
Reset Button
Restores the factory default settings of the camera. Resetting the
camera must be done while the power is on. See How to Reset
the Camera on page 40 for more information.
3
Power LED
The Power LED turns on when the camera is powered on and
goes off once the initial boot up process is complete.
4
Audio Input
This jack connects to an audio input device, such as a
microphone with built-in amplifier.
NOTE: Make sure that the connected audio input device has a
built-in amplifier. Connecting an ordinary microphone will dwarf
sounds and will result in inaudible recording.
5
Audio Output
This jack connects to an audio output device, such as a speaker.
6
Digital Input / Output
(DI/DO)
This connector connects to digital input or output devices, such as
an alarm trigger, panic button, etc. Digital Input (DI) and Digital
Output (DO) devices are used in applications like motion
detection, event triggering, alarm notifications, etc. See How to
Connect DI/DO Devices on page 29 for more information.
7
Ethernet Port
The Ethernet port connects to a network using a standardard
Ethernet cable.
