Hardware Manual
30
Transistor (Open Collector)

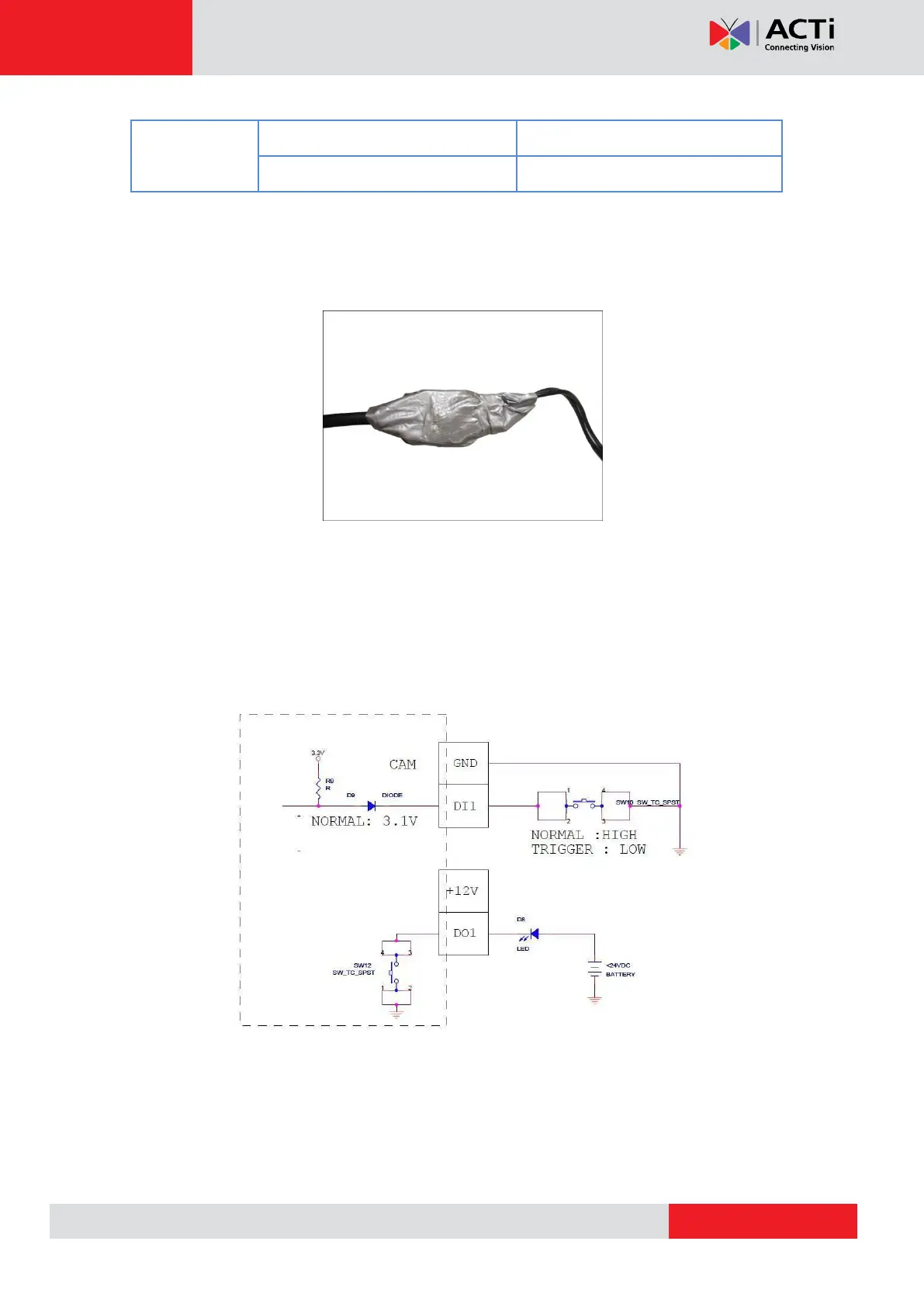

After mapping the wires to the terminal block, connect the terminal block to the DIO connector
of the camera and make sure to wrap the connection using a waterproof tape (can be
purchased in hardware stores).
Typical Connection
Based on these specifications, if the DI device has a voltage of 0V ~ 30V or the DO device has
a voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and
there is no need to connect the DI/DO device to an external power source.
In this case, use the GND and DI pins to connect a DI device and use the 12V and DO pins to
connect a DO device. See wiring scheme below:
High Voltage DO Device Connection
Even though the camera provides 12V power, this may not be enough for some high voltage
DO devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is
a need to connect an external relay. See wiring scheme below:
