ACTi E48 - Page 38

www.acti.com
Hardware Manual
38

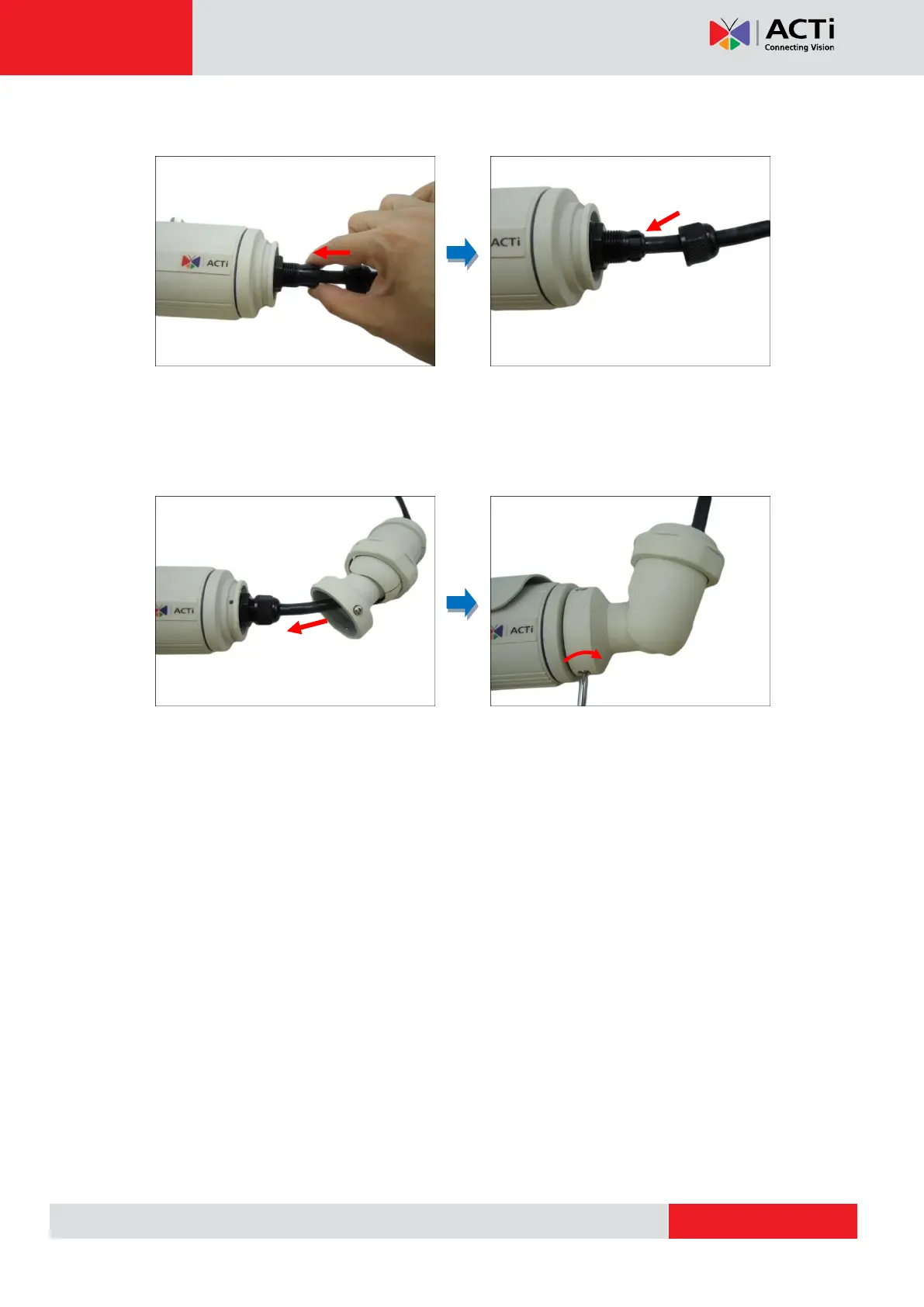

3. Push the rubber insert into the gland and attach the clamping nut.
NOTE: Make sure the clamping nut is tightly attached to ensure that the connection is
waterproof.
4. Attach the integrated bracket and secure the three (3) screws.
