Getting Started
2
MECS
MECS vehicles (1988 –1995) use either a 6-pin (with pigtail) or a 17-pin
DLC. Use the MECS 6-pin adapter cable kit (CP9131) for both
configurations. The MECS adapter cable kit includes jumper wires to
connect to the MECS 17-pin DLC. The MECS adapter cable kit is
optional and must be purchased separately. Use the following diagrams
to connect the adapter cable.

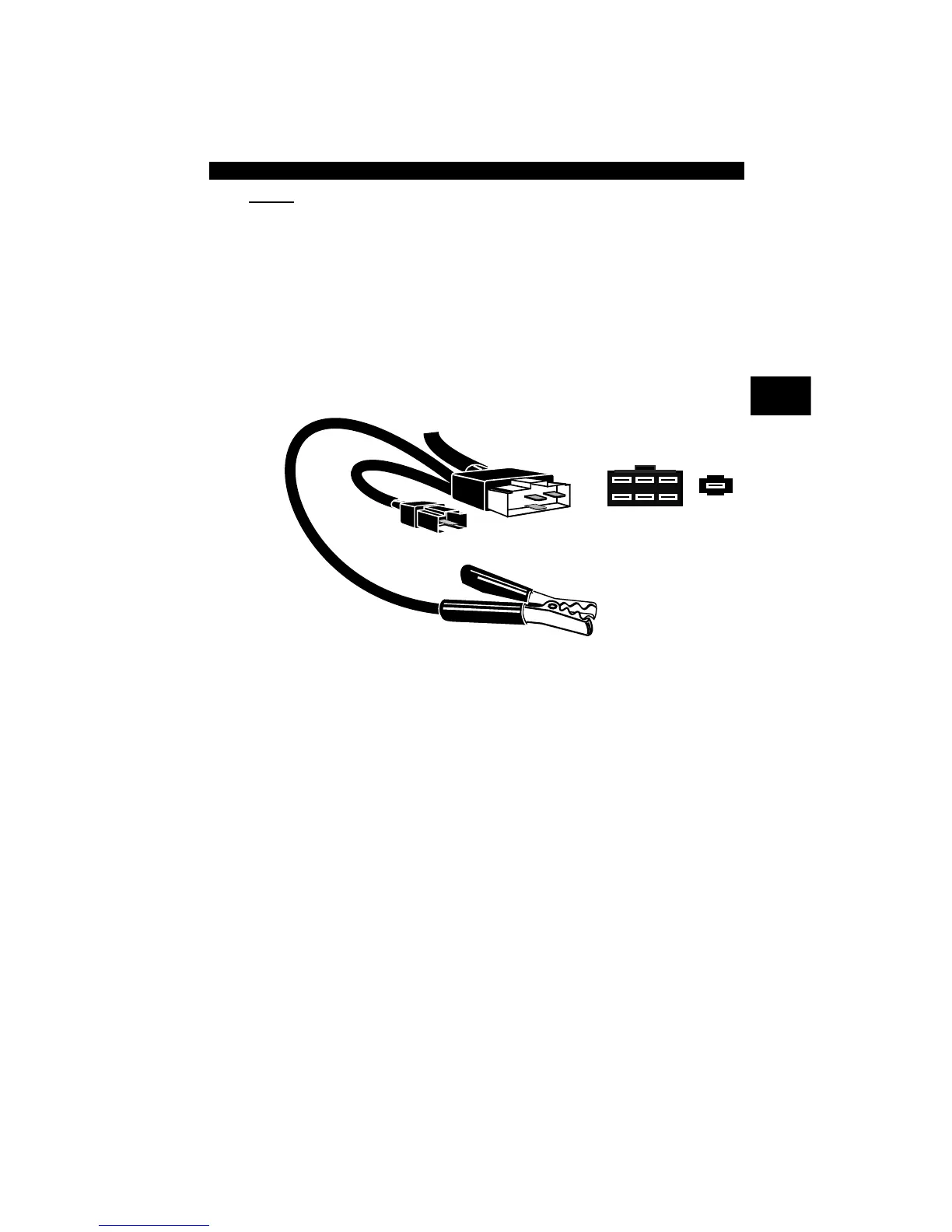

6-Pin MECS
STI Pigtail
4
5
6
1
2
3
To Scan
Tool
6-Pin MECS
Clip to good
vehicle ground
Cable Adapter
Vehicle DLC
6-Pin MECS
Pigtail
P/N CP9131
To Next Page
