111
Appendix D
MC-3000 T
able T
op Keypad ADA Bus™ Connections

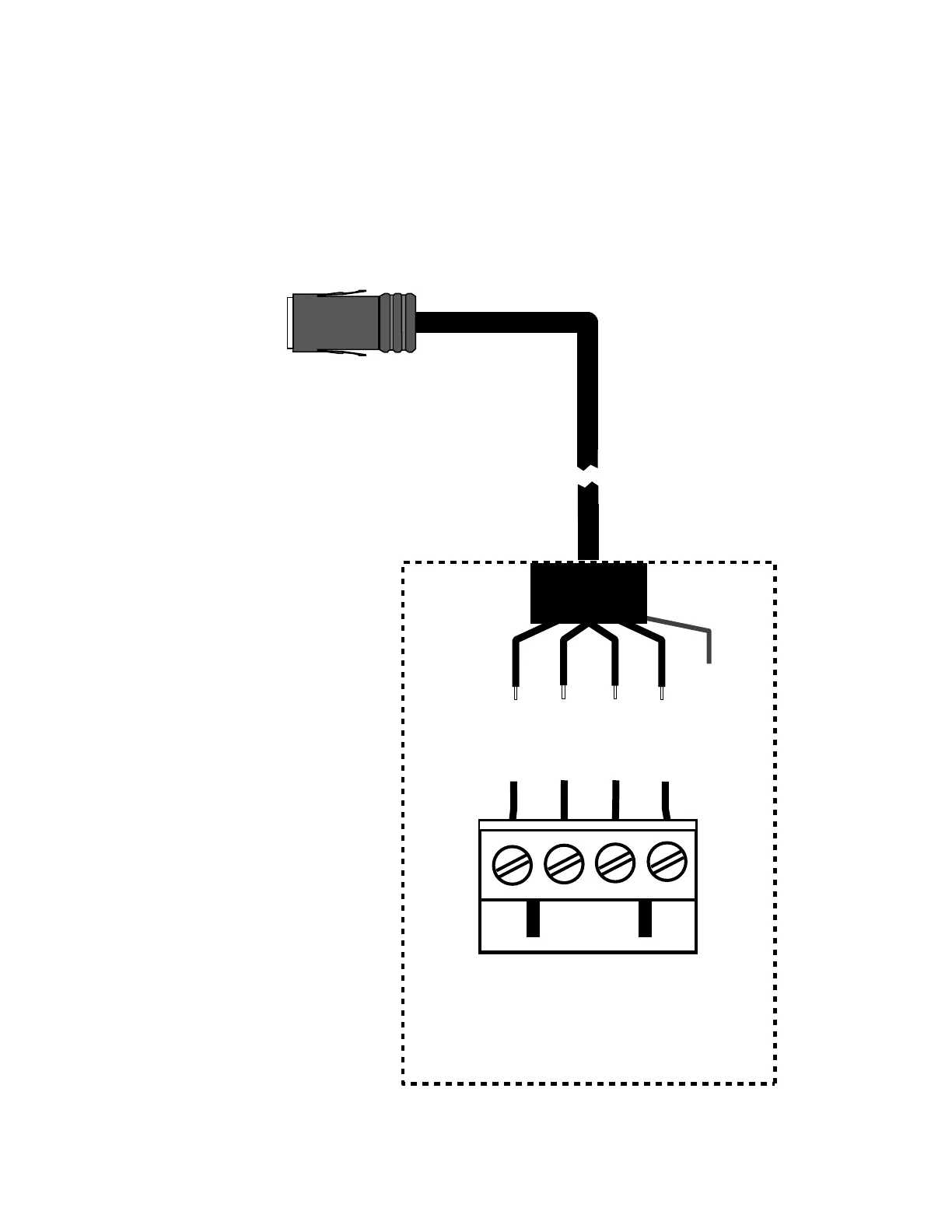

The MC-3000 Table Top Keypad uses a unique slim modular connector which is designed to
plug directly into the WPA-3000 Wall Plate Adaptor. While this wire is provided installed into
the MC-3000T prior shipping. Should the wire be disconnected, follow the wiring connection
below.
