SWITCH SETTINGS FOR ADA Bus™ OPERATIO
“SW 4”
TX
PULSE
RX
ONOFF
ON
OFF
Connecting an MT-3000 Multi-Tuner to the ADA Bus™
The MT-3000 can be used in several systems, some of which do not require connection
to the ADA Bus™. When connecting an MT-3000 to a Delta System, you must check to see if
the COMBINED OUTPUT REMOTE jack is programmed to send and receive information.
NOTE: The unit should arrive with the jack pre-programmed to operate in a Delta System;
therefore, check if the MT-3000 operates on the ADA Bus™ properly BEFORE following
these steps:
STEP ONE: Disconnect the power cord from the MT-3000.
STEP TWO: Remove the top cover screws, then the cover.
Keep these screws in safe place to avoid losing them.

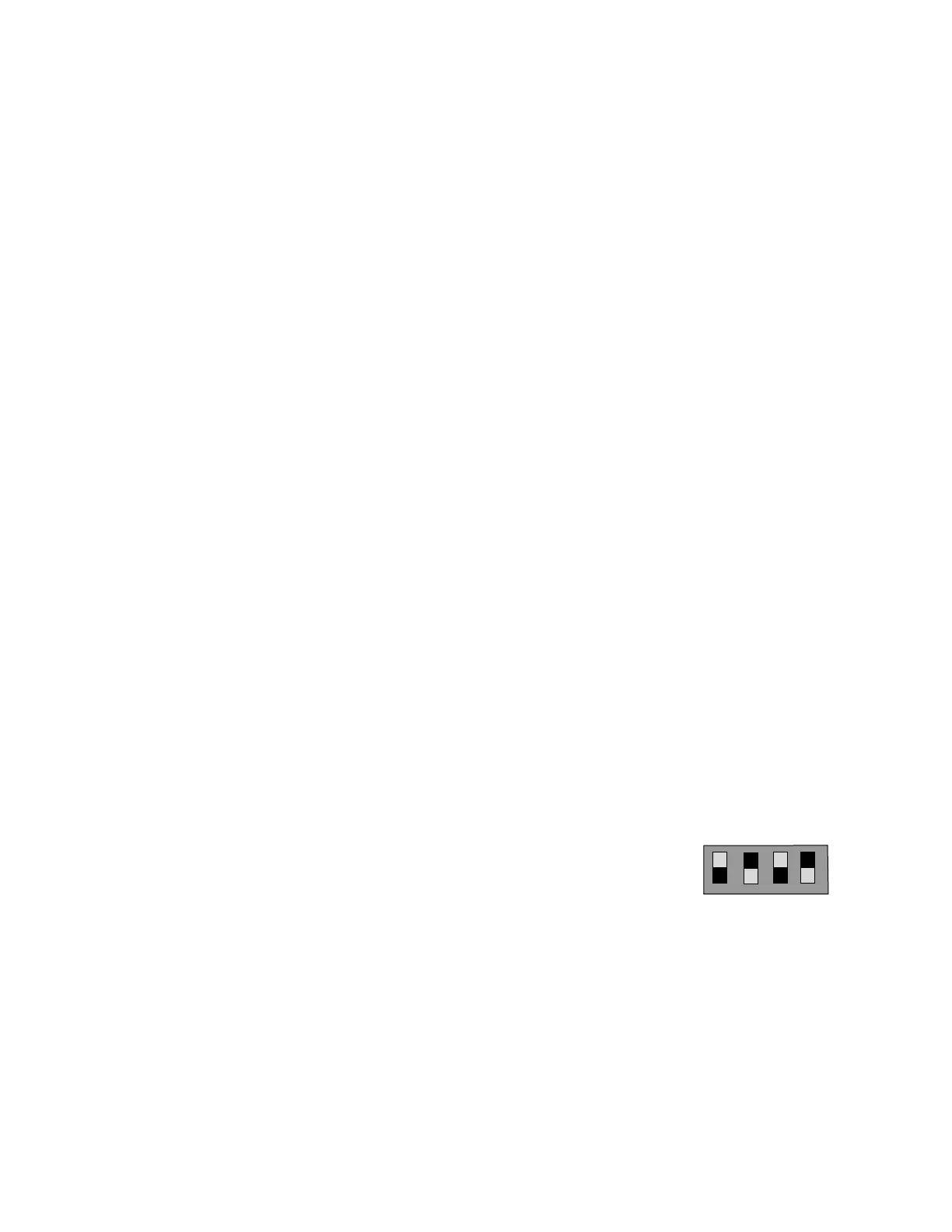

STEP THREE: Locate the four position D.I.P. switch labelled
“SW 4.” This switch can be found on the upper right-
hand portion of the main board.
STEP FOUR: Make sure that positions 1 and 3 are ON. Make
sure that positions 2 and 4 are OFF.
STEP FIVE: Replace the top cover and screws.
Setting the ADA Bus™ Address on the MT-3000
The MT-3000 should operate properly when it comes from the factory. However, if
there is a problem, first check if the tuner's ADA Bus™ address is set to 0. You can check or
change the tuner's address by following these steps:
STEP ONE: Press the LABEL button on the MT-3000 until its light begins to flash.
STEP TWO: Press the MONO/ST button until you have found ADA Bus™ address 0.
STEP THREE: Press the LABEL button again until its light stops flashing.
NOTE: Refer to the section entitled “Initializing an MC-3000 for an MT-3000” (page 49)
for further information.
