6
The previous items are used to build a Delta-88. The following components are external to the
Delta-88 and can be used to create a full Delta System.
System & Source AC Control
The Delta-88 is the heart of the Delta System but AC switching of home theater systems,
external power amplifiers, and even the source components must use either an ACC-
3 and DB-9, ACC-48, or ACC-3000.

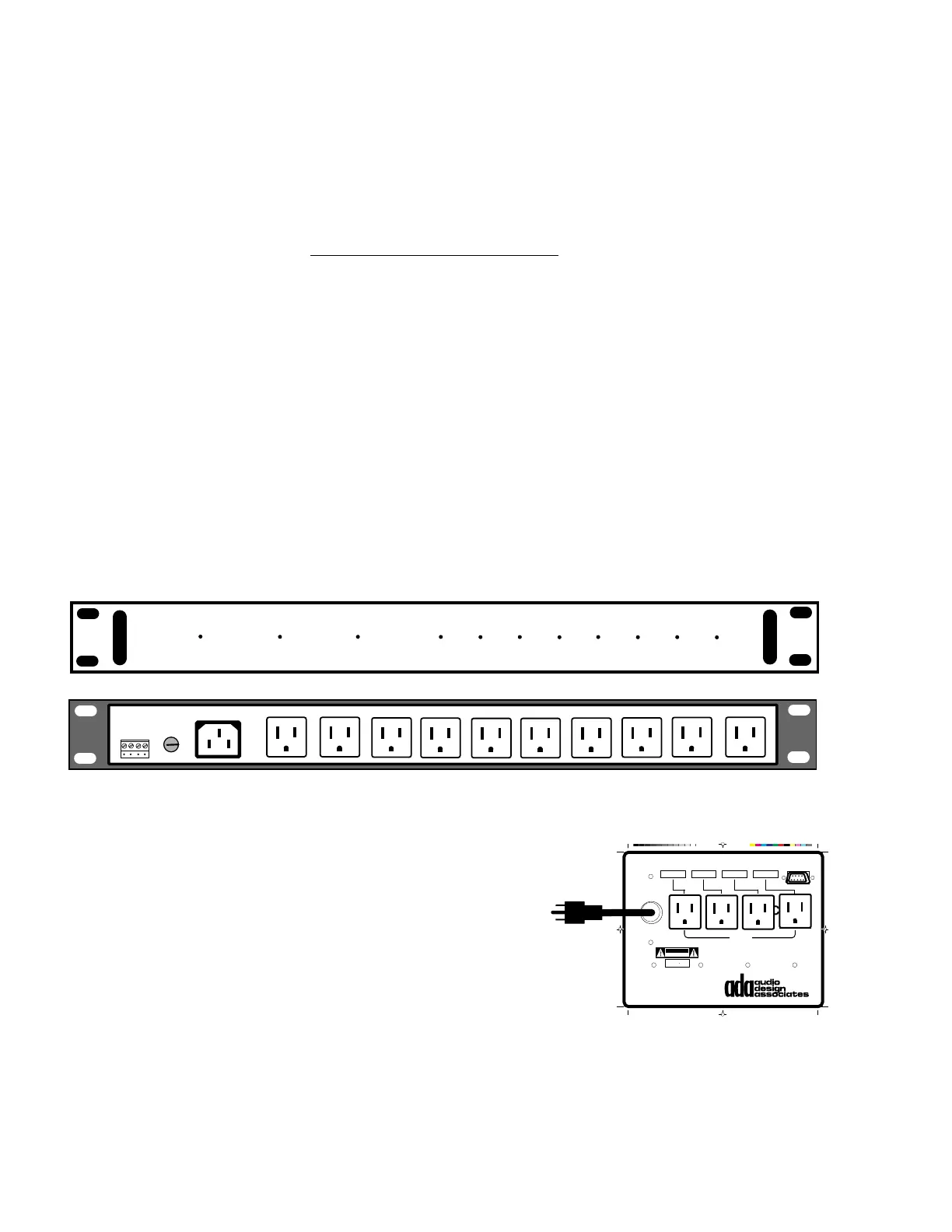

ACC-3000 Source AC Controller • an ADA Bus™ Component • is used for to provide smart
AC switching to each source. If a source is selected on the Delta-88, the ACC-3000 will
turn it on. This ideal operation extends the life of source components while permitting
true one-button operation of Tuners, CD players, and Cassette Players. Using CDs and
Cassette Players with a timer play function, mere selection of that source from either the
Delta-88 or a keypad will turn on that room, turn on that source, and automatically
engage play. To determine if your source component incorporates timer/play, either
locate a switch marked timer/play or: turn the source on, engage it into play, unplug
the source component while in play, plug the source component back into an AC outlet,
and wait 5-10 seconds. If the source has automatic timer/play, it will resume playing
automatically.
ACC-48 Basic AC Controller can be configured to provide one, two, or three different AC
controlling tasks. Designed as an inexpensive way to
provide AC switching, the ACC-48 has four AC
outlets which are triggered via the 9 pin ribbon cable
that connects to the Delta-88's 9 pin "D" connector.
Each AC outlet has a corresponding jumper pin bank
of eight plugs. These eight plugs determine when
that AC outlet turns on. Furthermore, the Delta-88
has a step in its setup program which sets the function
of its 9 pin "D" connector. These options exist
Option 1 - Source Tracking. When the Delta-88's 9 pin "D"
connector is set to source tracking (in software), the ACC-48's AC outlets will engage on
and off with respect to the sources in use on the Delta-88. Thus an ACC-48 can provide
basic independent AC control of up to four sources. Two ACC-48s could provide basic
independent AC control of eight sources. When using the MT-3000 Multi-Tuner, the
MT-3000 typically acts as three of the eight sources on the system. Therefore, if you only
Description of the DELTA System (cont.)
123
4
5
6
7
8
RECEIVING DATA
TRANSMITTING DATA
READY
ACC-3000
1234
ACC-3000
FUSE
AC POWER
SWITCHED B
SWITCHED A
8
7
6
5
4
3
2
1
ADA BUS
ACC-3
12345678
TO 9 PIN "D"
DELTA-88123456781234567812345678
1000 WATTS
MAX TOTAL
Set Shunting Pins To Engage AC With Zone Or Source Numbers 1-8
120-240 VAC
50-60 Hz
QUAD AC CONTROLLER
ACC-48
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
MADE IN U.S.A.
1. Delta-88 9 Pin "D" programmed for source AC control. - Set one shunting
pin per AC outlet according to source inputs. Set 3 pins for MT-3000.
2. Delta-88 9 Pin "D" programmed for zone AC control. - Set one shunting
pen per AC outlet according to zone numbers. Set all shunting pins on
one AC Outlet for All-On source AC control when not using an ACC-3000.
3421
