ALPHA® Solar™ Sign
18 Installation: Mounting instructions
3. Use the dimensions A, B, C, and D in the table below for
predrilling holes in the supporting wall.
4. Mount the sign to a wall capable of supporting at least 400
pounds (181 kg).
C
B

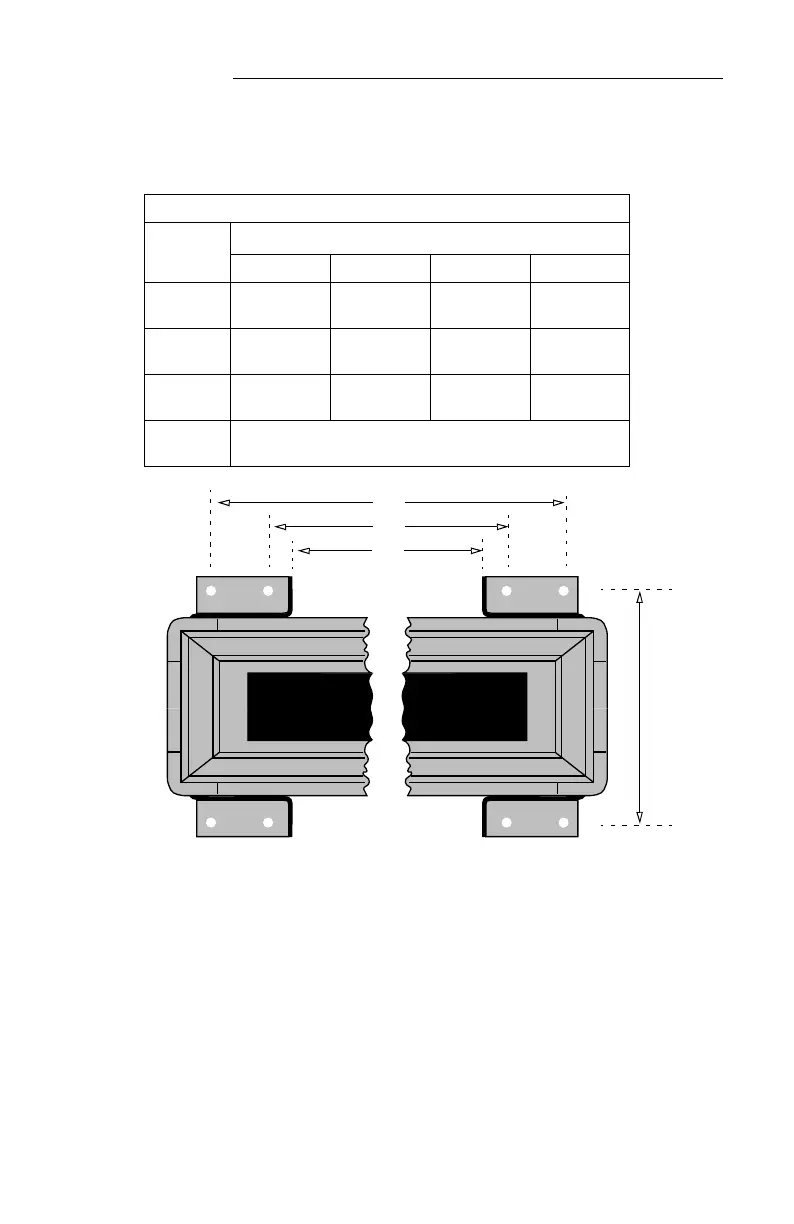

Mounting dimensions
Dimension
Alpha® Solar
™ size (LED rows x columns)
96 x 16 128 x 16 160 x 16 192 x 16
A
42.5”
(108 cm)
56.9”
(144.5 cm)
71.3”
(181 cm)
85.7"
(217.7 cm)
B
43.75”
(111.1 cm)
58.2”
(147.8 cm)
72.6”
(184.4 cm)
87"
(221 cm)
C
46"
(116.8 cm)
60.4"
(153.4 cm)
74.75"
(190 cm)
89.2"
(226.6 cm)
D
14" (all sizes)
(35.6 cm)
A
D
