Adastra RM244V - Front Panel; Rear Panel

RM244V & CS4 User Manual

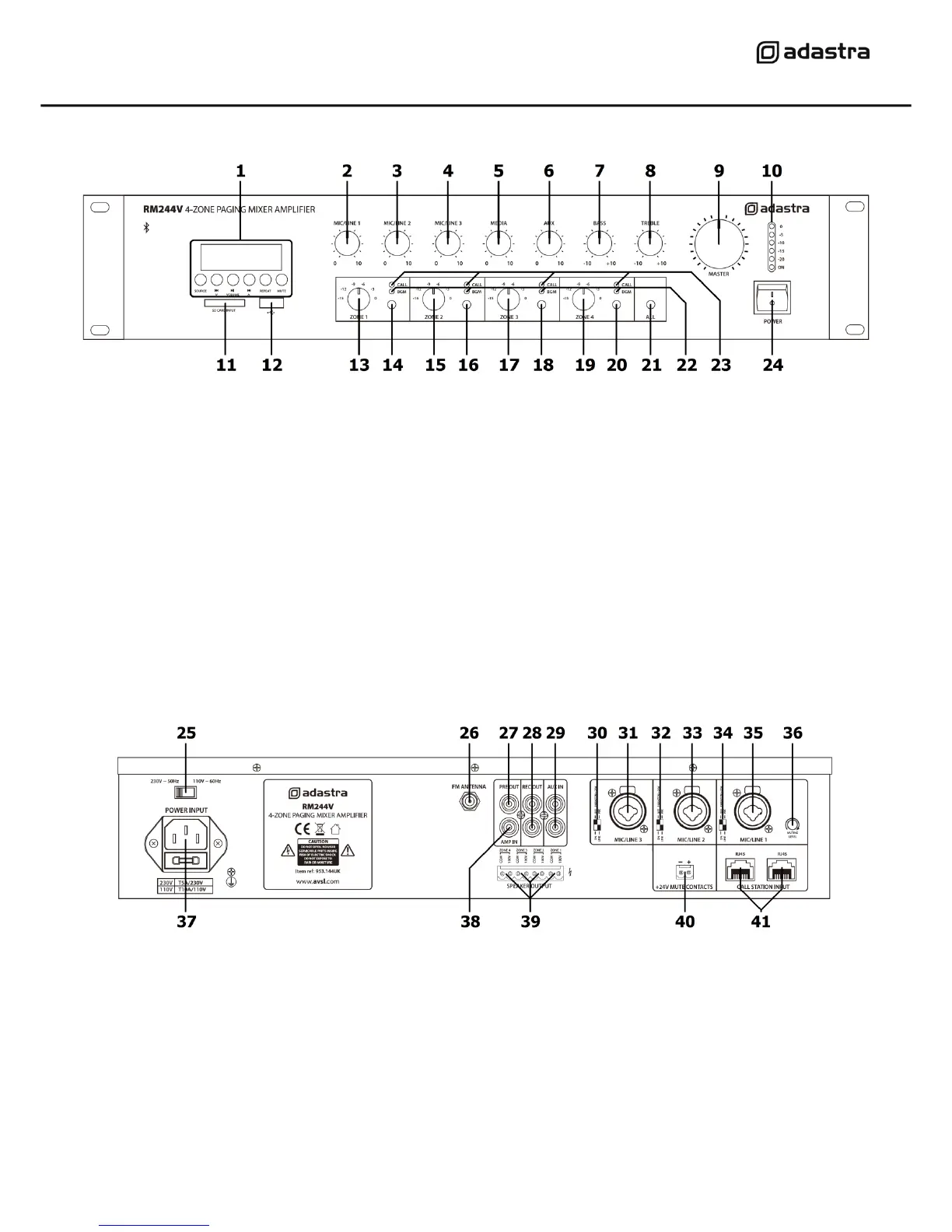

Front panel
Rear panel
1.
Media player section USB/SD/FM/BT
13.
ZONE 1 volume attenuator
2.
MIC/LINE 1 volume control
14.
ZONE 1 call select
3.
MIC/LINE 2 volume control
15.
ZONE 2 volume attenuator
4.
MIC/LINE 3 volume control
16.
ZONE 2 call select
5.
MEDIA player volume control
17.
ZONE 3 volume attenuator
6.
AUX line in volume control
18.
ZONE 3 call select
7.
BASS EQ control
19.
ZONE 4 volume attenuator
8.
TREBLE EQ control
20.
ZONE 4 call select
9.
MASTER volume control
21.
ALL outputs page select
10.
VU meter LEDs
22.
BGM background music (media) indicator
11.
SD card slot
23.
CALL paging indicator
12.
USB media port
24.
POWER switch
25.
Voltage select
34.
Channel 1 MIC/LINE + PHANTOM switches
26.
FM ANTENNA ‘F’ connector
35.
Channel 1 input XLR/jack
27.
PRE OUT (loop send) RCA
36.
Channel 1 priority MUTING LEVEL
28.
REC OUT recording output 2 x RCA
37.
Mains power inlet IEC and fuse holder
29.
AUX IN line input 2 x RCA
38.
AMP IN (loop return) RCA
30.
Channel 3 MIC/LINE + PHANTOM switches
39.
SPEAKER OUTPUT modular screw terminals
31.
Channel 3 input XLR/jack
40.
24V MUTE modular screw terminals
32.
Channel 2 MIC/LINE + PHANTOM switches
41.
CS4 CALL STATION connectors 2 x RJ45
33.
Channel 2 input XLR/jack
