29
● RECEPTION
Squelch will open when the proper code is received.

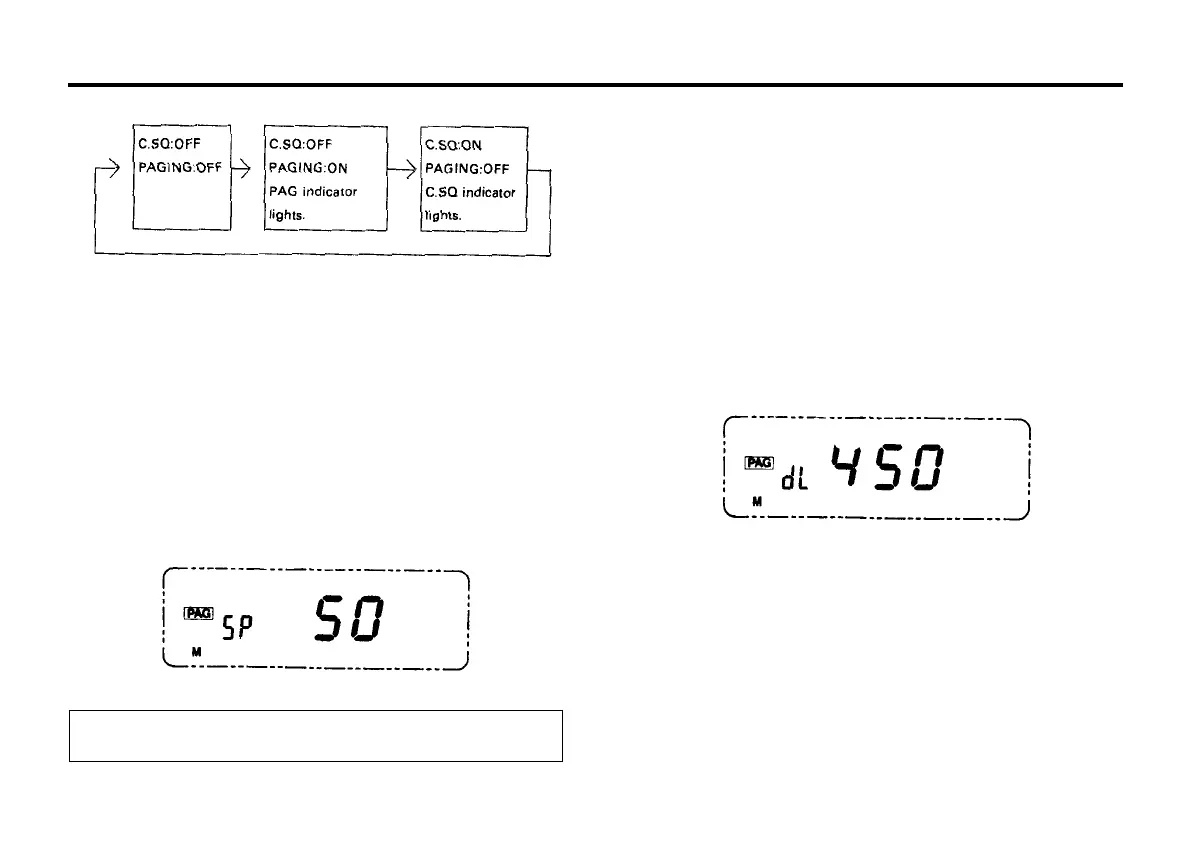

● TRANSMISSION SPEED
The tone duration for each DTMF digit in transmission could be
selected as 50 (default), 100,150 or 200 msec.
1. Press F key then press CALL key for longer than 1 second within 10
seconds. The current DTMF code transmission speed will show on
the display.
2. Rotate the tuning control or the UP/DN key on the microphone to
select the desired DTMF Transmission speed.
3. Press any front panel key to return to normal display.
Note
Voice output is muted during PAG/C.SQ code output.
5-9-4 Using PAG/C.SQ with a repeater
The PAG/C.SQ signal is transmitted after a short delay if the PTT switch
is pressed. This is to avoid any malfunction due to the PAG/C.SQ signal
being interrupted by repeaters with long response time.
● Transmit Delay during C.SQ or PAG output
A delay is built in when the C.SQ or PAG code is sent out.
The initial setting is 450 ms, and can be changed to 750, 850 or 1000
ms.
● Changing the delay time
1. Turn PAG or C.SQ mode on,
2. To change delay time press the F key momentarily and then press the
CALL key within the 10 seconds.
3. Display the desired delay time with the tuning control or the UP/DN
key on the microphone.
The displayed delay time takes effect immediately. If any other key is
pressed or if, after 10 seconds, no key has been pressed, the delay
time setting mode is terminated.
