30

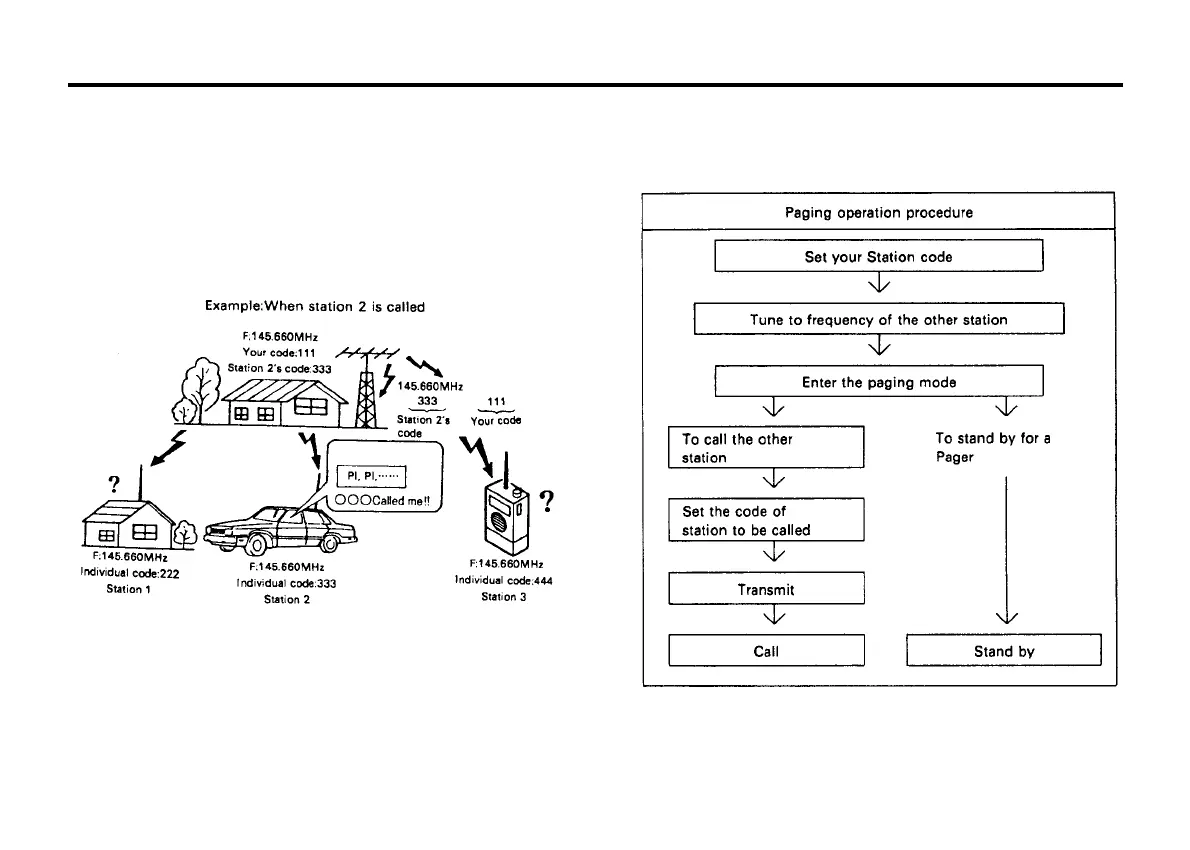

5-10 PAGING
The paging function is available when the optional DTMF unit (DTF147)
is installed.
The paging function is useful to call all station a group, a specific station,
or wait for a call from another station by using DTMF (Dual Tone Multi
Frequency) signaling.
The common group code and individual codes should be determined in
advance. These codes should be from 000 to 999 (3digits). Unlike C.SQ
the code of the calling station is displayed on the receiver, so the
receiver can identify the calling station.
When called by a local station, the individual code of the calling station is
displayed. when called by a group code, that group code is displayed.
