26
MIDI OPERATION
1. While receiving and sending MIDI data, all MIDI scenes and channels that are currently running
will automatically paused if there is no response within 10 minutes.
2. While receiving and sending a file dump, the controller will automatically search for or send to
Device ID of 55H(85), a file named DC2448 with an extension of “BIN(SPACE)”.
3. File dump allows this controller to send its MIDI data to the next unit or to other MIDI devices.

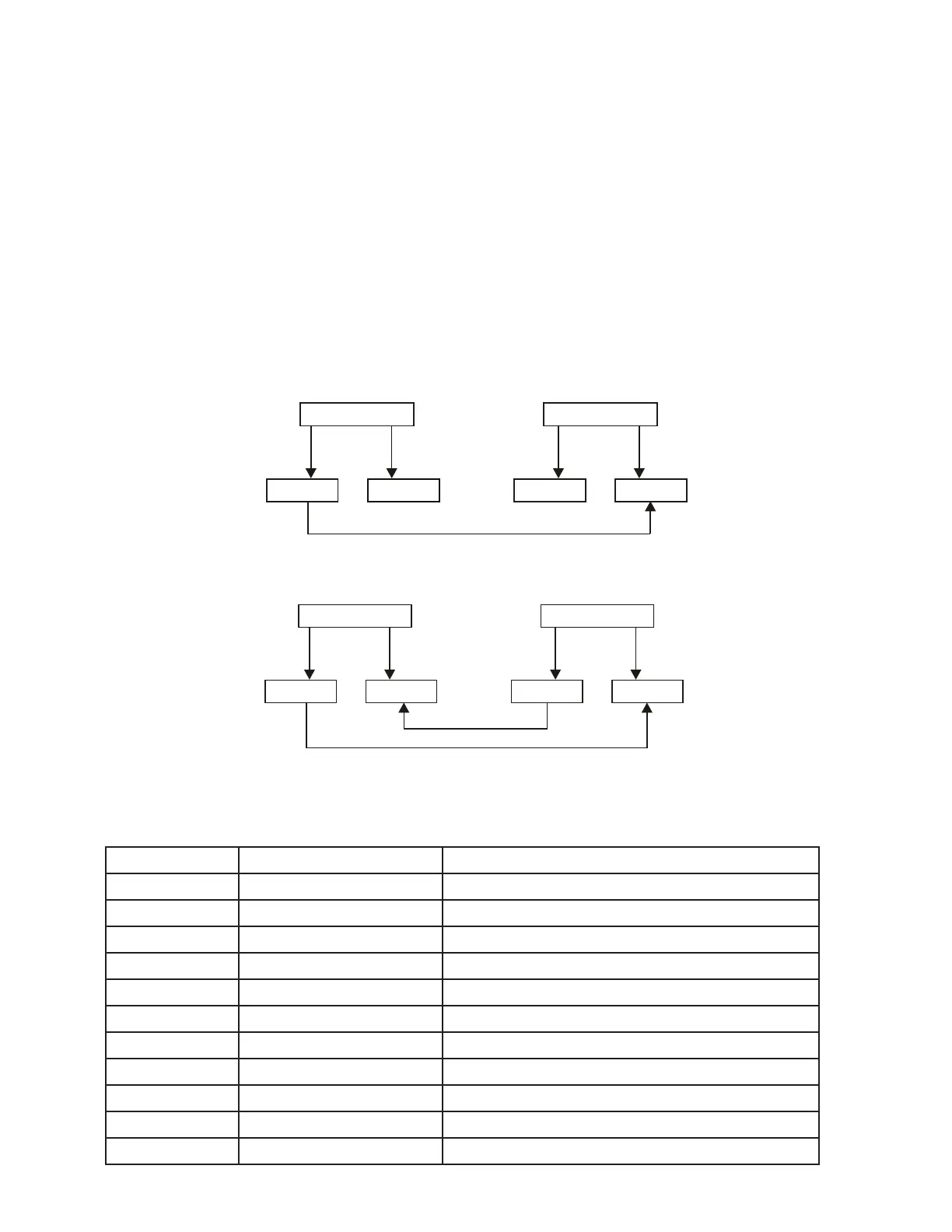

4. There are two types of file dump mode: Open Loop Mode and Close Loop Mode. Both are
decribed in the following diagrams:
6. IMPLEMENTATION
5. The controller will send and receive Note On and Note Off data via the Flash buttons, as detailed
in the table below:
Note No. Velocity Function
22 - 69 Program Master Turn on or off program 1-48
70 - 117 Channel Intensity Active channel 1-48
118 Full On
119 Dark
120 Hold
121 Turn on of off Audio
122 CHNS SCENES
123 Double Preset Mode
124 Single Preset Mode
125 Step
126 Black Out
CONTROLLER RECEIVER
MIDI OUT MIDI IN MIDI OUT MIDI IN
CONTROLLER RECEIVER
MIDI OUT MIDI IN MIDI OUT MIDI IN
Close Loop Mode
Open Loop Mode
