INSTALLATION
16
[9]

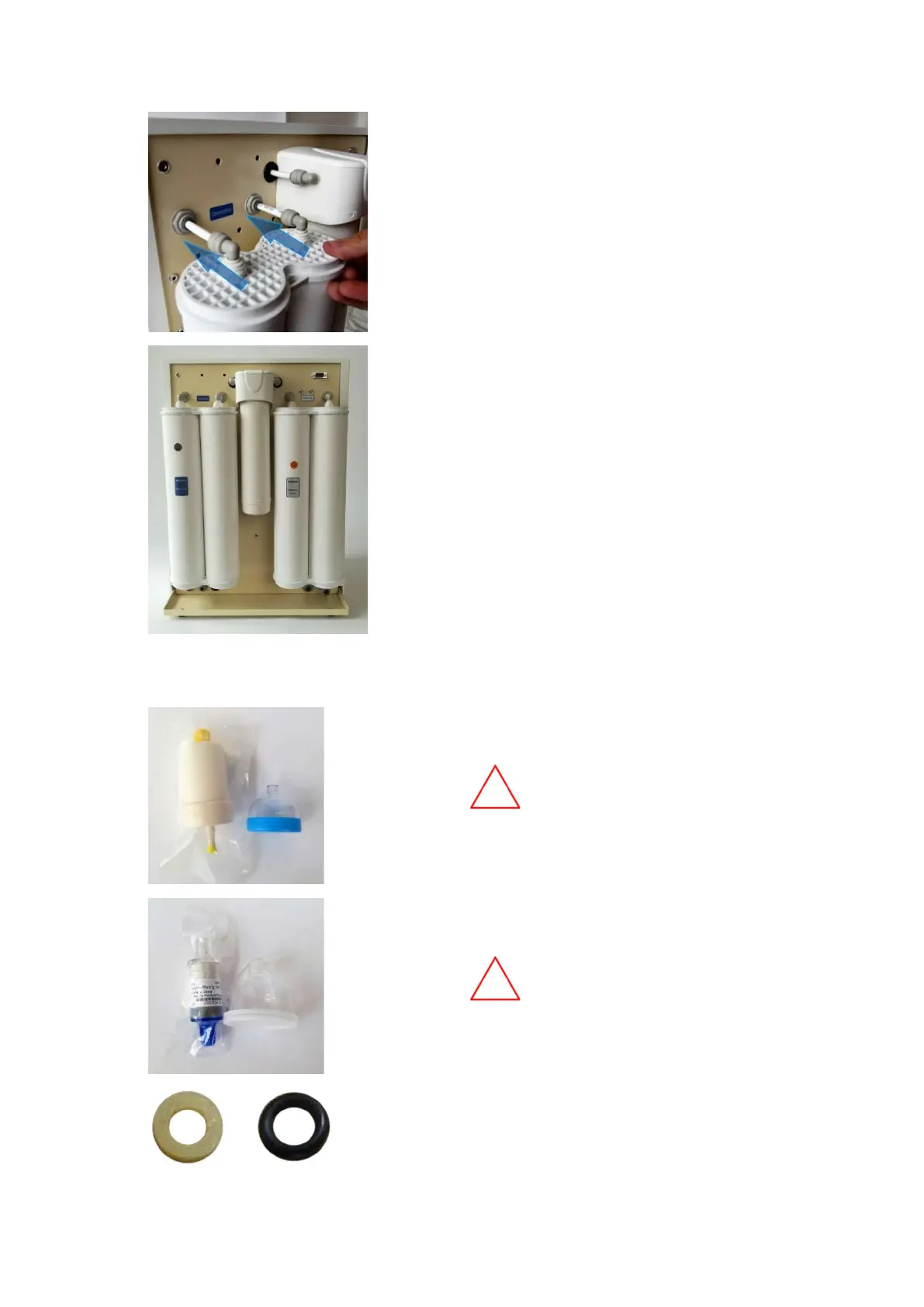

Place connector tubes in slots.
Make sure that connectors are properly attached
[10]
Repeat the same installation process with polishing
module.
Rear panel after installation of deionization and
polishing module is shown in picture on the left
Dispense filter mounting
[1]
Ultrafilter packaging (part no. 10120)
For Bio configuration only
[2]
0.22 m dispense filter packaging
(part no. 10012)
For HPLC and Trace configuration
only
[3]
[4]
O-rings:
1 – yellow for ultrafilter
2 – black for 0.22 m dispense filter
