INSTALLATION
20

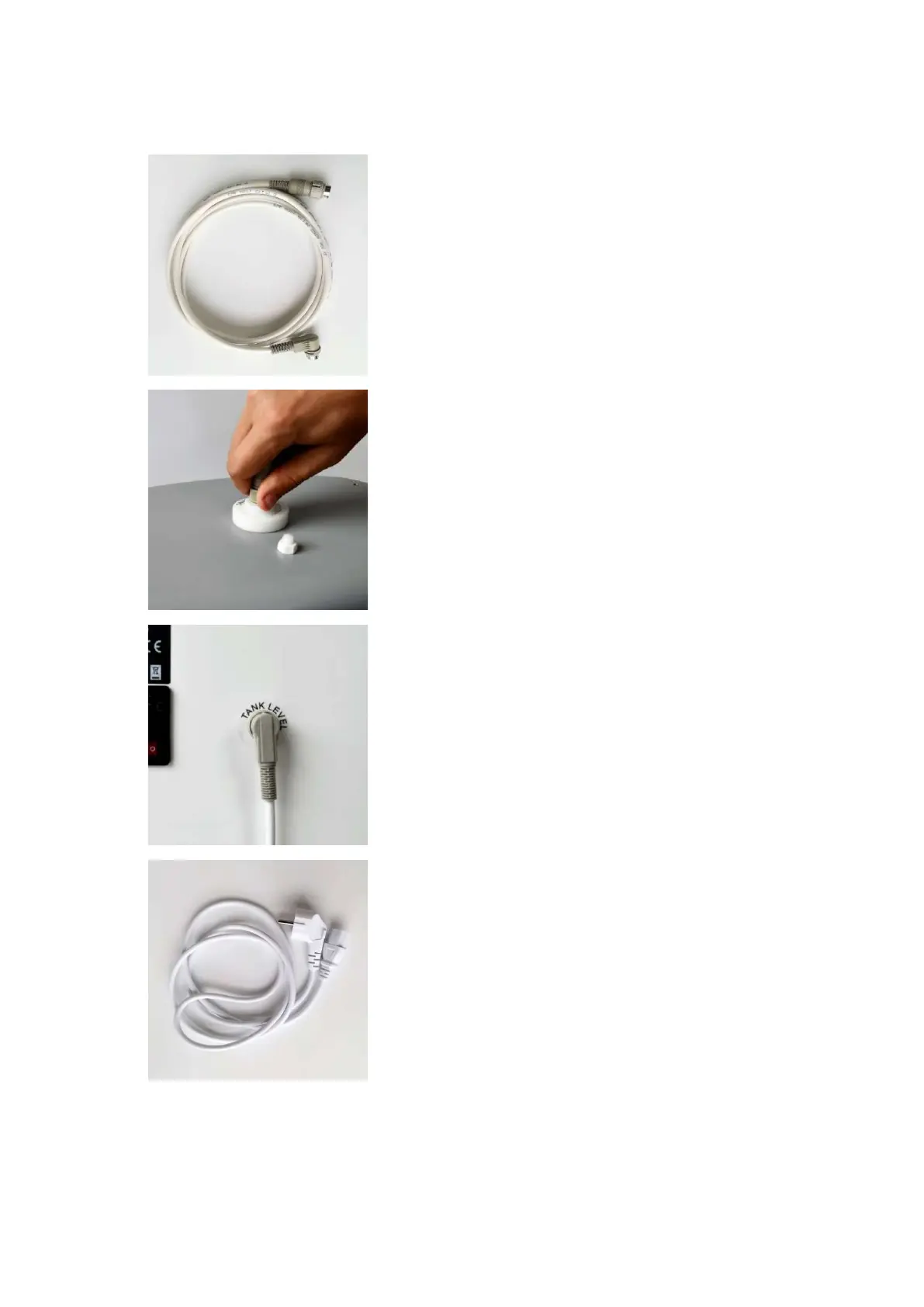

Connection to tank cable
[1]
Locate the tank cable
[2]
Connect the tank cable to the “TANK LEVEL”
connector that is located on the top of the tank
[3]
Connect the tank cable to the “TANK LEVEL”
connector that is located on the side panel of the
system
[4]
Locate the power cable
