Adrona Crystal EX Trace - Connection of tubing

INSTALLATION
18
Connection of tubing
[1]

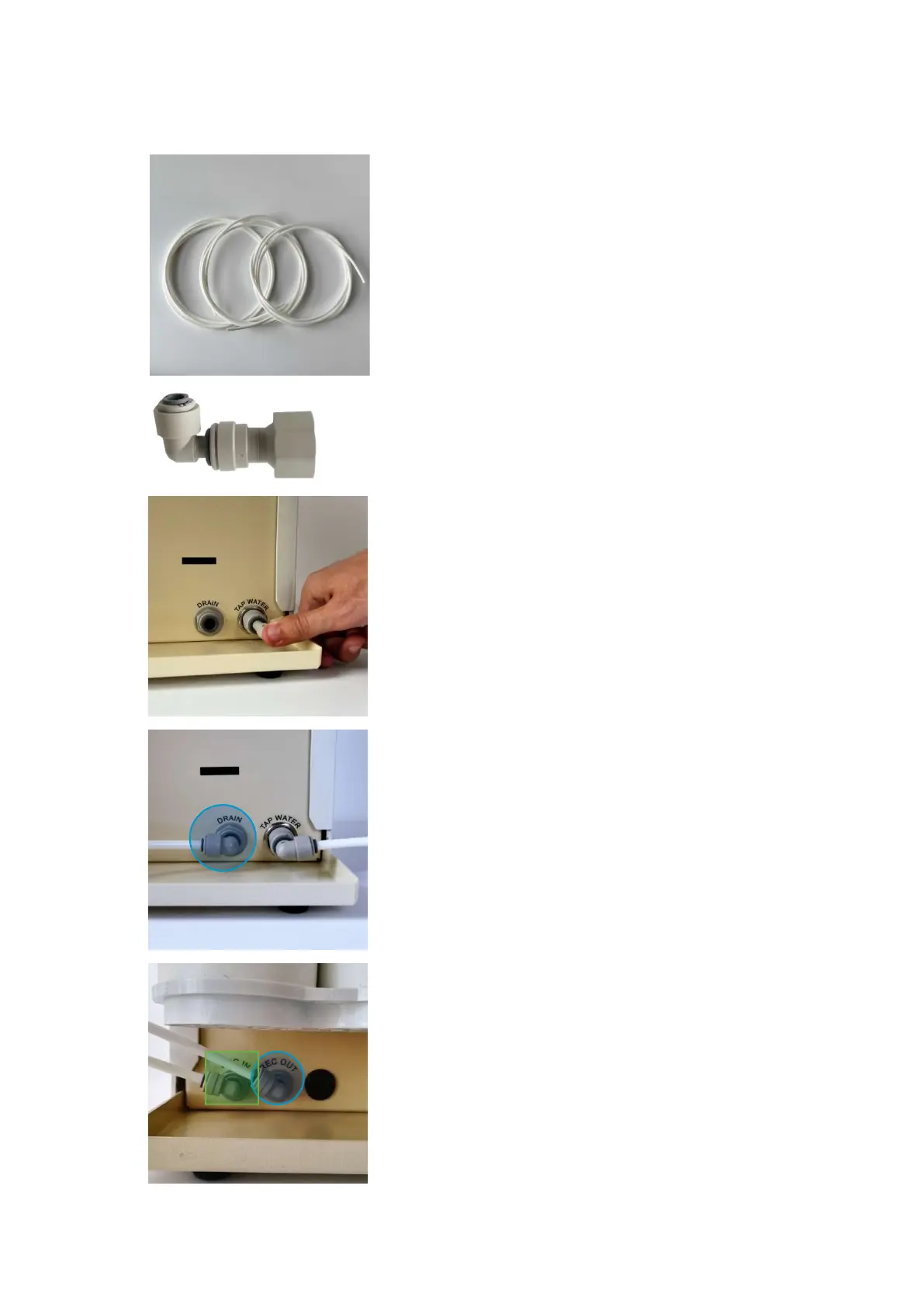

There are overall four 1/4” JG tubes in the set
[2]
Locate the 1/2” NPT thread adapter:
- Connect one 1/4” JG tube to the 1/2” NPT
thread adapter;
- Connect it to the feedwater source
[3]
Connect the feed water to the 3/8”–1/4” JG stem
elbow connection marked TAP WATER
[4]
Connect the 3/8”–1/4” JG stem elbow
connection marked DRAIN to the local drain
using 1/4” JG plastic tube
[5]
The next step is tank connection to the system:
1. locate REC IN and REC OUT connections
on the Crystal EX lower left side of the
rear panel [pic. 5];
2. locate REC IN and REC OUT connections
on the tank’s rear panel [pic. 6];
