MX2800 M13 Multiplexer User Manual Installation and Operation, Section 2
61200290L1-1G 2-11
The MX2800 Main Menu consists of the following sections:
Status
Provides information on the current state of the DS3, power supplies, system, DS2s, and T1/E1 lines. See
Figure 2-6 for an illustration. Refer to Section 4, Status for more detailed information.

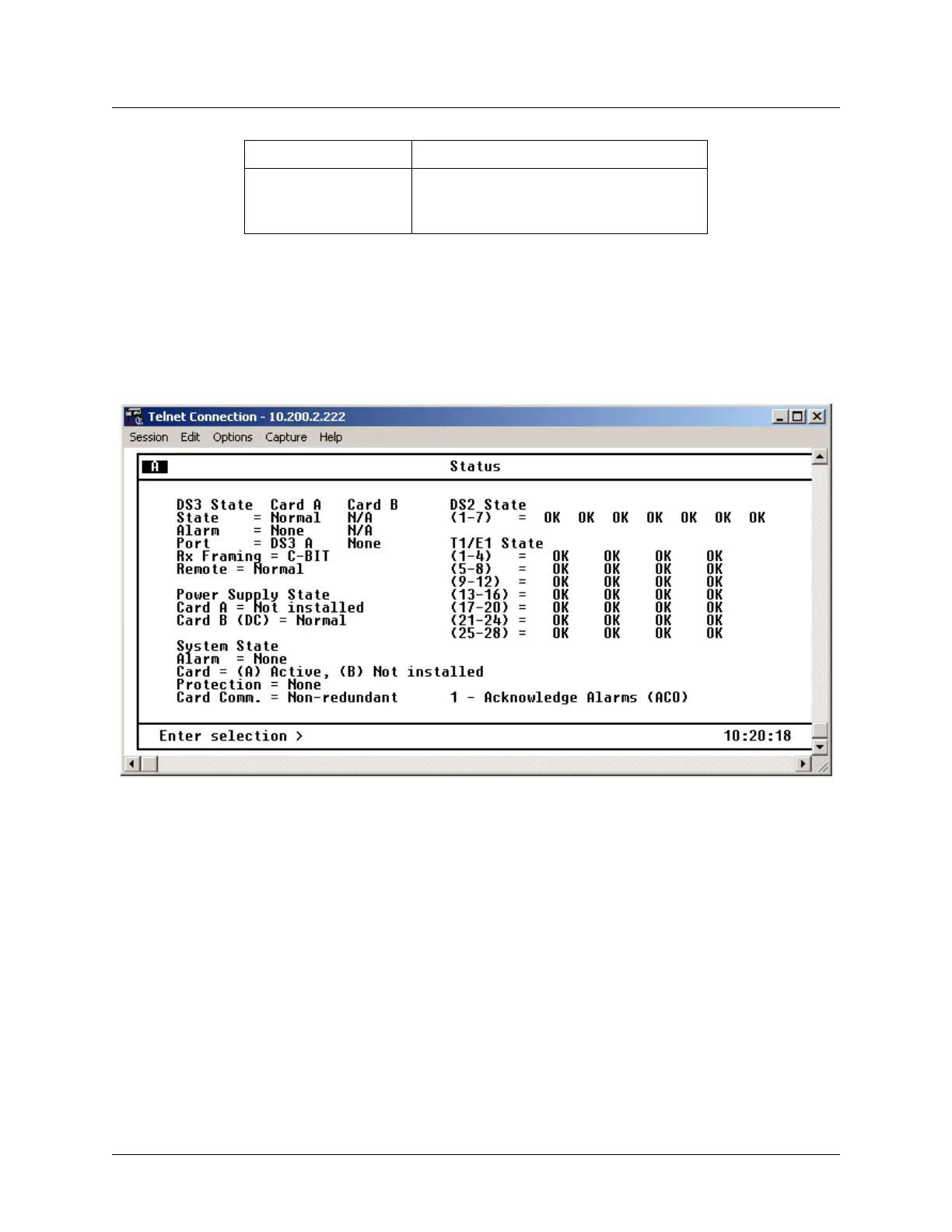

Figure 2-6. Status Menu
Statistics
Provides detailed statistical information (both current and historical) for the DS3, DS2s, and T1/E1 lines.
See Figure 2-7 on page 2-12 for the Statistics
menu. Refer to Statistics on page 5-1 for more detailed
information.
scroll up and down
within the same screen
the up and down arrow keys. Additional
screens are available when ∧ or ∨ is dis-
played in the top portion of the menu.
To... Press...
