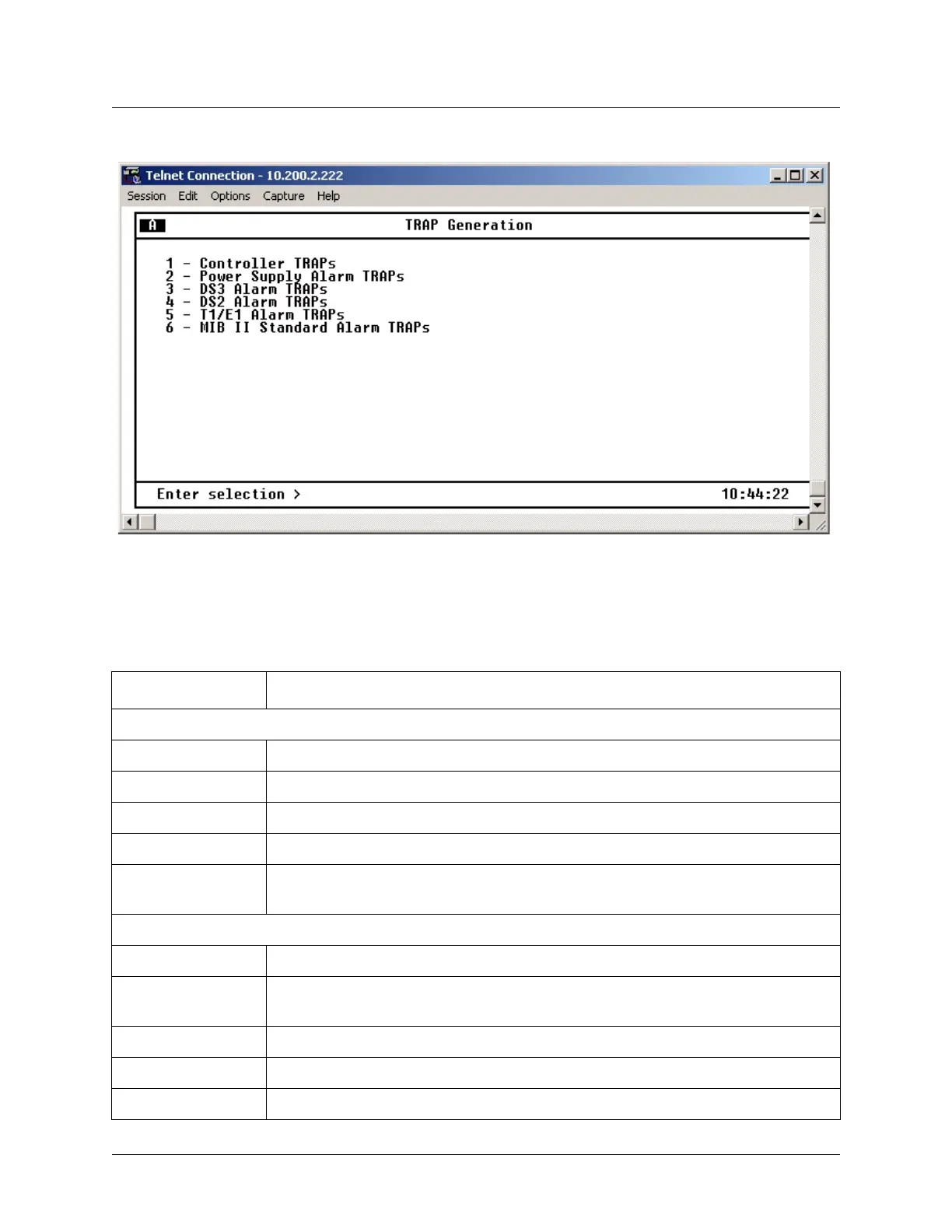

Figure 3-14. Trap Generation Menu
Table 3-3 provides trap descriptions.
Table 3-3. Trap Descriptions
Trap If enabled, the unit issues a trap when...
Controller Traps
Protection Switch The controller cards switch.
Card Removed A controller card has been removed.
Card Failure A controller card has failed.
Communication Fail The controller cards can no longer communicate with each other.
Max Switches The Max Switch Threshold is reached. For more information, refer to Maximum Switch
Threshold on page 3-6.
Power Supply Alarm Traps
Card Removed The power supply card has been removed.
Malfunction The power supply card is no longer working and the unit has switched to the backup
power supply or battery backup.
Card Failure The power supply card has failed.
Power Low The power supply’s output level is abnormally low.
Bat. Backup Act Battery charger has lost its AC power source.
