61200290L1-1G 5-1
SECTION 5, STATISTICS
Section 5
Statistics
1. INTRODUCTION
To access Statistics menu, select Statistics from the Main Menu. See Figure 5-1. Alarm information and
performance parameters are available for both the near and far ends of the network. Information is also
given for the individual DS2s and T1/E1 lines.
2. VIEWING STATISTICAL INFORMATION
Statistical information is given in screens based on these time periods:
• The current 15-minute interval
• A 24-hour history (divided into 96 15-minute intervals)
• The totals for the previous 24 hours
• A cumulative alarm count is given (this count continues indefinitely until reset by the user)

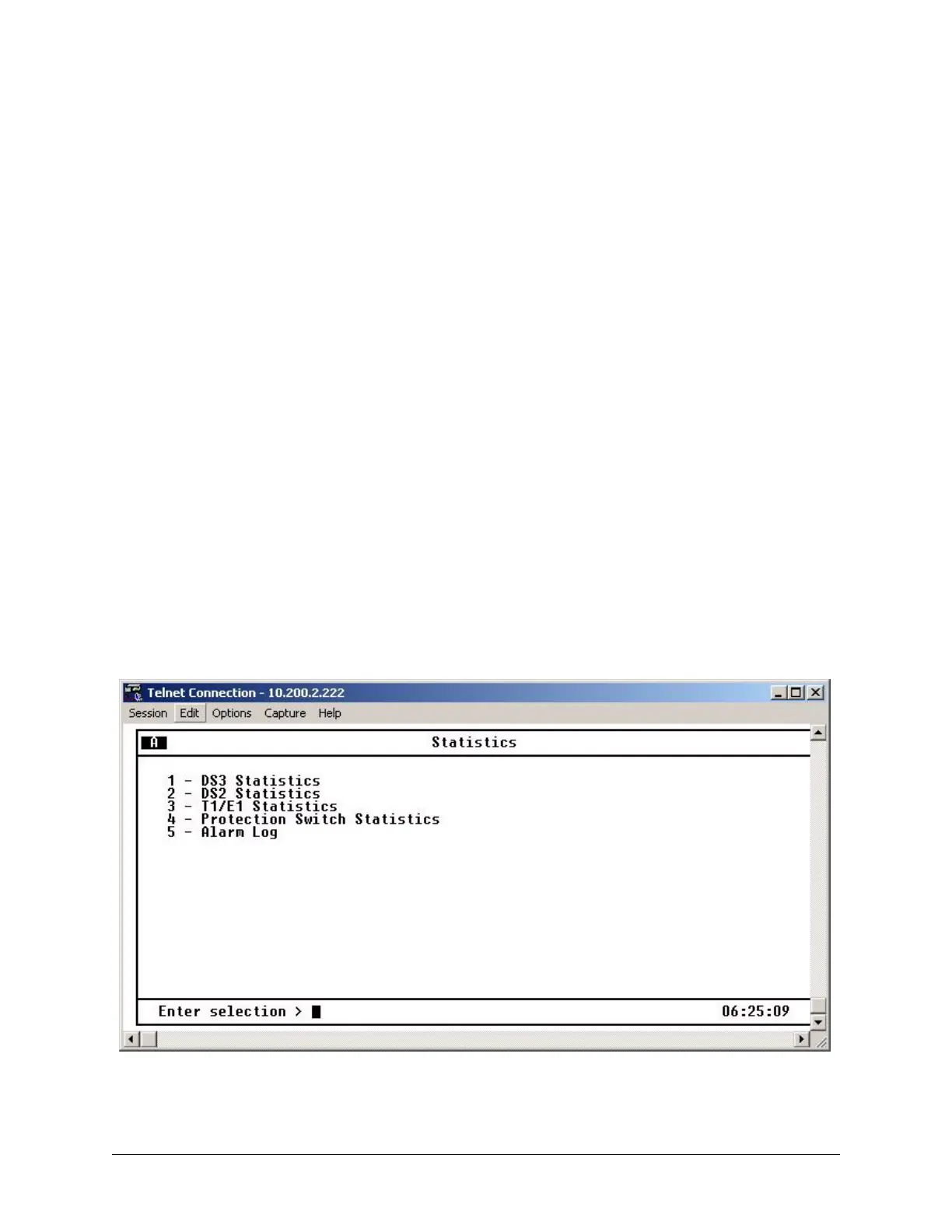

Figure 5-1. Statistics Menu
