3-44 61200290L1-1G
Section 3, Configuration MX2800 M13 Multiplexer User Manual
Once the upload is complete, the standby card will self-reset and begin running the new code. However,
the active card does not reset automatically. The unit must be reset through the Immediate Reset or
Sched-
ule Reset Time functions.
6. SAVE CONFIGURATION AND ALARM LOG
Commits the current configuration and alarm log to nonvolatile memory. If this option is not selected after
making changes to the configuration, the unit reverts to its previous configuration when powered down.
When the selection is made, a response is displayed on the Save Configuration and Alarm menu. See
Figure 3-18 on page 3-44.

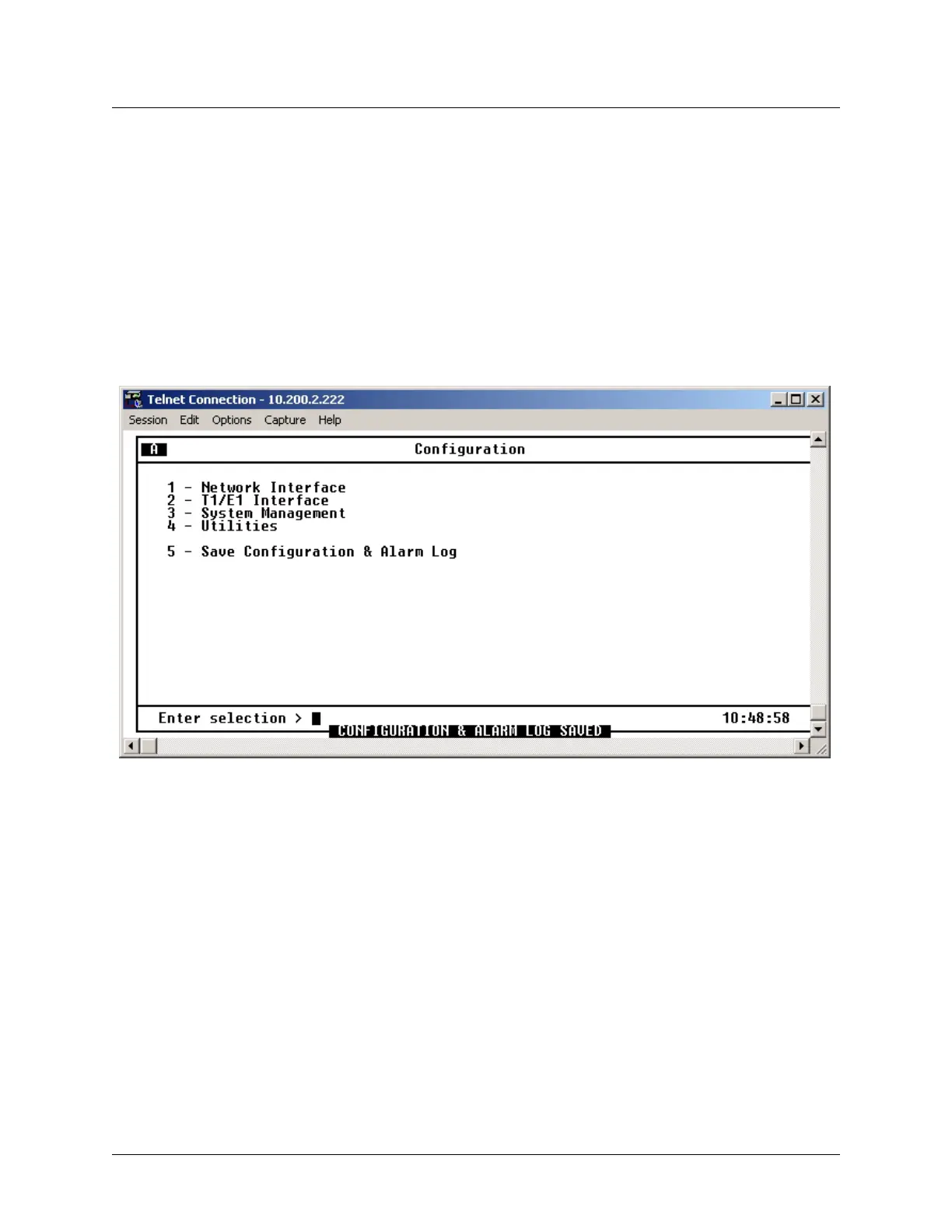

Figure 3-18. Indication of a Saved Configuration and Alarm Log
